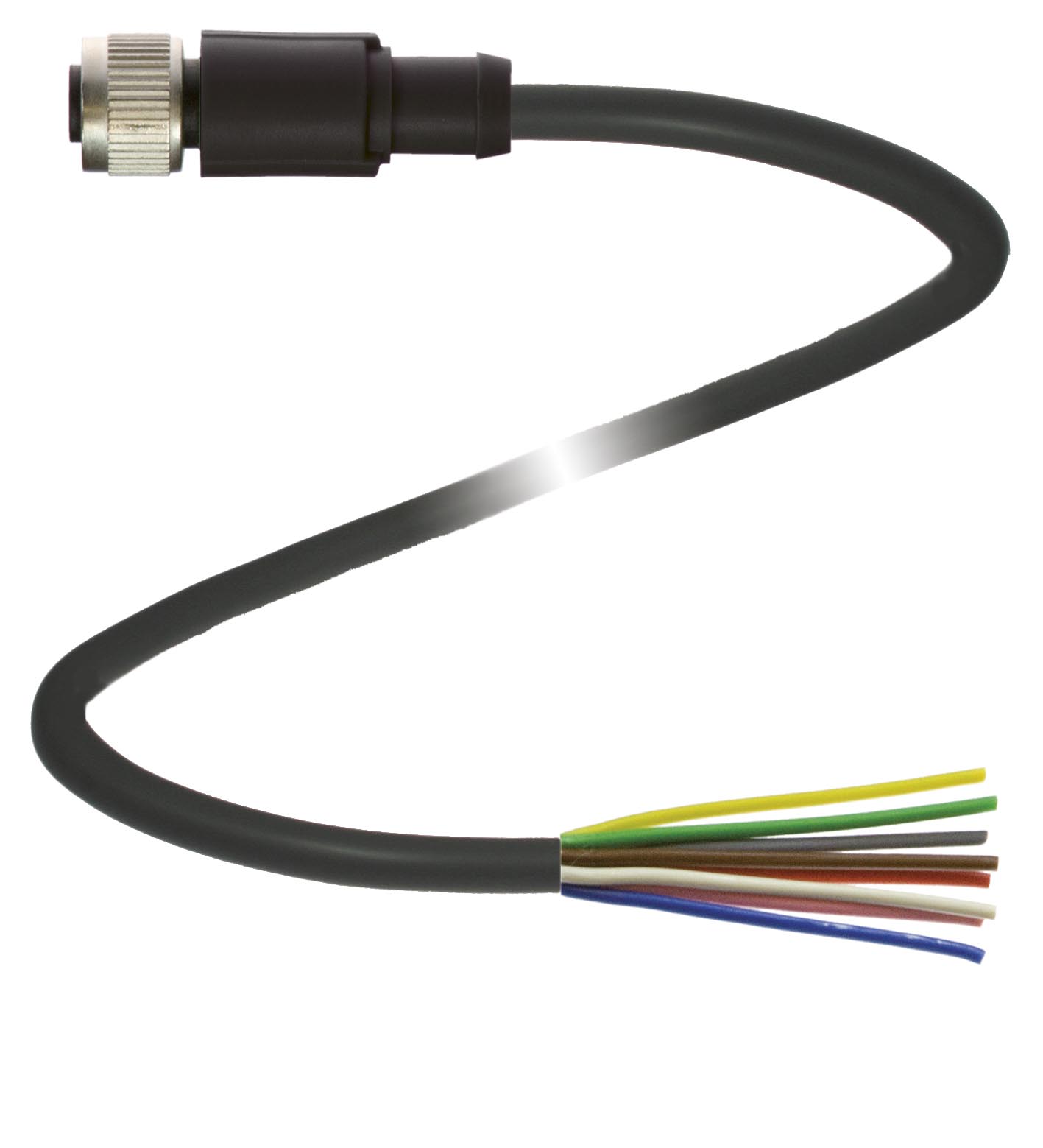

V19-G-BK2M-PUR-IEC

Female connector. Female cordset, M12, 8-pin, PUR-cable. Number of pins: 8. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 30 V...

Female connector. Female cordset, M12, 8-pin, PUR-cable. Number of pins: 8. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 30 V DC. Test voltage: > 1500 V eff AC. Operating current: max. 2 A. Volume resistance: < 5 mΩ. Ambient temperature: -25 ... 90 °C (-13 ... 194 °F) cable, movable installation: -5 ... 80 °C (23 ... 176 °F),cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Pollution degree: 3. Degree of protection: IP65 / IP68 / IP69K. Material: . ContactsCuZnContact surfaceNi/AuBodyTPU, blackCablePURSlotted nutZinc diecast, nickel-platedSealNBRCore insulationPP: . Contacts: CuZn. Contact surface: Ni/Au. Body: TPU, black. Cable: PUR. Slotted nut: Zinc diecast, nickel-plated. Seal: NBR. Core insulation: PP. Cable: extra-fine wire, flexible. Sheath diameter∅ 5.9 mmBending radius> 50 mmColordark grey (RAL 7021)Cores8 x 0.25 mm2 , 24 AWGConductor construction32 x 0.1 mm ∅LengthL2 m: . Sheath diameter: ∅ 5.9 mm. Bending radius: > 50 mm. Color: dark grey (RAL 7021). Cores: 8 x 0.25 mm2 , 24 AWG. Conductor construction: 32 x 0.1 mm ∅. Length: 2 m. Mass: 102.7 g

Brand	Pepperl Fuchs
Lifecycle status	active
