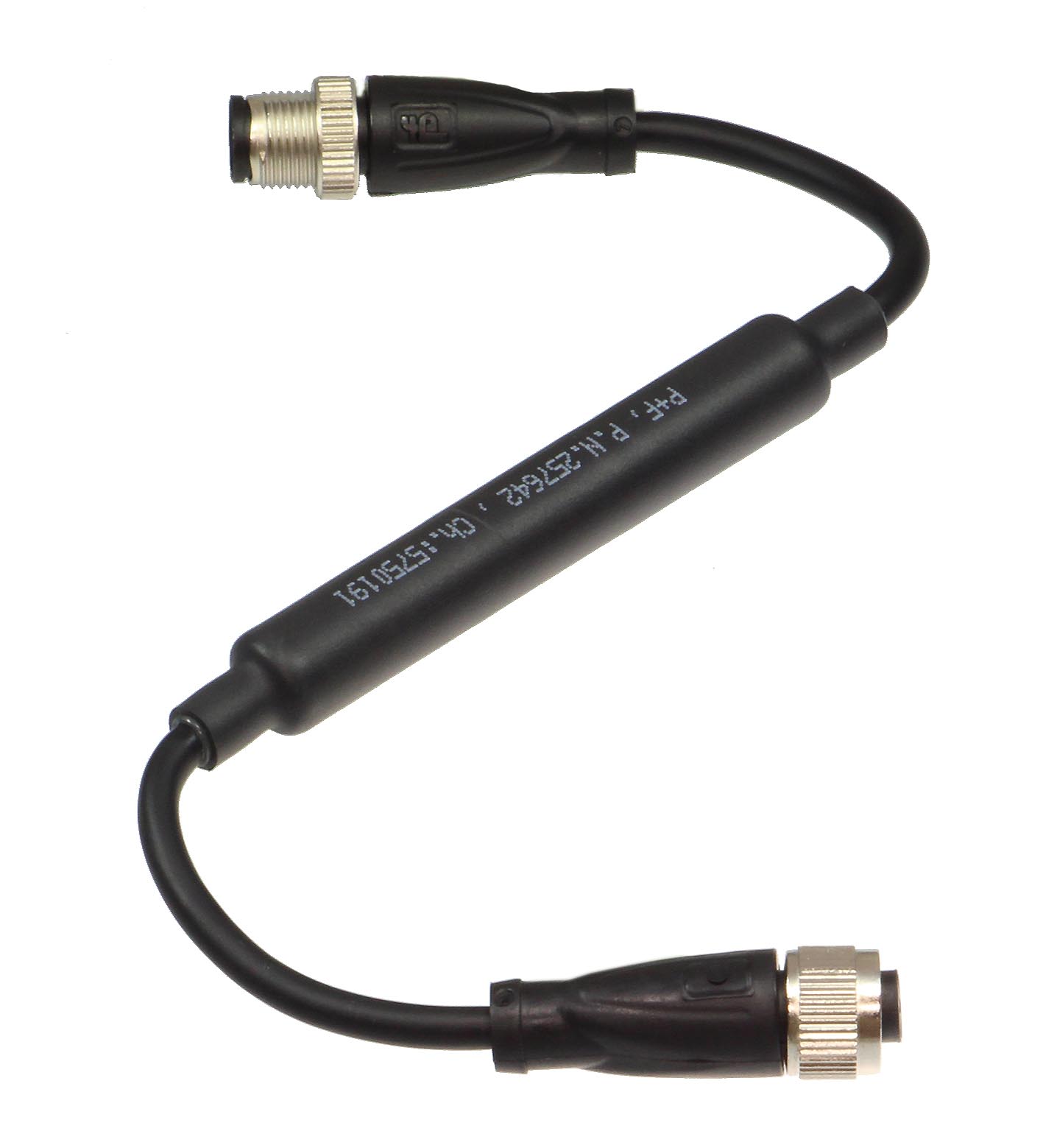

V19-G-EMV-BK0,3M-PVC-V19-G

Connection cable. Double-ended cordset, M12 to M12, with EMC filter, 8-pin, PVC cable, Knurled nut suitable for tool assembly, Immunity to vibration, with mechanical latching, Flame resistant cable, H...

Connection cable. Double-ended cordset, M12 to M12, with EMC filter, 8-pin, PVC cable, Knurled nut suitable for tool assembly, Immunity to vibration, with mechanical latching, Flame resistant cable, Halogen-free, Degree of protection IP67. Number of pins: 8. Connection 1: socket. Construction type 1: straight. Threading 1: M12. Connection 2: Male connector. Construction type 2: straight. Threading 2: M12. Operating voltage: 10 ... 32 V DC. Test voltage: 50 V. Operating current: max. 0.4 A. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F) cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F) cable, movable installation: -20 ... 80 °C (-4 ... 176 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePVCSlotted nutDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PVC. Slotted nut: Diecast zinc. Core insulation: PP. Cable: extra-fine wire, flexible. Sheath diameter∅ 4.8 mmBending radius> 10 x cable diameter, appropriate for conveyor chains > 5 x cable diameter, fixed installationColorblackCores8 x 0.14 mm2Conductor construction18 x 0.1 mm ∅LengthL0.25 m: . Sheath diameter: ∅ 4.8 mm. Bending radius: > 10 x cable diameter, appropriate for conveyor chains > 5 x cable diameter, fixed installation. Color: black. Cores: 8 x 0.14 mm2. Conductor construction: 18 x 0.1 mm ∅. Length: 0.25 m. Flammability: . Contact carrier94 HBHousingV-2 (Grip): . Contact carrier: 94 HB. Housing: V-2 (Grip)

Brand	Pepperl Fuchs
Lifecycle status	active
