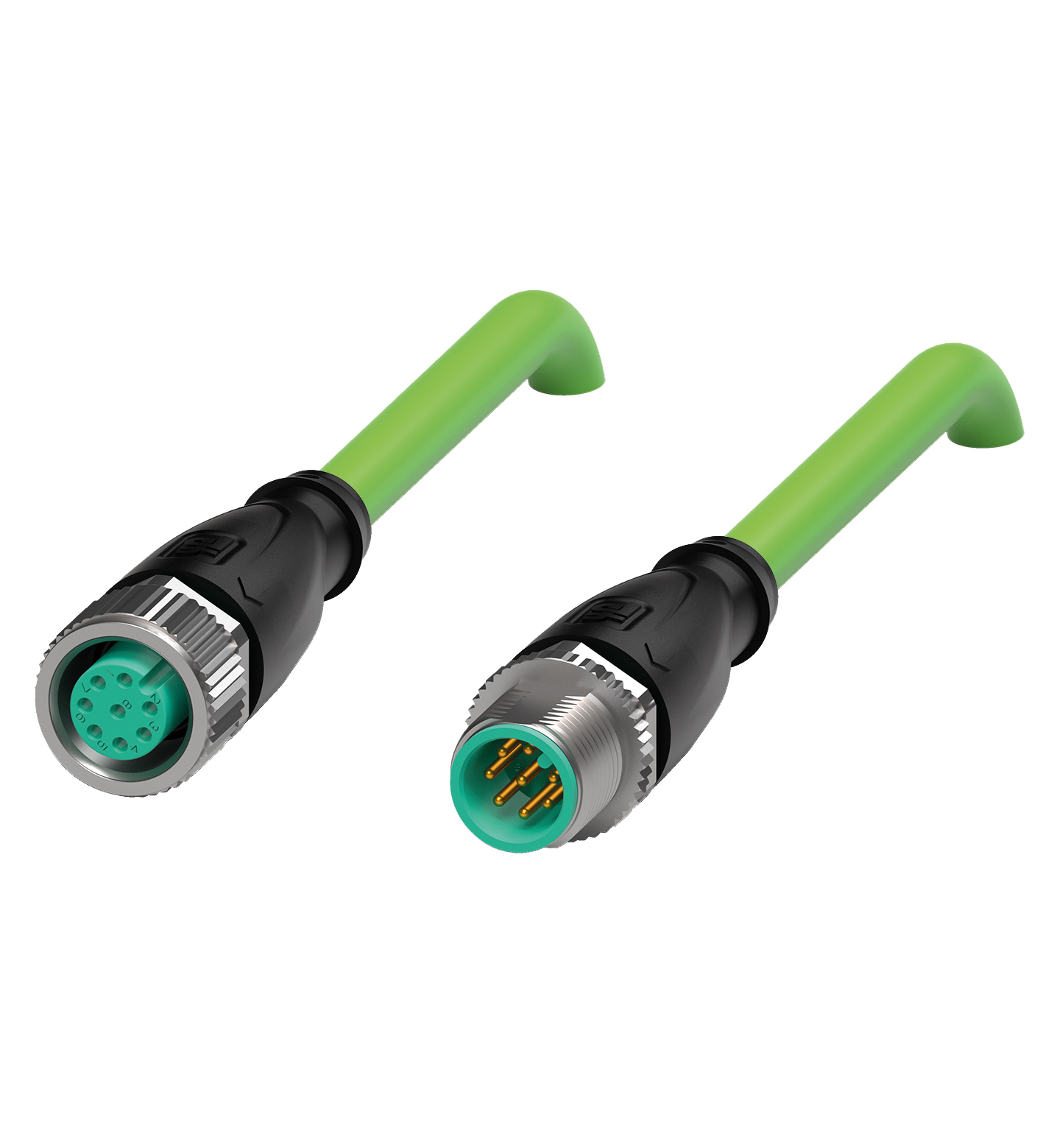

V19-G-GN1M-PUR-E2S-V19-G

Connection cable, Ethernet. Ethernet bus cable M12 socket straight to M12 plug straight A-coded, 8-pin, PUR cable green, Cat5, pairs shielded and overall shield. Connector 1: . ConnectionsocketConstru...

Connection cable, Ethernet. Ethernet bus cable M12 socket straight to M12 plug straight A-coded, 8-pin, PUR cable green, Cat5, pairs shielded and overall shield. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: A-coded. Operating voltage: max. 30 V AC/DC. Operating current: max. 1 A. Degree of protection: EN 60529. Fieldbus standard: IEEE 802.3an 10GBASE-T. Plug connection: connector M12 x 1 : IEC 61076-2-101. Component category: CAT5 (IEC 11801) , CAT5e (IEC 61156-6). Flammability: IEC 60332-1-2 , CMX. Halogen-free: IEC 60754-2. Ambient temperature: . Plug connector-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-40 ... 85 °C (-40 ... 185 °F)Cable, flexing-10 ... 60 °C (14 ... 140 °F): . Plug connector: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -40 ... 85 °C (-40 ... 185 °F). Cable, flexing: -10 ... 60 °C (14 ... 140 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to screw connection: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP66 / IP68 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6.2 mmBending radiusmax. 50 mm movable installationmax. 25 mm fixed installationSheath colorgreen (similar to RAL 6018)Number of cores8Core cross section0.14 mm2 / 26 AWGCores colorCore 1: white/blue Core 2: white/brown Core 3: brown Core 4: orange Core 5: white/green Core 6: white/orange Core 7: blue Core 8: greenCore construction7 x 0.404 mm ∅ twisted pairs , twisted pair shieldShieldtinned copper braiding, 60 % coverage twisted pair shield : aluminum-lined polyester foilLengthL1 mCable codeLi 02YSC 11Y 4 x 2 x 0,14 (AWG26/7): . Sheath diameter: 6.2 mm. Bending radius: max. 50 mm movable installationmax. 25 mm fixed installation. Sheath color: green (similar to RAL 6018). Number of cores: 8. Core cross section: 0.14 mm2 / 26 AWG. Cores color: Core 1: white/blue Core 2: white/brown Core 3: brown Core 4: orange Core 5: white/green Core 6: white/orange Core 7: blue Core 8: green. Core construction: 7 x 0.404 mm ∅ twisted pairs , twisted pair shield. Shield: tinned copper braiding, 60 % coverage twisted pair shield : aluminum-lined polyester foil. Length: 1 m. Cable code: Li 02YSC 11Y 4 x 2 x 0,14 (AWG26/7). Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPURCoresbare copper (Cu)Core insulationPEUV resistanceyesOil resistanceyesFlammabilityCMX: . Sheathing: PUR. Cores: bare copper (Cu). Core insulation: PE. UV resistance: yes. Oil resistance: yes. Flammability: CMX. Cable marking sleeve: 2x PUR transparent , fixed to cable

Brand	Pepperl Fuchs
Lifecycle status	active
