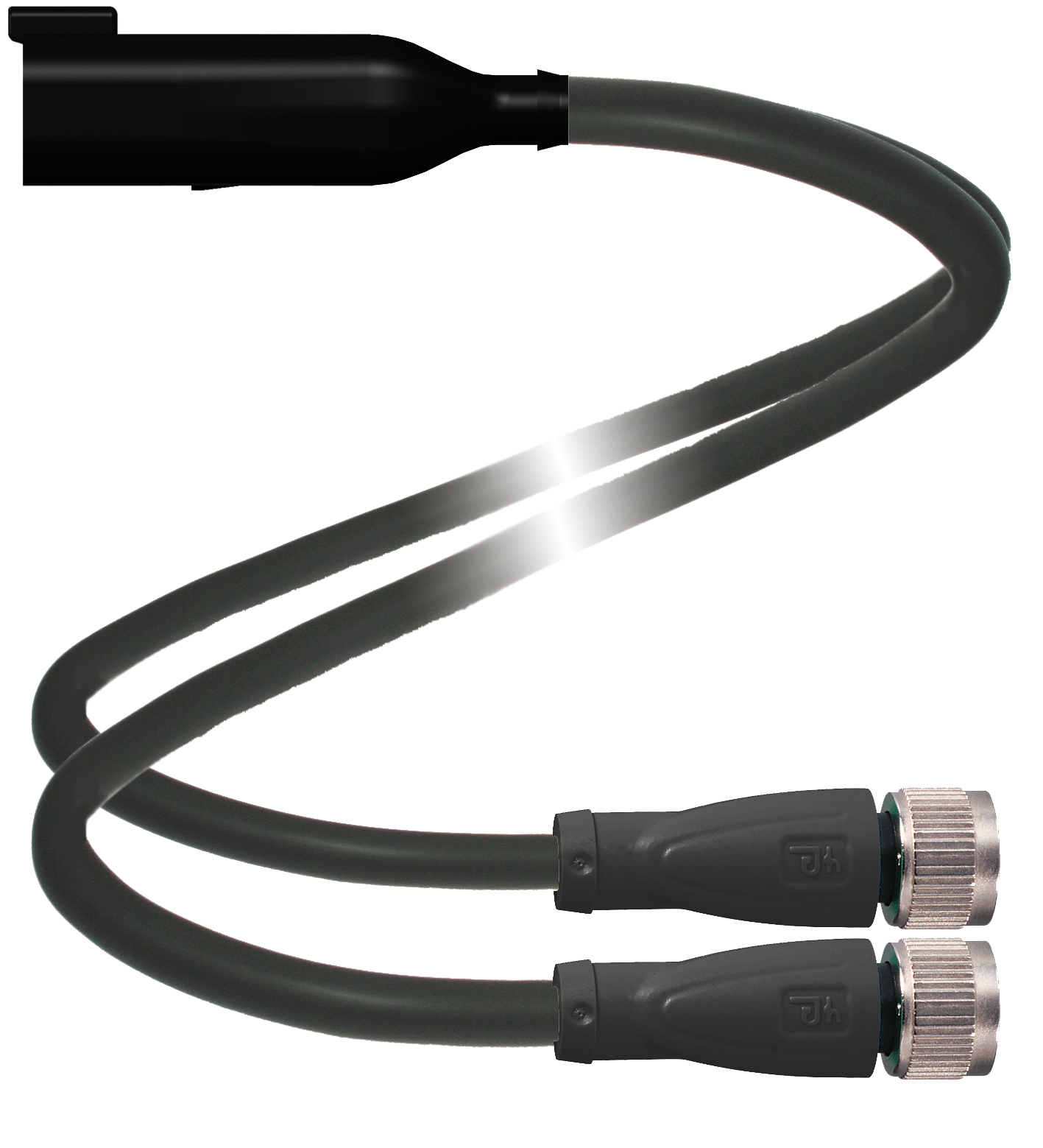

V19-G/V1-G-0,3M-T-DT6P-G-R2000

Y connection cable. Y connection cable Deutsch plug straight 6-pin to M12 socket 8-pin / M12 socket 4-pin, straight A-coded, 2x PUR cable black, drag chain suitable. Connector 1: . ConnectionsocketCon...

Y connection cable. Y connection cable Deutsch plug straight 6-pin to M12 socket 8-pin / M12 socket 4-pin, straight A-coded, 2x PUR cable black, drag chain suitable. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: A-coded. Connector 2: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 3: . ConnectionplugConstruction typeDeutsch connectorsStylestraightLockingsnap lockingNumber of pins6: . Connection: plug. Construction type: Deutsch connectors. Style: straight. Locking: snap locking. Number of pins: 6. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 1581; DIN EN 60332-2-2. Halogen-free: DIN VDE 0472-815 / DIN EN 50267-2-1. Ambient temperature: . Connector 1-40 ... 90 °C (-40 ... 194 °F)Connector 2-40 ... 90 °C (-40 ... 194 °F)Connector 3-40 ... 125 °C (-40 ... 257 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F): . Connector 1: -40 ... 90 °C (-40 ... 194 °F). Connector 2: -40 ... 90 °C (-40 ... 194 °F). Connector 3: -40 ... 125 °C (-40 ... 257 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Connector 1: . Tightening torque0.6 NmLoosening protectionavailableMating cyclesmin. 100Degree of protectionIP67 / IP68 / IP69: . Tightening torque: 0.6 Nm. Loosening protection: available. Mating cycles: min. 100. Degree of protection: IP67 / IP68 / IP69. Connector 2: . Tightening torque0.6 NmLoosening protectionavailableMating cyclesmin. 100Degree of protectionIP67 / IP68 / IP69: . Tightening torque: 0.6 Nm. Loosening protection: available. Mating cycles: min. 100. Degree of protection: IP67 / IP68 / IP69. Connector 3: . Loosening protectionavailableDegree of protectionIP68: . Loosening protection: available. Degree of protection: IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter4.8 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 50 N / 300 mmSheath colorblack (similar to RAL 7021)Number of cores4Core cross section0.5 mm2 / 0.34 mm2Cores colorCore 1: blue Core 2: brown Core 3: black Core 4: white Core 5: brown Core 6: whiteCore construction28 x 0.15 mm / 42 x 0.1 mm ∅LengthLL1 = 0.3 m L2 = 0.3 m: . Sheath diameter: 4.8 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 50 N / 300 mm. Sheath color: black (similar to RAL 7021). Number of cores: 4. Core cross section: 0.5 mm2 / 0.34 mm2. Cores color: Core 1: blue Core 2: brown Core 3: black Core 4: white Core 5: brown Core 6: white. Core construction: 28 x 0.15 mm / 42 x 0.1 mm ∅. Length: L1 = 0.3 m L2 = 0.3 m. Drag chain suitability: . Drag chain cyclesmin. 2000000Motion velocitymax. 3 m/sTraverse distancemax. 5 mAccelerationmax. 5 m/s2: . Drag chain cycles: min. 2000000. Motion velocity: max. 3 m/s. Traverse distance: max. 5 m. Acceleration: max. 5 m/s2. Mass: 63.95 g. Halogen-free: yes. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfaceAuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: Au. Flammability: V-2. Connector 2: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfaceAuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: Au. Flammability: V-2. Connector 3: . BodyPA, blackContact surfaceNiFlammabilityV-2: . Body: PA, black. Contact surface: Ni. Flammability: V-2. Cable: . SheathingPUR based on polyetherCore insulationPPUV resistanceyesChemical resistancegoodOil resistanceyesCooling lubricant resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Core insulation: PP. UV resistance: yes. Chemical resistance: good. Oil resistance: yes. Cooling lubricant resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2

Brand	Pepperl Fuchs
Lifecycle status	active
