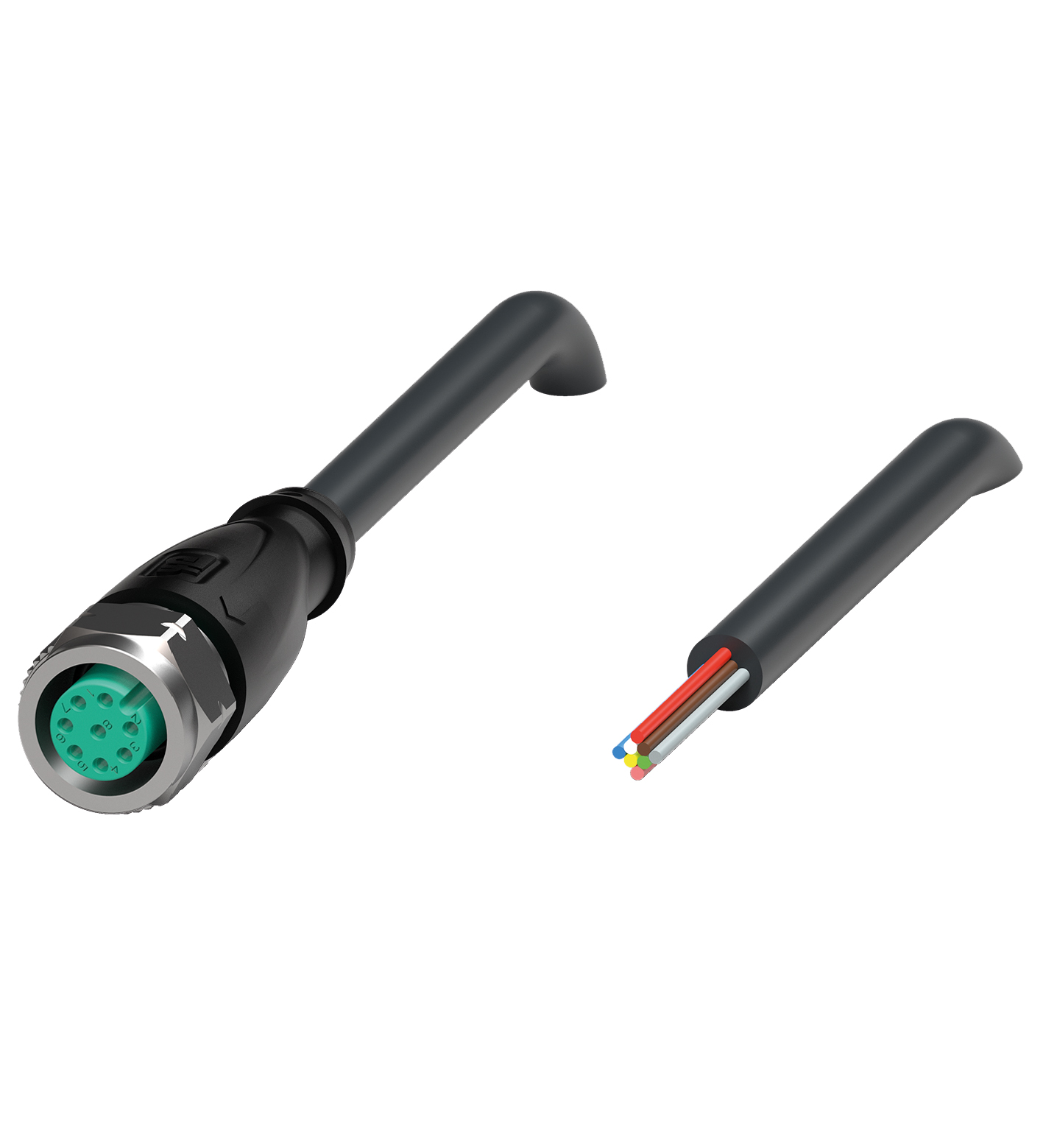

V19-GV4A-BK50M-PVC-U

Female cordset. Female cordset single-ended M12 straight stainless steel 1.4404, A-coded, 8-pin, PVC cable black, UL approved. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingsc...

Female cordset. Female cordset single-ended M12 straight stainless steel 1.4404, A-coded, 8-pin, PVC cable black, UL approved. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 30 V AC/DC. Operating current: max. 2 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 758 / 1581 , IEC 60332-1-2. Oil resistance: DIN EN 60811-2-1. UL approval: AWM STYLE 2464 AWM I A/B 80°C 300V FT1 (cable). UL File Number: E231213. Ambient temperature: . Plug connector-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-20 ... 80 °C (-4 ... 176 °F): . Plug connector: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -20 ... 80 °C (-4 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionintegratedTool installationhexagon nut SW = 14 mmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP68 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter6.3 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 50 N / 300 mmSheath colorblack (similar to RAL 9005)Number of cores8Core cross section0.34 mm2Cores colorCore 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: blue Core 8: redCore construction42 x 0.1 mm ∅LengthL50 mCable codeLi Y YM 8 x 0,34: . Sheath diameter: 6.3 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 50 N / 300 mm. Sheath color: black (similar to RAL 9005). Number of cores: 8. Core cross section: 0.34 mm2. Cores color: Core 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: blue Core 8: red. Core construction: 42 x 0.1 mm ∅. Length: 50 m. Cable code: Li Y YM 8 x 0,34. Mass: 3130 g. Plug connector: . Screw connectionStainless steel 1.4404 / AISI 316LBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Stainless steel 1.4404 / AISI 316L. Body: TPU, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPVCCoresbare copper (Cu)Core insulationPVCOil resistanceyesFlammabilityFT1: . Sheathing: PVC. Cores: bare copper (Cu). Core insulation: PVC. Oil resistance: yes. Flammability: FT1

Brand	Pepperl Fuchs
Lifecycle status	active
