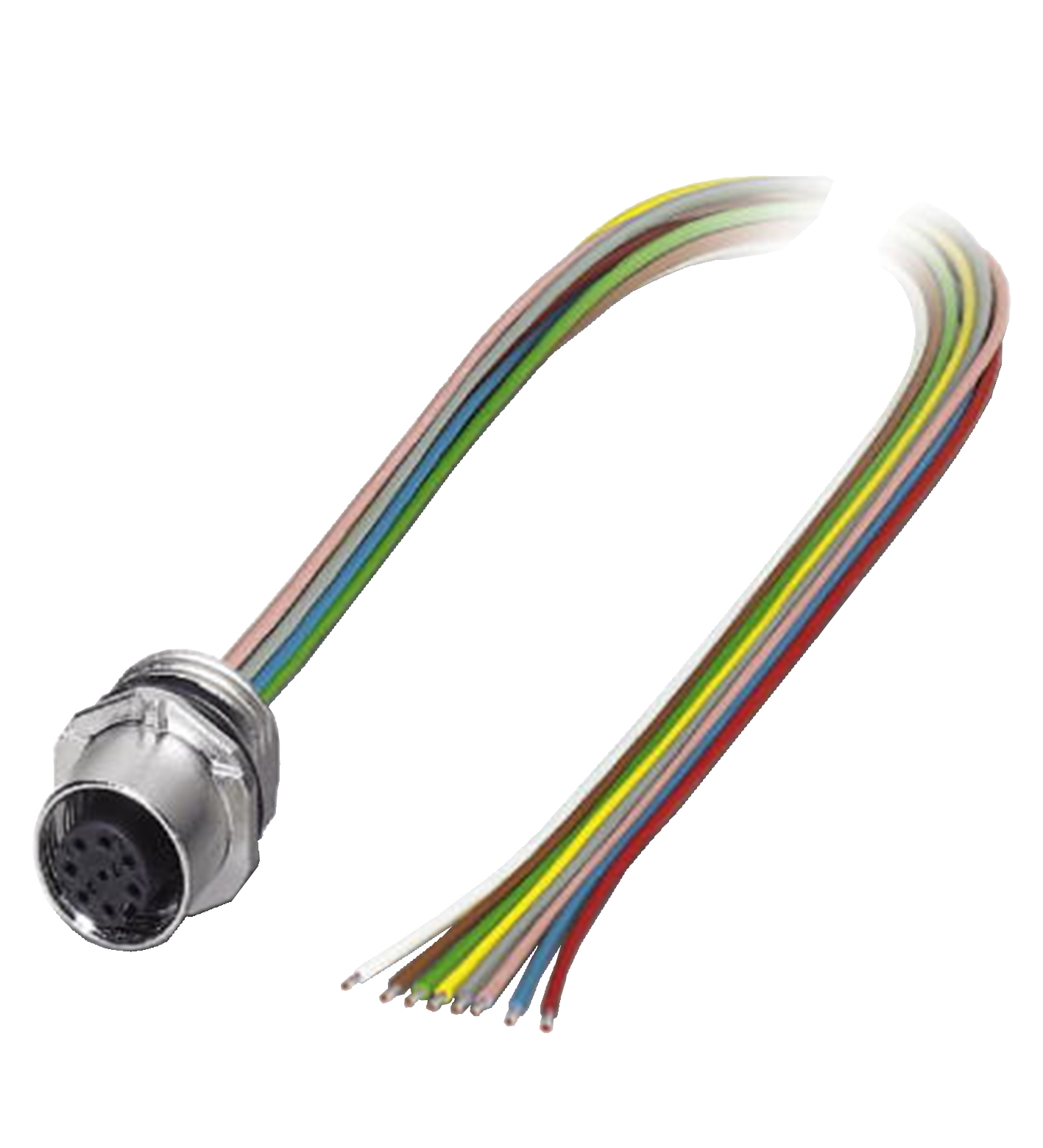

V19-M16-500

Receptacles. Receptacles, M12/M16, 8-pin. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded: . Connection: socket. Construction type:...

Receptacles. Receptacles, M12/M16, 8-pin. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 30 V AC/DC. Test voltage: > 2000 V eff AC. Operating current: max. 2 A. Volume resistance: < 3 mΩ. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 94. UL File Number: E191152. Ambient temperature: . Cable, fixed installation-40 ... 85 °C (-40 ... 185 °F)Cable, flexing-25 ... 85 °C (-13 ... 185 °F): . Cable, fixed installation: -40 ... 85 °C (-40 ... 185 °F). Cable, flexing: -25 ... 85 °C (-13 ... 185 °F). Pollution degree: 3. Plug connector: . Mating cyclesmin. 100: . Mating cycles: min. 100. Degree of protection: IP65 / IP67. Connection: tinned copper single leads, ∅1.15 ±0.07 mm. Cable: . Number of cores8Core cross section0.25 mm2Cores colorCore 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: blue Core 8: redCore construction14 x 0.15 mm ∅ AWG 24LengthL500 mm: . Number of cores: 8. Core cross section: 0.25 mm2. Cores color: Core 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: blue Core 8: red. Core construction: 14 x 0.15 mm ∅ AWG 24. Length: 500 mm. Installation: Front mounting M16 , tightening torque: 3 ... 4 Nm. Mass: 25.82 g. Plug connector: . Screw connectionZinc diecast, nickel-platedSealFKMContact surfacegold plated (Au)FlammabilityV-0: . Screw connection: Zinc diecast, nickel-plated. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-0. Cable: . Core insulationTPE: . Core insulation: TPE. Scope of delivery: locknut not included

Brand	Pepperl Fuchs
Lifecycle status	active
