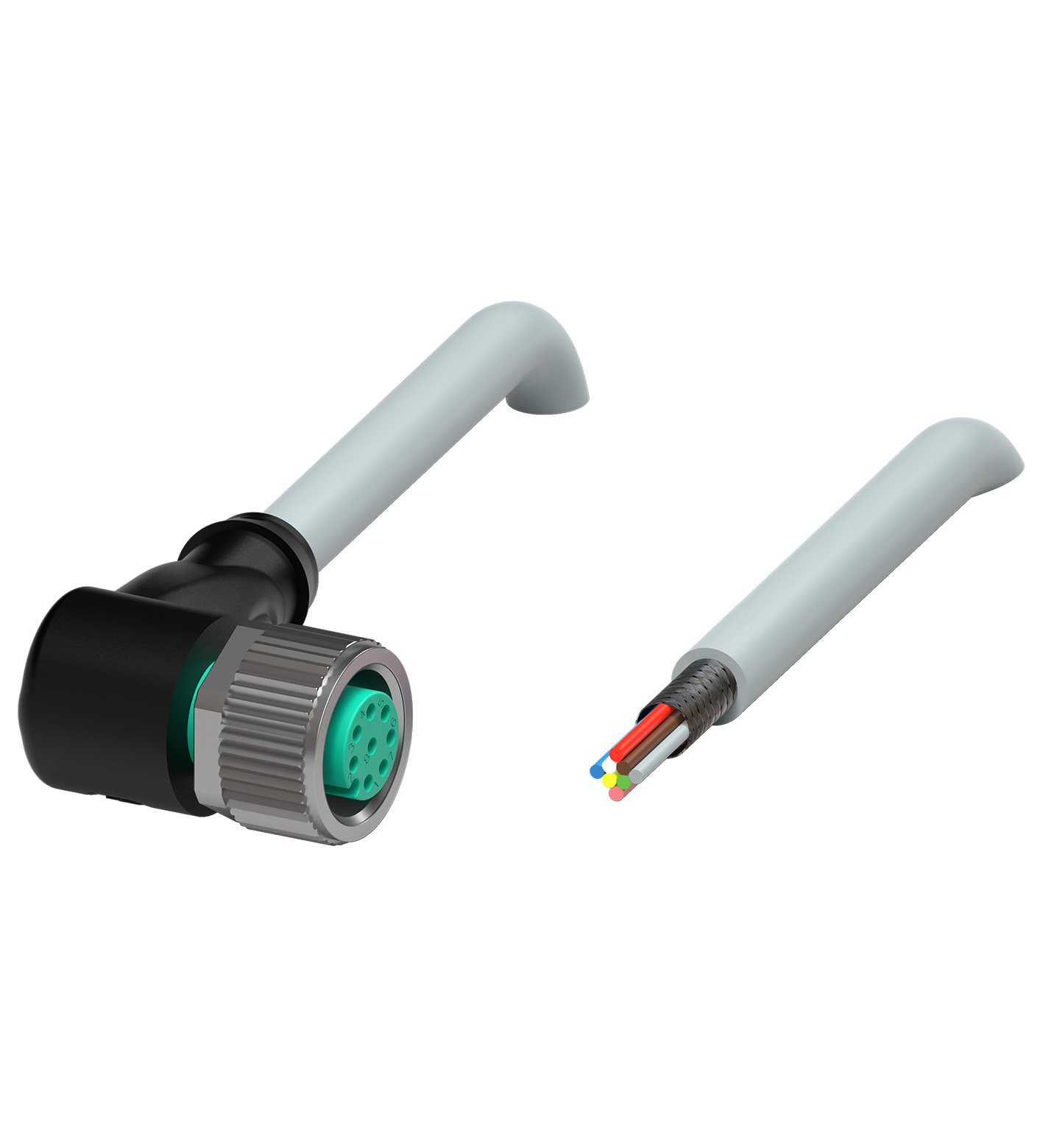

V19-W-2M-PUR-ABG

Cable socket, shielded. Female cordset single-ended M12 angled A-coded, 8-pin, PUR cable grey, shielded. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of...

Cable socket, shielded. Female cordset single-ended M12 angled A-coded, 8-pin, PUR cable grey, shielded. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins8CodingA-coded: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 8. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 30 V AC/DC. Operating current: max. 2 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Halogen-free: DIN VDE 0472-815 DIN EN 50267-2-1. Ambient temperature: . Plug connector-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-20 ... 80 °C (-4 ... 176 °F): . Plug connector: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -20 ... 80 °C (-4 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to screw connection: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP66 / IP68 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 100 N / 300 mmSheath colorgrey (similar to RAL 7001)Number of cores8Core cross section0.25 mm2Cores colorCore 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: blue Core 8: redCore construction14 x 0.15 mm ∅Shieldtinned copper braiding, 85 % coverageLengthL2 mCable codeLi 9Y V1 C V1 11Y 8 x 0,25: . Sheath diameter: 6 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 100 N / 300 mm. Sheath color: grey (similar to RAL 7001). Number of cores: 8. Core cross section: 0.25 mm2. Cores color: Core 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: blue Core 8: red. Core construction: 14 x 0.15 mm ∅. Shield: tinned copper braiding, 85 % coverage. Length: 2 m. Cable code: Li 9Y V1 C V1 11Y 8 x 0,25. Mass: 116 g. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPChemical resistancegood: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Chemical resistance: good. Cable marking sleeve: 1x PUR transparent , fixed to cable

Brand	Pepperl Fuchs
Lifecycle status	active
