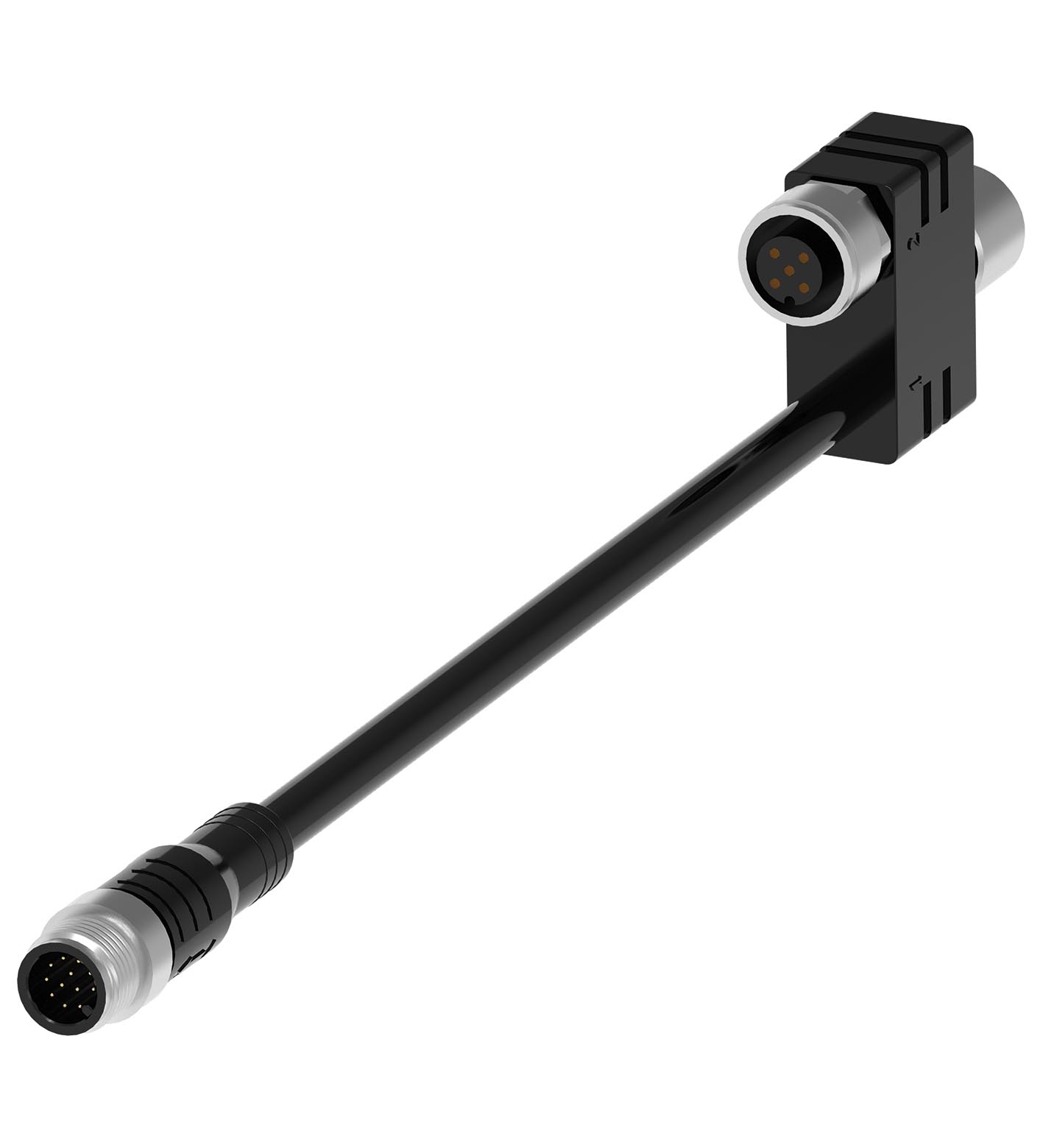

V19S-0,15M-PUR/V15-T-V19-VOS
Y connection cable. Y connection cable M12 socket straight A-coded 12-pin to M12 plug 12-pin / M12 socket 5-pin straight A-coded, PUR cable black, shielded. Customization: For use with series VOS came...
Y connection cable. Y connection cable M12 socket straight A-coded 12-pin to M12 plug 12-pin / M12 socket 5-pin straight A-coded, PUR cable black, shielded. Customization: For use with series VOS cameras. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins12CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 12. Coding: A-coded. Connector 2: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 5. Coding: A-coded. Connector 3: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins12CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 12. Coding: A-coded. Operating voltage: max. 30 V AC/DC. Operating current: max. 1.5 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Ambient temperature: . Plug connector-40 ... 85 °C (-40 ... 185 °F)Cable, fixed installation-40 ... 85 °C (-40 ... 185 °F)Cable, flexing-25 ... 85 °C (-13 ... 185 °F): . Plug connector: -40 ... 85 °C (-40 ... 185 °F). Cable, fixed installation: -40 ... 85 °C (-40 ... 185 °F). Cable, flexing: -25 ... 85 °C (-13 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 ... 0.8 NmLoosening protectionavailableTool installationstraight knurlingMating cyclesmin. 500Shieldingshield connected to screw connection: . Tightening torque: 0.4 ... 0.8 Nm. Loosening protection: available. Tool installation: straight knurling. Mating cycles: min. 500. Shielding: shield connected to screw connection. Degree of protection: IP67. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6.5 mmSheath stripping forcemax. 30 N / 500 mmSheath colorblack (similar to RAL 9005)Number of cores12Core cross section0.14 mm2Shieldaluminum-lined polyester foilTinned copper braiding, 70 % coverageLengthL0.15 m: . Sheath diameter: 6.5 mm. Sheath stripping force: max. 30 N / 500 mm. Sheath color: black (similar to RAL 9005). Number of cores: 12. Core cross section: 0.14 mm2. Shield: aluminum-lined polyester foilTinned copper braiding, 70 % coverage. Length: 0.15 m. Mass: 55.7 g. Connector 1: . Screw connectionbrass, nickel-platedBodyTPU, blackContact surfaceAuFlammabilityV-0: . Screw connection: brass, nickel-plated. Body: TPU, black. Contact surface: Au. Flammability: V-0. Connector 2: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfaceAuFlammabilityV-0: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: Au. Flammability: V-0. Connector 3: . Screw connectionbrass, nickel-platedBodyTPU, blackContact surfaceAuFlammabilityV-0: . Screw connection: brass, nickel-plated. Body: TPU, black. Contact surface: Au. Flammability: V-0. Cable: . SheathingPURFlammabilityFT2: . Sheathing: PUR. Flammability: FT2
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
