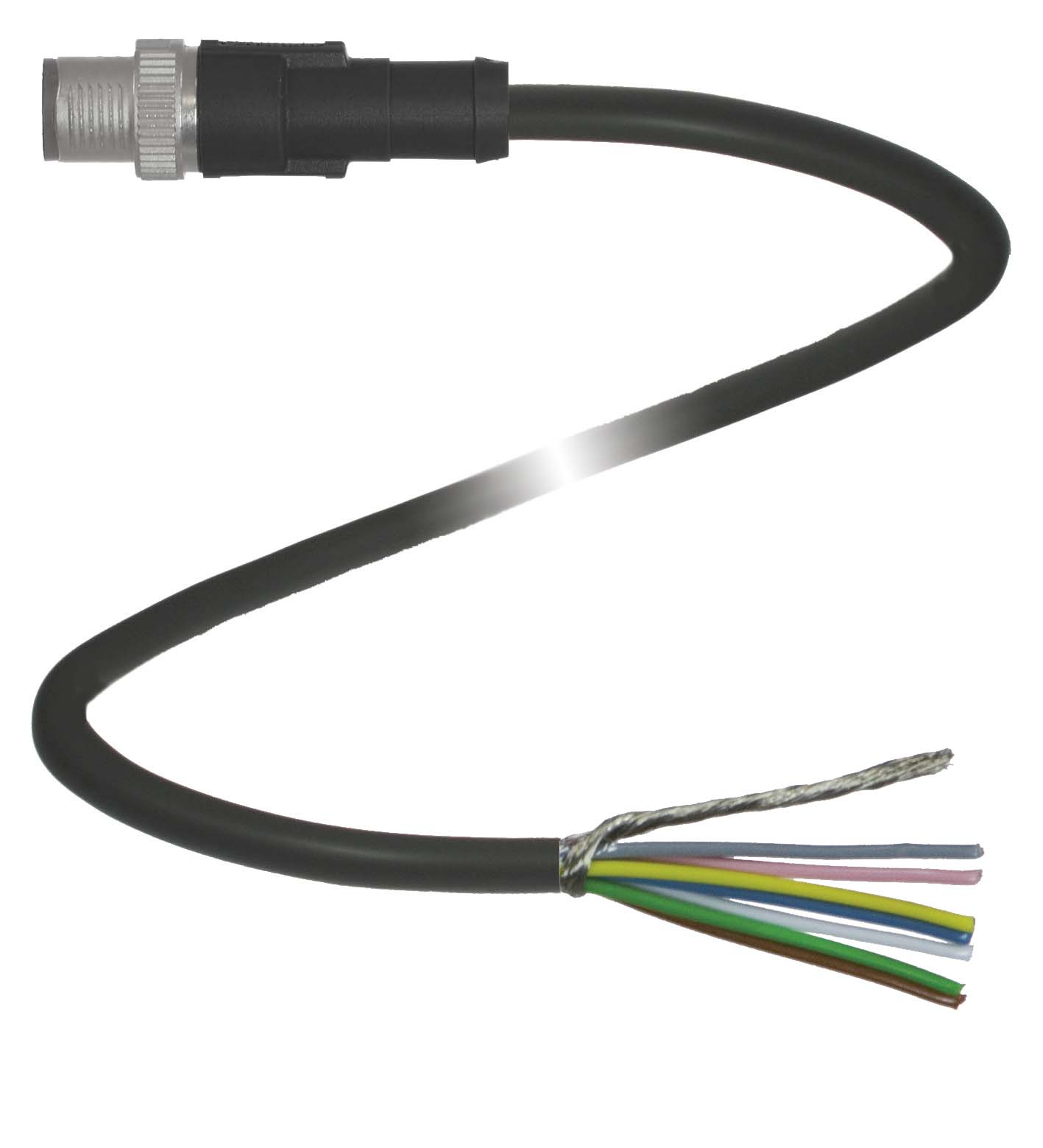

V19SY-G-BK5M-PUR-ABG

Cable connector, Ethernet. Ethernet bus cable male cordset single-ended M12 straight Y-coded 8-pin, PUR cable black, Cat5e, shielded, drag chain suitable. Connector 1: . ConnectionplugConstruction typ...

Cable connector, Ethernet. Ethernet bus cable male cordset single-ended M12 straight Y-coded 8-pin, PUR cable black, Cat5e, shielded, drag chain suitable. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingY-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: Y-coded. Connector 2: . Connectioncable end: . Connection: cable end. Rated voltage: 30 V DC. Rated current: 6 A (power supply)0.5 A (data). Volume resistance: max. 5 mΩ. Degree of protection: EN 60529. Fieldbus standard: Hybrid Ethernet. Plug connection: connector M12 x 1 : IEC 61076-2-113. Component category: CAT5 (IEC 11801) , CAT5e (TIA 568B). Flammability: UL 1581 ; UL 2556. Halogen-free: DIN VDE 0472-815 / IEC 60754-1. Hydrolysis resistance: EN 50396. Oil resistance: DIN EN 60811-2-1 / DIN VDE 0282-10. Ambient temperature: . Plug connector-25 ... 90 °C (-13 ... 194 °F)Cable, fixed installation-40 ... 90 °C (-40 ... 194 °F)Cable, flexing-30 ... 70 °C (-22 ... 158 °F): . Plug connector: -25 ... 90 °C (-13 ... 194 °F). Cable, fixed installation: -40 ... 90 °C (-40 ... 194 °F). Cable, flexing: -30 ... 70 °C (-22 ... 158 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmLoosening protectionintegratedTool installationstraight knurlingMating cyclesmin. 100Shieldingshield connected to screw connection: . Tightening torque: 0.4 Nm. Loosening protection: integrated. Tool installation: straight knurling. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP65 / IP67. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter8.8 mmBending radius> 8 x cable diameter, movable installation > 4 x cable diameter, fixed installationSheath colorblack (similar to RAL 9005)Number of cores8Core cross section4 x 0.15 mm² (data)4 x 0.85 mm² (power supply)Cores colorCore 1: white/orange Core 2: orange Core 3: white/green Core 4: green Core 5: blue Core 6: white Core 7: brown Core 8: blackCore construction19 x 0.1 mm (Data)19 x 0.2 mm (Power supply)Shieldtinned copper braiding, 85 % coverageLengthL5 mCable code94H: . Sheath diameter: 8.8 mm. Bending radius: > 8 x cable diameter, movable installation > 4 x cable diameter, fixed installation. Sheath color: black (similar to RAL 9005). Number of cores: 8. Core cross section: 4 x 0.15 mm² (data)4 x 0.85 mm² (power supply). Cores color: Core 1: white/orange Core 2: orange Core 3: white/green Core 4: green Core 5: blue Core 6: white Core 7: brown Core 8: black. Core construction: 19 x 0.1 mm (Data)19 x 0.2 mm (Power supply). Shield: tinned copper braiding, 85 % coverage. Length: 5 m. Cable code: 94H. Drag chain suitability: . Drag chain cyclesmin. 2000000Motion velocitymax. 3 m/sTraverse distance4.5 mAccelerationmax. 3 m/s2: . Drag chain cycles: min. 2000000. Motion velocity: max. 3 m/s. Traverse distance: 4.5 m. Acceleration: max. 3 m/s2. Mass: 594 g. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfaceNi/AuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: Ni/Au. Flammability: V-2. Cable: . SheathingPURCoresbare copper (Cu)Core insulationPPOil resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT1: . Sheathing: PUR. Cores: bare copper (Cu). Core insulation: PP. Oil resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT1

Brand	Pepperl Fuchs
Lifecycle status	active
