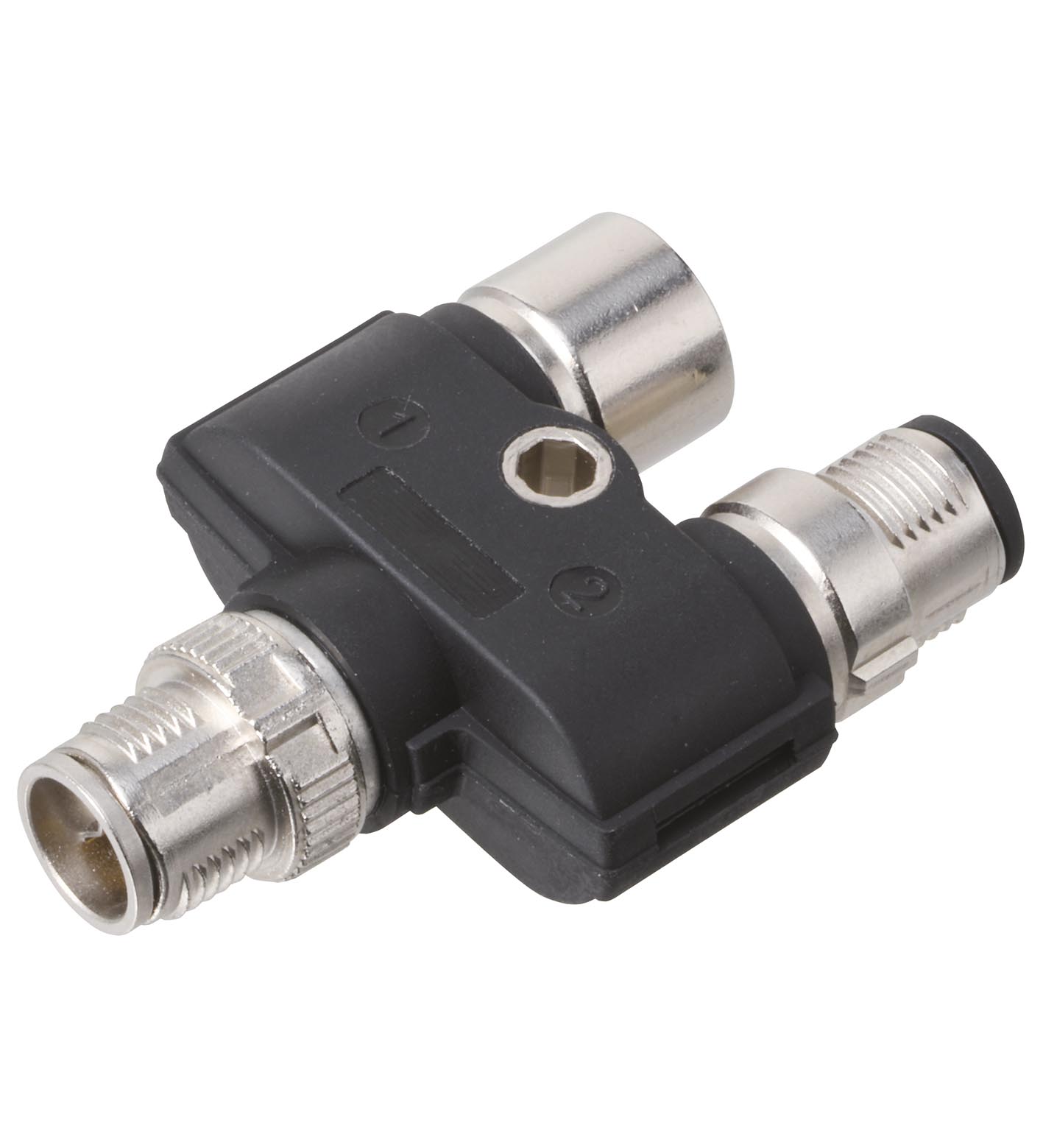

V19SY-Y-V1D/V1S

Y-Splitter. Y-Splitter M12 plug 8-pin Y-coded to M12 socket 4-pin D-coded / M12 plug 4-pin A-coded. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pin...

Y-Splitter. Y-Splitter M12 plug 8-pin Y-coded to M12 socket 4-pin D-coded / M12 plug 4-pin A-coded. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingD-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: D-coded. Connector 2: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Connector 3: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingY-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: Y-coded. Operating voltage: max. 30 V AC/DC. Operating current: 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Component category: CAT5 (IEC 11801:2002). Flammability: UL 94. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurlingMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling. Mating cycles: min. 100. Degree of protection: IP67. Mass: 45 g. Dimensions: . Width39 mmLength54.5 mm: . Width: 39 mm. Length: 54.5 mm. Mounting: Mounting hole for M4 screw. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPUSealNBRContact surfaceNi/Au: . Screw connection: Zinc diecast, nickel-plated. Body: TPU. Seal: NBR. Contact surface: Ni/Au

Brand	Pepperl Fuchs
Lifecycle status	active
