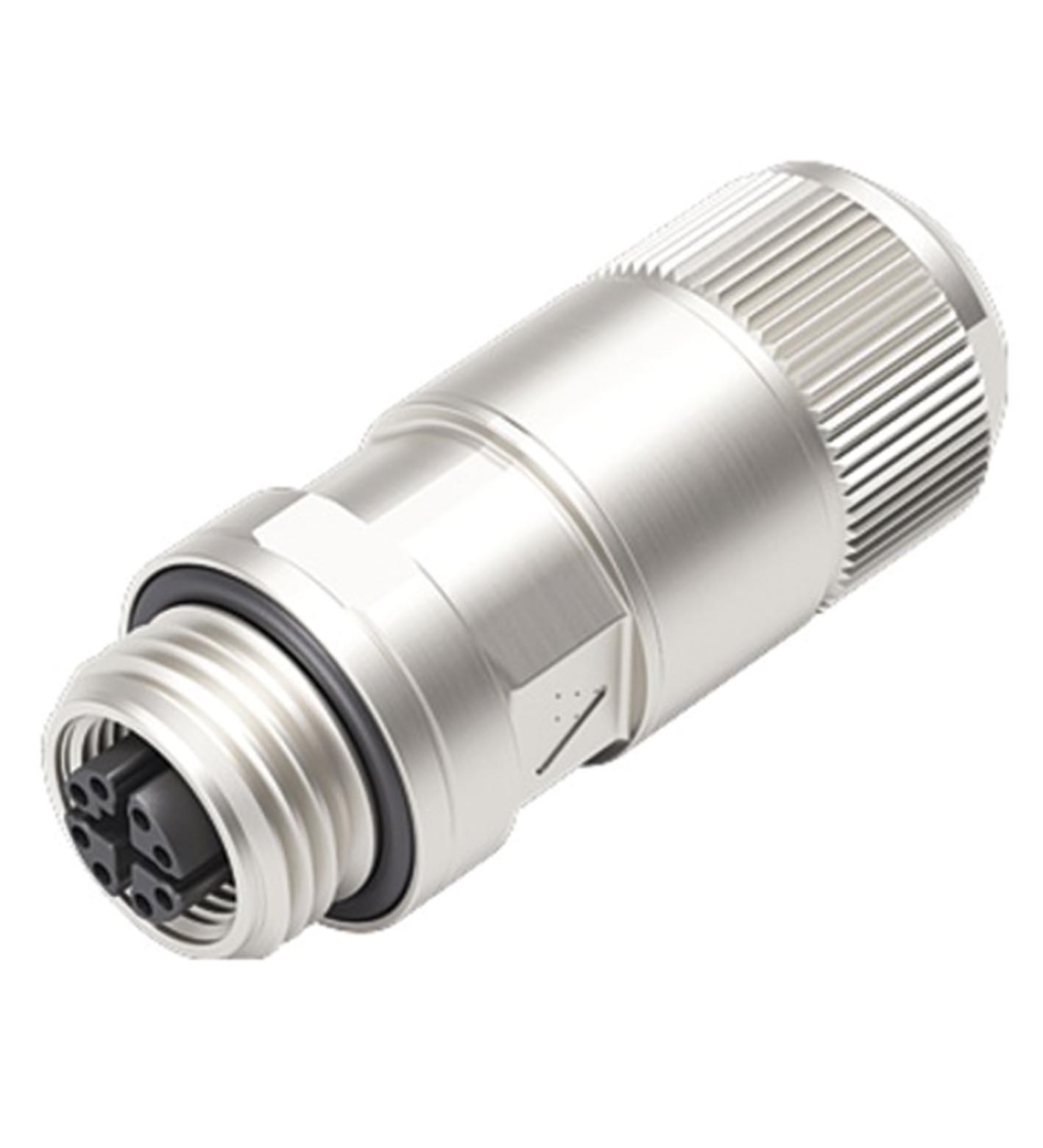

V19X-G-ABG

Female connector, field-attachable. Female connector M12 straight X-coded 8-pin, Cat6A, shielded, for cable diameter 5.5 - 9 mm, field-attachable, insulation displacement connection. Connector 1: . Co...

Female connector, field-attachable. Female connector M12 straight X-coded 8-pin, Cat6A, shielded, for cable diameter 5.5 - 9 mm, field-attachable, insulation displacement connection. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingX-codedCustomizationsuitable for wall bushing: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: X-coded. Customization: suitable for wall bushing. Operating voltage: max. 50 V AC / 60 V DC. Operating current: max. 0.5 A. Volume resistance: max. 15 mΩ. Contact resistance: max. 5 MΩ. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Fieldbus standard: IEEE 802.3an 10GBASE-T. Transmission technology: suitable for PoE+ Power over Ethernet IEEE 802.3at. Plug connection: connector M12 x 1 : IEC 61076-2-109. Component category: CAT6A (IEC 11801, EN 50173). Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmTool installationhexagon nut SW = 19 mmMating cyclesmin. 100Shieldingvia Body: . Tightening torque: 0.6 Nm. Tool installation: hexagon nut SW = 19 mm. Mating cycles: min. 100. Shielding: via Body. Degree of protection: IP67. Connection: Wire manager included with delivery. Cable: . Sheath diameter5,5 ... 9 mmCore cross section0.1 ... 0.34 mm2 / 27 ... 22 AWG: . Sheath diameter: 5,5 ... 9 mm. Core cross section: 0.1 ... 0.34 mm2 / 27 ... 22 AWG. Mass: 48.25 g. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyZinc diecast, nickel-plated / brass, nickel-platedContact surfaceAu: . Screw connection: Zinc diecast, nickel-plated. Body: Zinc diecast, nickel-plated / brass, nickel-plated. Contact surface: Au

Brand	Pepperl Fuchs
Lifecycle status	active
