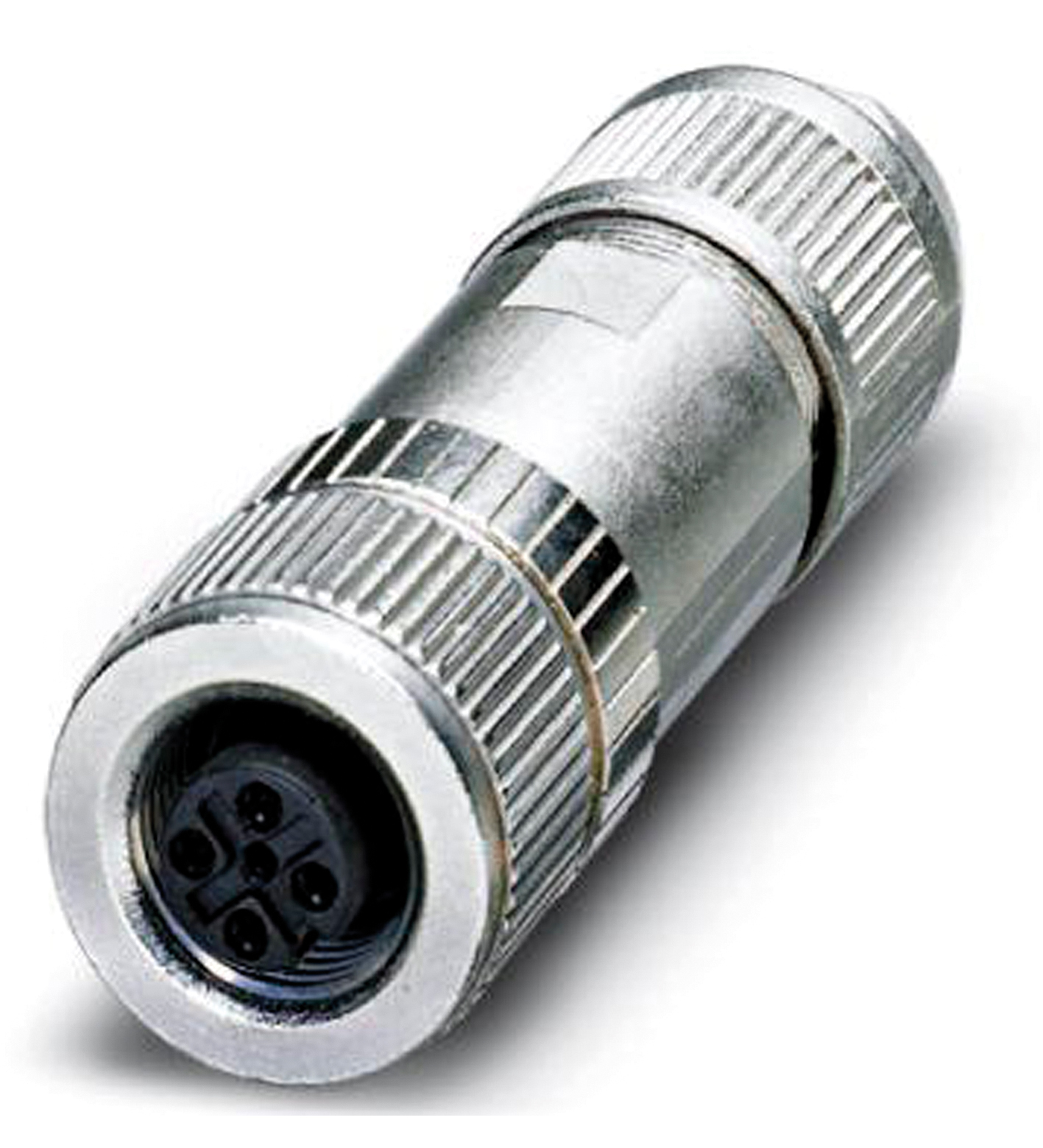

V1D-G-ABG-PG9-Q3

Female connector, field-attachable. Female connector M12 straight D-coded 4-pin, shielded, for cable diameter 4 - 8 mm, field-attachable, insulation displacement connection. Connector 1: . Connections...

Female connector, field-attachable. Female connector M12 straight D-coded 4-pin, shielded, for cable diameter 4 - 8 mm, field-attachable, insulation displacement connection. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingD-coded: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 4. Coding: D-coded. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 1.75 A. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Fieldbus standard: PROFINET. Plug connection: connector M12 x 1 : IEC 61076-2-101. Component category: CAT5 (IEC 11801). Flammability: UL 94. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 Nm knurl / 0.8 Nm plug insert / 3.0 Nm pressure nutTool installationstraight knurling , SW = 16 mm , SW = 13 mmMating cyclesmin. 100Shieldingshield connected to connector: . Tightening torque: 0.4 Nm knurl / 0.8 Nm plug insert / 3.0 Nm pressure nut. Tool installation: straight knurling , SW = 16 mm , SW = 13 mm. Mating cycles: min. 100. Shielding: shield connected to connector. Degree of protection: IP67. Connection: Insulation displacement connection for 0.25 ... 0.34 mm2. Cable: . Sheath diameter4 ... 8 mmCore cross section0.34 mm2 / 22 AWG max.: . Sheath diameter: 4 ... 8 mm. Core cross section: 0.34 mm2 / 22 AWG max.. Mass: 51.8 g. Plug connector: . Screw connectionbrass, nickel-platedBodyZinc diecast, nickel-platedSealNeopreneContact surfaceNi/AuFlammabilityV-0: . Screw connection: brass, nickel-plated. Body: Zinc diecast, nickel-plated. Seal: Neoprene. Contact surface: Ni/Au. Flammability: V-0

Brand	Pepperl Fuchs
Lifecycle status	active
