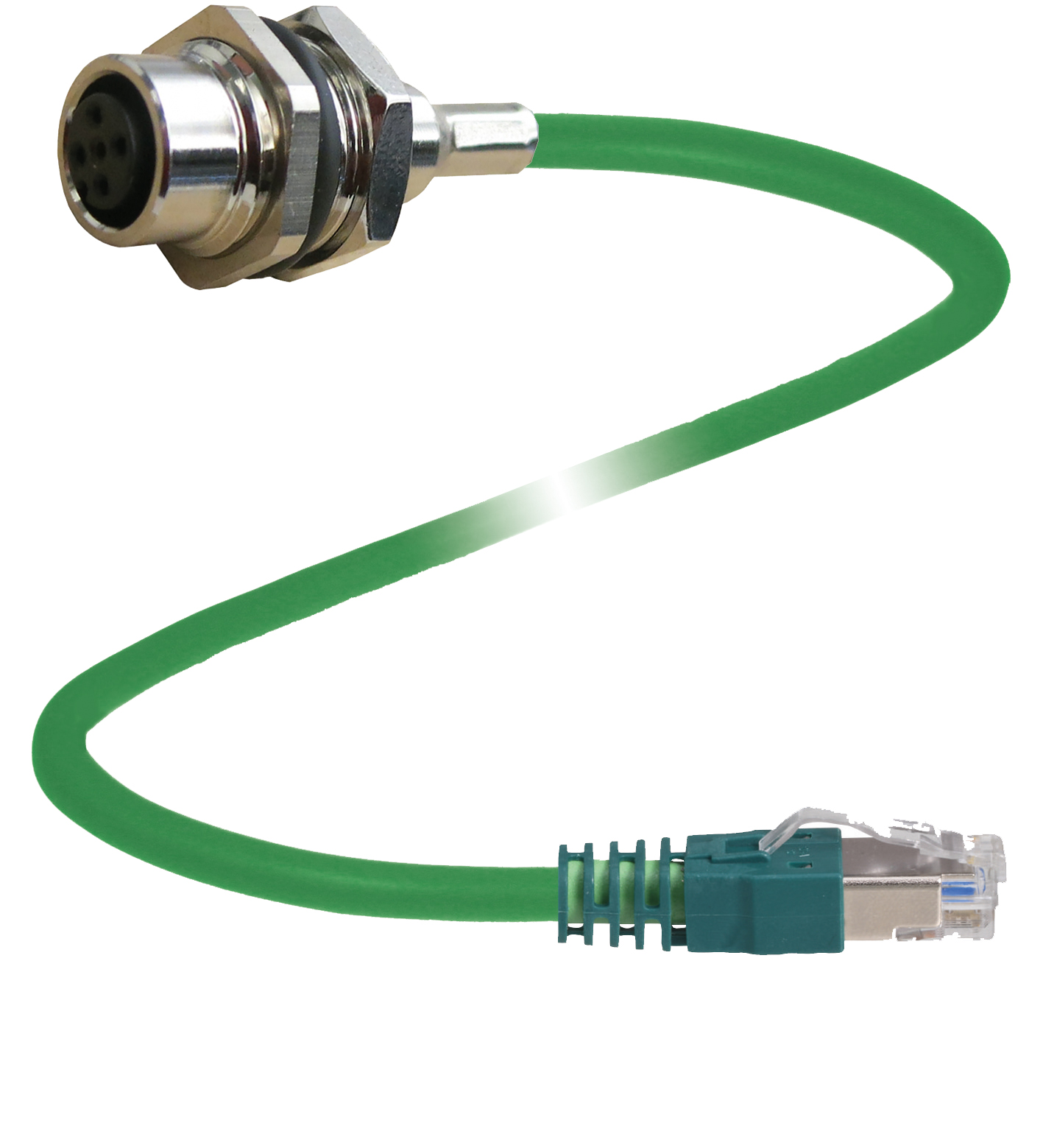

V1D-M16H-GN1,5M-PUR-E1S-V45-G

Connection cable, Ethernet. Ethernet bus cable receptacle M12 socket straight D-coded to RJ45 Ethernet-coded, 4-pin, PUR cable green, Cat5e, shielded, drag chain suitable. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingD-codedCustomizationReceptacles: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: D-coded. Customization: Receptacles. Connector 2: . ConnectionplugConstruction typeRJ45StylestraightLockingsnap lockingNumber of pins8CodingEtherNet/IP / PROFINET: . Connection: plug. Construction type: RJ45. Style: straight. Locking: snap locking. Number of pins: 8. Coding: EtherNet/IP / PROFINET. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 1 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101 connector RJ45 : IEC 60603-7. Component category: CAT5 (IEC 11801) , CAT5e (IEC 61156-6). Flammability: IEC 60332-1-2 / UL 2556 / ISO 6722-1 5.22 (UN ECE-R 118.01). Ambient temperature: . Connector 1-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-30 ... 70 °C (-22 ... 158 °F) , UL: -20 ... 70 °C (-4 ... 158 °F)Cable, flexing-20 ... 70 °C (-4 ... 158 °F): . Connector 1: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -30 ... 70 °C (-22 ... 158 °F) , UL: -20 ... 70 °C (-4 ... 158 °F). Cable, flexing: -20 ... 70 °C (-4 ... 158 °F). Connector 1: . Tightening torque0.6 NmTool installationRear mounting M16 , SW = 17 mm and SW = 19 mmMating cyclesmin. 100Shieldingshield connected to connectorDegree of protectionIP67: . Tightening torque: 0.6 Nm. Tool installation: Rear mounting M16 , SW = 17 mm and SW = 19 mm. Mating cycles: min. 100. Shielding: shield connected to connector. Degree of protection: IP67. Connector 2: . Loosening protectionavailableMating cyclesmin. 100Shieldingshield connected to connectorDegree of protectionIP20: . Loosening protection: available. Mating cycles: min. 100. Shielding: shield connected to connector. Degree of protection: IP20. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6 mmBending radius> 10 x cable diameter, movable installation > 8 x cable diameter, fixed installationSheath stripping forcemax. 60 N / 100 mmSheath colorgreen (similar to RAL 6018)Number of cores4Core cross section0.34 mm2 / 22 AWGCores colorCore 1-1: yellow Core 2-3: white Core 3-2: orange Core 4-6: blueCore construction7 x 0.254 mm ∅ twisted quadShieldaluminum-lined polyester foilTinned copper braidingLengthL1.5 m: . Sheath diameter: 6 mm. Bending radius: > 10 x cable diameter, movable installation > 8 x cable diameter, fixed installation. Sheath stripping force: max. 60 N / 100 mm. Sheath color: green (similar to RAL 6018). Number of cores: 4. Core cross section: 0.34 mm2 / 22 AWG. Cores color: Core 1-1: yellow Core 2-3: white Core 3-2: orange Core 4-6: blue. Core construction: 7 x 0.254 mm ∅ twisted quad. Shield: aluminum-lined polyester foilTinned copper braiding. Length: 1.5 m. Drag chain suitability: . Drag chain cyclesmax. 1000000Motion velocitymax. 3 m/sTraverse distancemax. 5 mAccelerationmax. 2 m/s2: . Drag chain cycles: max. 1000000. Motion velocity: max. 3 m/s. Traverse distance: max. 5 m. Acceleration: max. 2 m/s2. Mass: 117.13 g. PWIS free: yes. Halogen-free: yes. Connector 1: . Screw connectionZinc diecast, nickel-platedSealFKMContact surfaceAuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Seal: FKM. Contact surface: Au. Flammability: V-2. Connector 2: . BodyPA, greenFlammabilityV-0: . Body: PA, green. Flammability: V-0. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPFlammabilityFT2 complies with UN ECE-R 118.01: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Flammability: FT2 complies with UN ECE-R 118.01. Scope of delivery: locknut included
