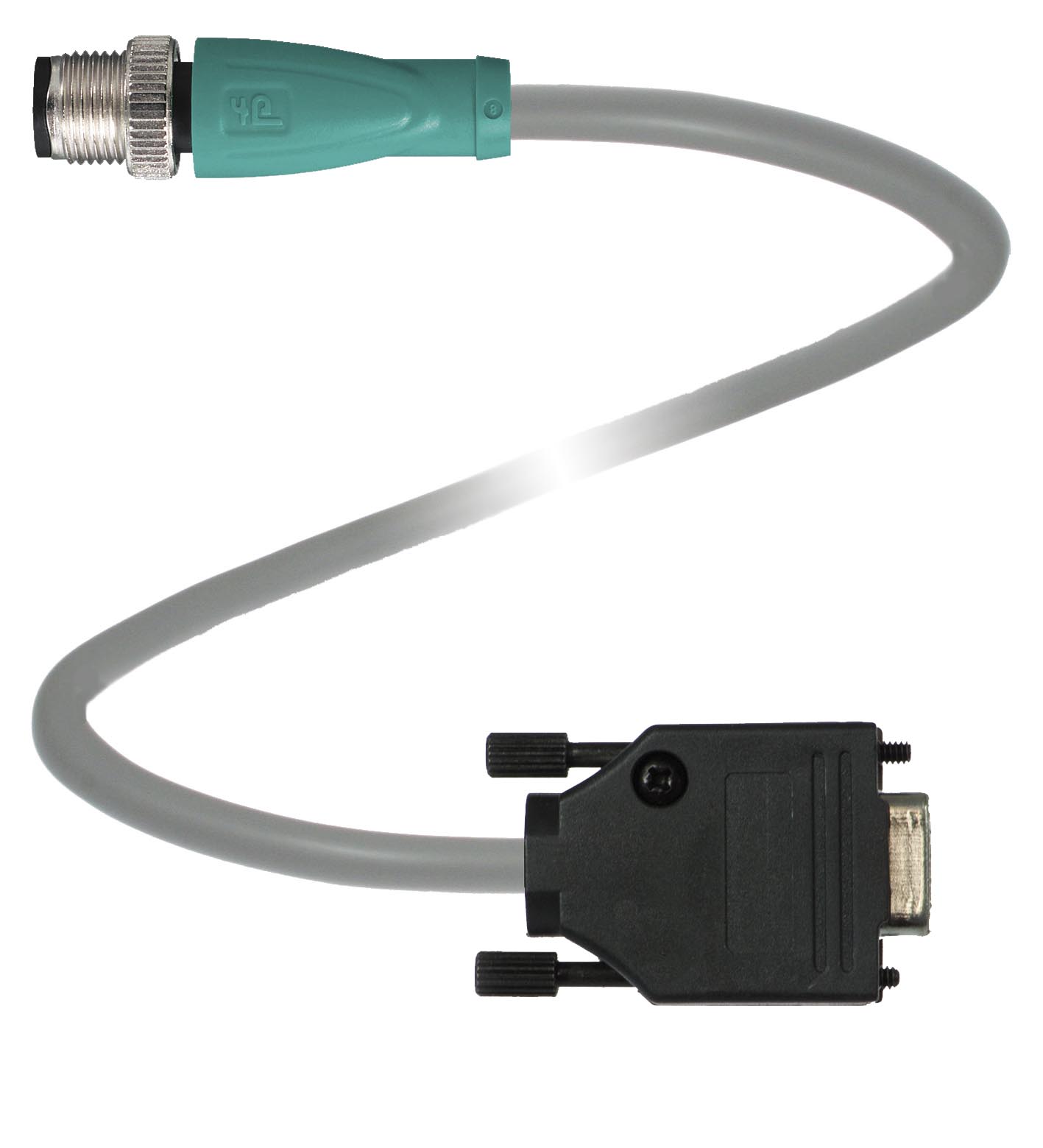

V1S-G-2M-PUR-SUBD9

Connection cable. Cable connector, M12, 4-pin, PUR cable on Sub-D female connector, 9-pin. Number of pins: 3. Construction type: M12 connector, straight9-pin Sub-D socket. Operating voltage: max. 60 V...

Connection cable. Cable connector, M12, 4-pin, PUR cable on Sub-D female connector, 9-pin. Number of pins: 3. Construction type: M12 connector, straight9-pin Sub-D socket. Operating voltage: max. 60 V DC. Operating current: max. 4 A. Ambient temperature: -40 ... 90 °C (-40 ... 194 °F) cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F) cable, movable installation: -20 ... 80 °C (-4 ... 176 °F). Pollution degree: 3. Connection: 1 x M12 connector, straight1 x SUB-D socket. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, greenCablePURSleeve connectorDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, green. Cable: PUR. Sleeve connector: Diecast zinc. Core insulation: PP. Cable: fine-strand, flexible. Sheath diameter∅ 4.8 mmBending radius> 10 x cable diameter, movable installationColorgreyCores4 x 0.34 mm2Conductor construction19 x 0.15 mm ∅LengthL2 m: . Sheath diameter: ∅ 4.8 mm. Bending radius: > 10 x cable diameter, movable installation. Color: grey. Cores: 4 x 0.34 mm2. Conductor construction: 19 x 0.15 mm ∅. Length: 2 m. Mass: 89 g. Flammability: . Contact carrier94 HBHousing94 V-2: . Contact carrier: 94 HB. Housing: 94 V-2

Brand	Pepperl Fuchs
Lifecycle status	active
