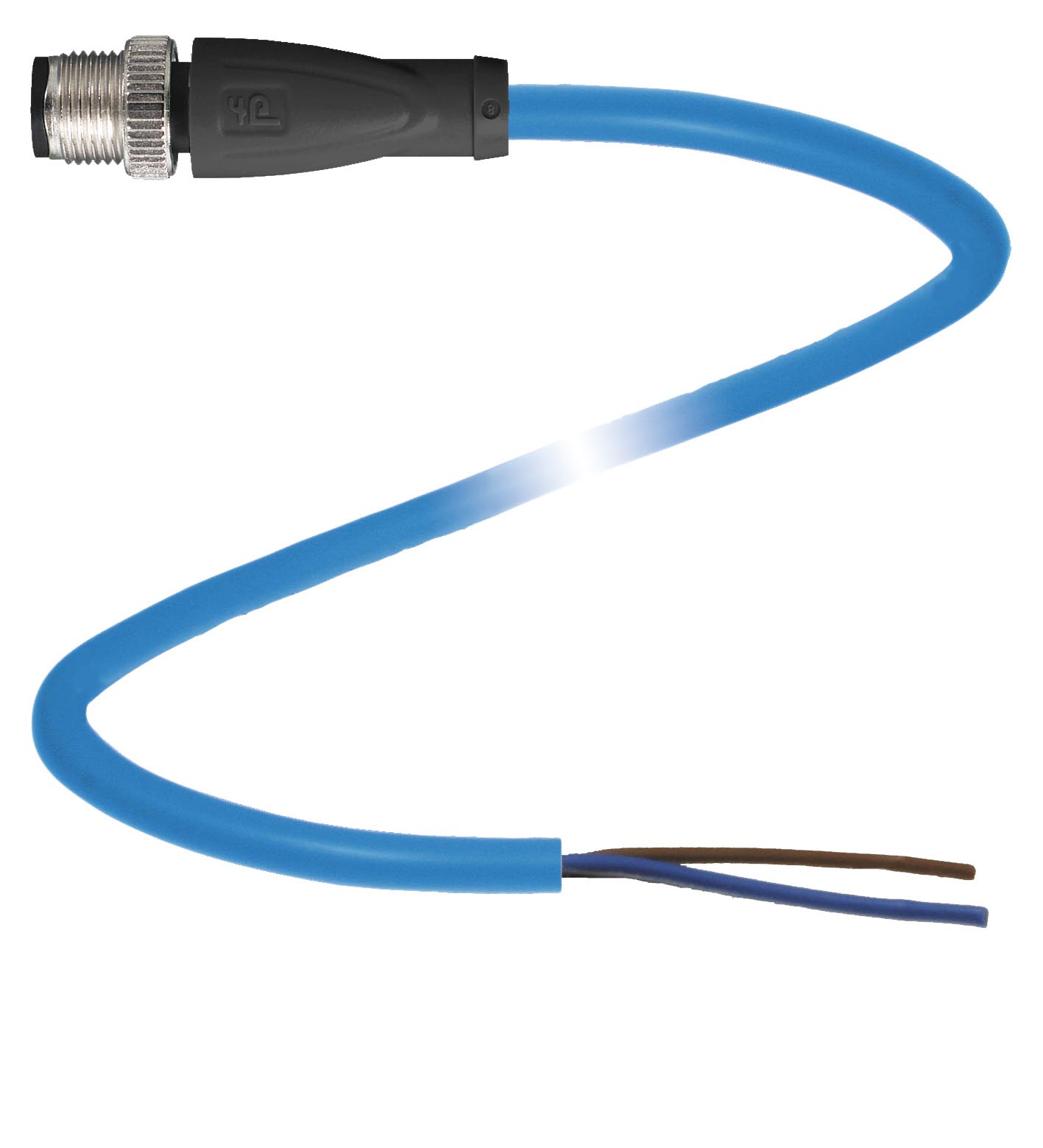

V1S-G-N-1M-PUR-Y203909

Cable connector, NAMUR. Cable connector, M12, 2-pin, NAMUR, PUR cable. Number of pins: 2. Connection 1: plug. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. UL File Number:...

Cable connector, NAMUR. Cable connector, M12, 2-pin, NAMUR, PUR cable. Number of pins: 2. Connection 1: plug. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. UL File Number: E231213. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Contact resistance: < 10 mΩ. Inductance: 0.6 mH / km. Capacitance: 82 nF / km. Standard conformity: . Degree of protectionEN 60529:2000StandardsIEC 61076-2-101:2008FlammabilityGrip: UL 94: . Degree of protection: EN 60529:2000. Standards: IEC 61076-2-101:2008. Flammability: Grip: UL 94. Ambient temperature: Body: -40 ... 90 °C (-40 ... 194 °F) cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F) cable, movable installation: -20 ... 80 °C (-4 ... 176 °F). Pollution degree: 3. Pin diameter: 1 mm. Degree of protection: IP67 / IP68 / IP69k. Cable code: Li FY 11Y 2 x 0.34. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePURSleeve connectorDiecast zincCore insulationPVC: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PUR. Sleeve connector: Diecast zinc. Core insulation: PVC. Cable: extra-fine wire, flexible. Sheath diameter∅ 4.8 mmBending radius> 15 x cable diameter, movable installation > 10 x cable diameter, fixed installationColorblueCores2 x 0.34 mm2Conductor construction42 x 0.1 mm ∅LengthL1 m: . Sheath diameter: ∅ 4.8 mm. Bending radius: > 15 x cable diameter, movable installation > 10 x cable diameter, fixed installation. Color: blue. Cores: 2 x 0.34 mm2. Conductor construction: 42 x 0.1 mm ∅. Length: 1 m. Mass: 37.08 g. Flammability: . Contact carrier94 HBHousing94 V-2: . Contact carrier: 94 HB. Housing: 94 V-2

Brand	Pepperl Fuchs
Lifecycle status	active
