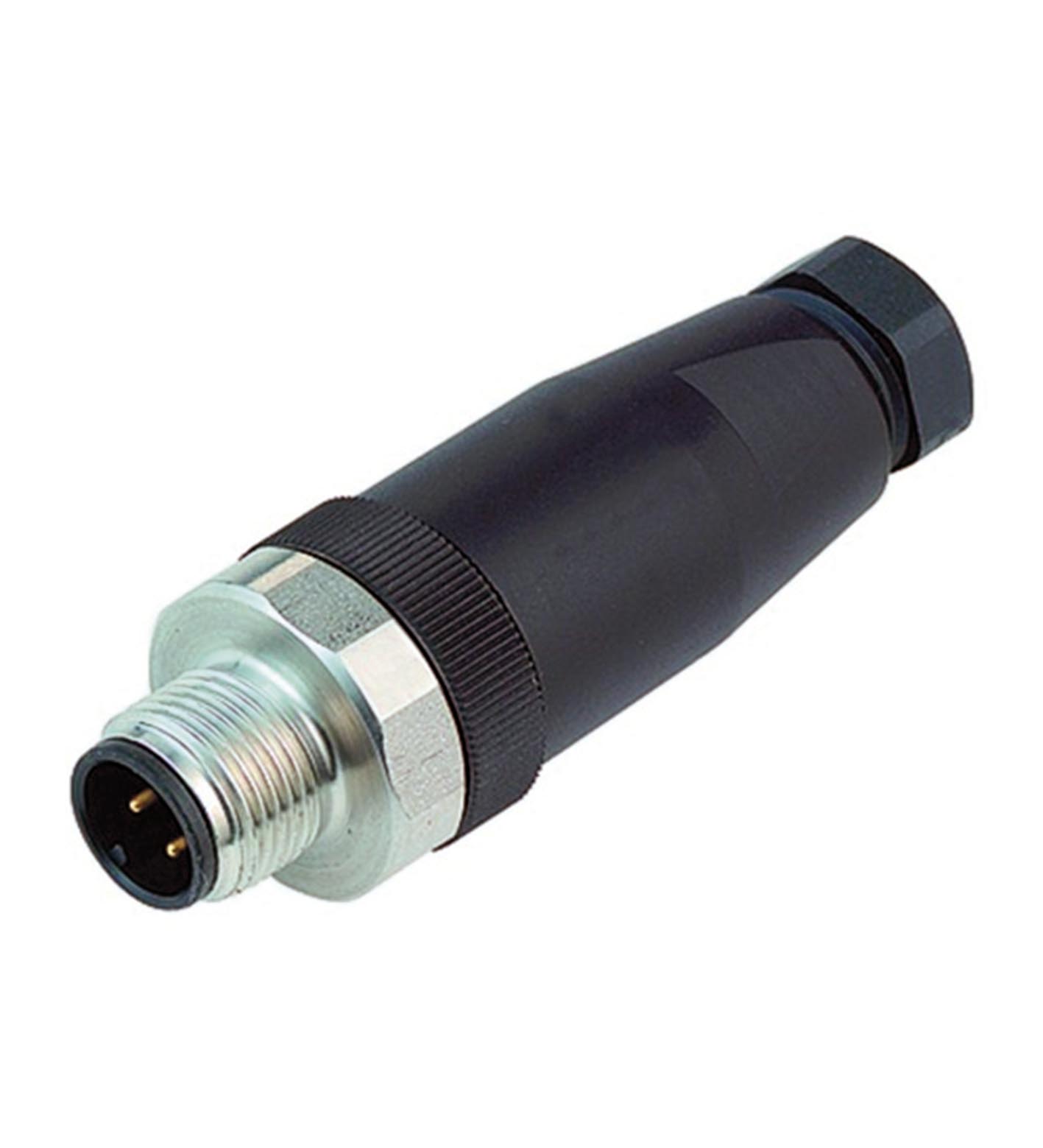

V1S-GV4A

Field-attachable male connector. Field-attachable male connector. Number of pins: 4. Connection 1: plug. Construction type 1: straight. Threading 1: M12. UL File Number: E363587. Operating voltage: ma...

Field-attachable male connector. Field-attachable male connector. Number of pins: 4. Connection 1: plug. Construction type 1: straight. Threading 1: M12. UL File Number: E363587. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Volume resistance: < 3 mΩ. Standard conformity: . Degree of protectionEN 60529:2000: . Degree of protection: EN 60529:2000. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Degree of protection: IP67. Connection: 1 x M12 connector, straightscrew terminals for max. 0.75 mm2. Material: . ContactsCuZnContact surfaceAuBodyPA: . Contacts: CuZn. Contact surface: Au. Body: PA. Cable: . Sheath diameter4 ... 6 mm: . Sheath diameter: 4 ... 6 mm. Mass: 22 g

Brand	Pepperl Fuchs
Lifecycle status	active
