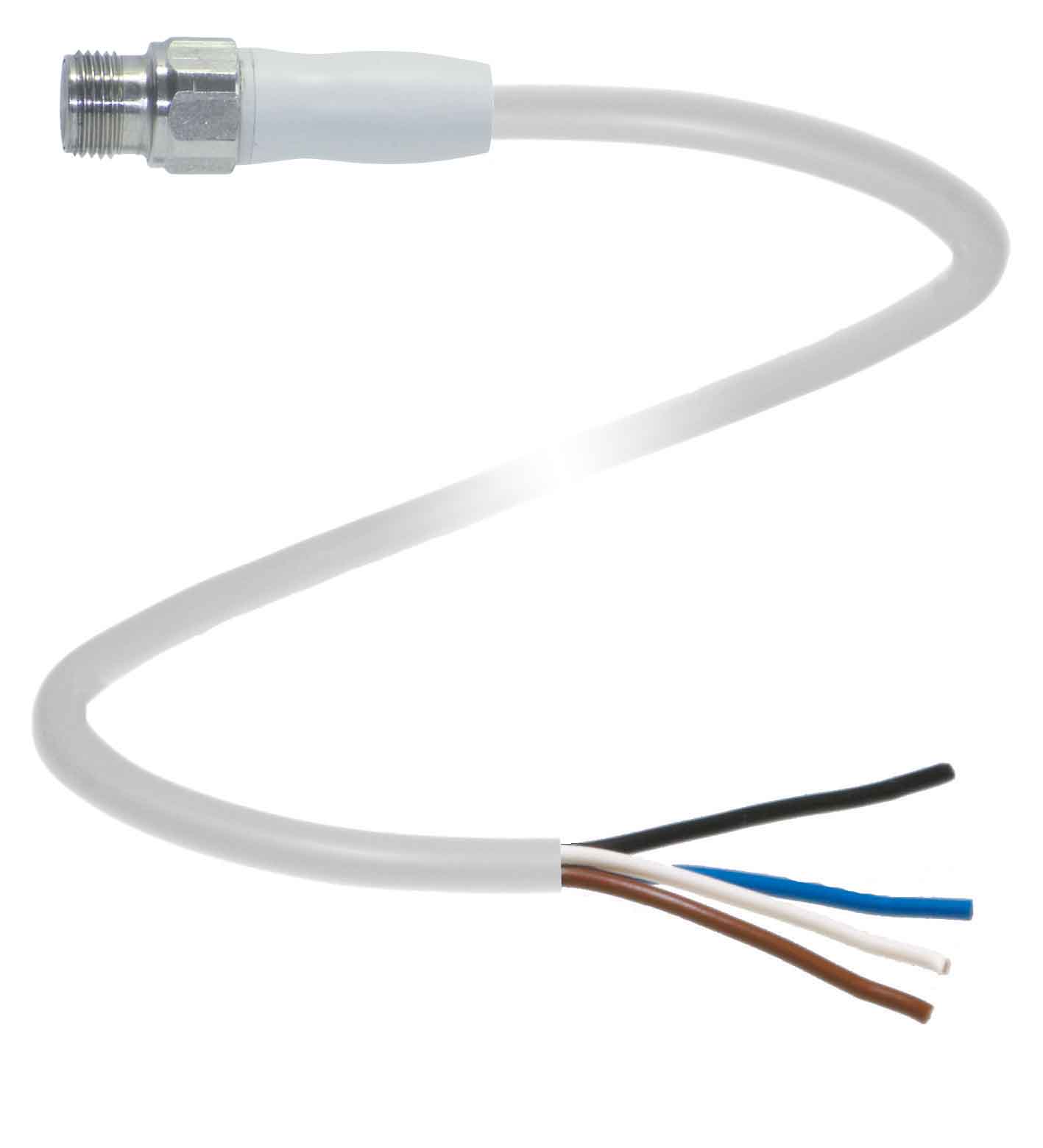

V1S-GV4A-2M-PP-H1

Cable connector. Single-ended male cordset, M12, V4A stainless steel, hygienic design, 4-pin, PP cable. Number of pins: 4. Connection 1: Male connector. Construction type 1: straight. Threading 1: M12...

Cable connector. Single-ended male cordset, M12, V4A stainless steel, hygienic design, 4-pin, PP cable. Number of pins: 4. Connection 1: Male connector. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Standard conformity: . Degree of protectionEN 60529StandardsIEC 61076-2-101Halogen-freeIEC 60754-1Temperature resistanceDIN EN 60811-1-4MaterialFDA-compliant in accordance with FDA 21 CFR 177.2600: . Degree of protection: EN 60529. Standards: IEC 61076-2-101. Halogen-free: IEC 60754-1. Temperature resistance: DIN EN 60811-1-4. Material: FDA-compliant in accordance with FDA 21 CFR 177.2600. Ambient temperature: cable, movable installation: -25 ... 105 °C (-13 ... 221 °F) cable, fixed installation: -40 ... 105 °C (-40 ... 221 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67 / IP68 / IP69. Material: . ContactsCuSnContact surfaceNi/AuBodyPPCablePP-EPDMSlotted nutstainless steel V4ASealFKMCore insulationPPTemperature resistanceCold bending-resistant and cold impact-resistant up to -40 °C (-40 °F): . Contacts: CuSn. Contact surface: Ni/Au. Body: PP. Cable: PP-EPDM. Slotted nut: stainless steel V4A. Seal: FKM. Core insulation: PP. Temperature resistance: Cold bending-resistant and cold impact-resistant up to -40 °C (-40 °F). Cable: extra-fine wire, flexible. Sheath diameter∅ 4.7 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationColorgreyCores4 x 0.34 mm2Conductor construction42 x 0.1 mm ∅LengthL2 m: . Sheath diameter: ∅ 4.7 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Color: grey. Cores: 4 x 0.34 mm2. Conductor construction: 42 x 0.1 mm ∅. Length: 2 m. Drag chain suitability: . Drag chain cyclesmin. 4000000Motion velocitymax. 3 m/sTraverse distance10 mAccelerationmax. 10 m/s2Torsion cyclesmin. 4000000Torsional stress± 270 °/m: . Drag chain cycles: min. 4000000. Motion velocity: max. 3 m/s. Traverse distance: 10 m. Acceleration: max. 10 m/s2. Torsion cycles: min. 4000000. Torsional stress: ± 270 °/m. Tightening torque, cable gland: 0.4 ... 0.6 Nm. Mating cycles: min. 100

Brand	Pepperl Fuchs
Lifecycle status	active
