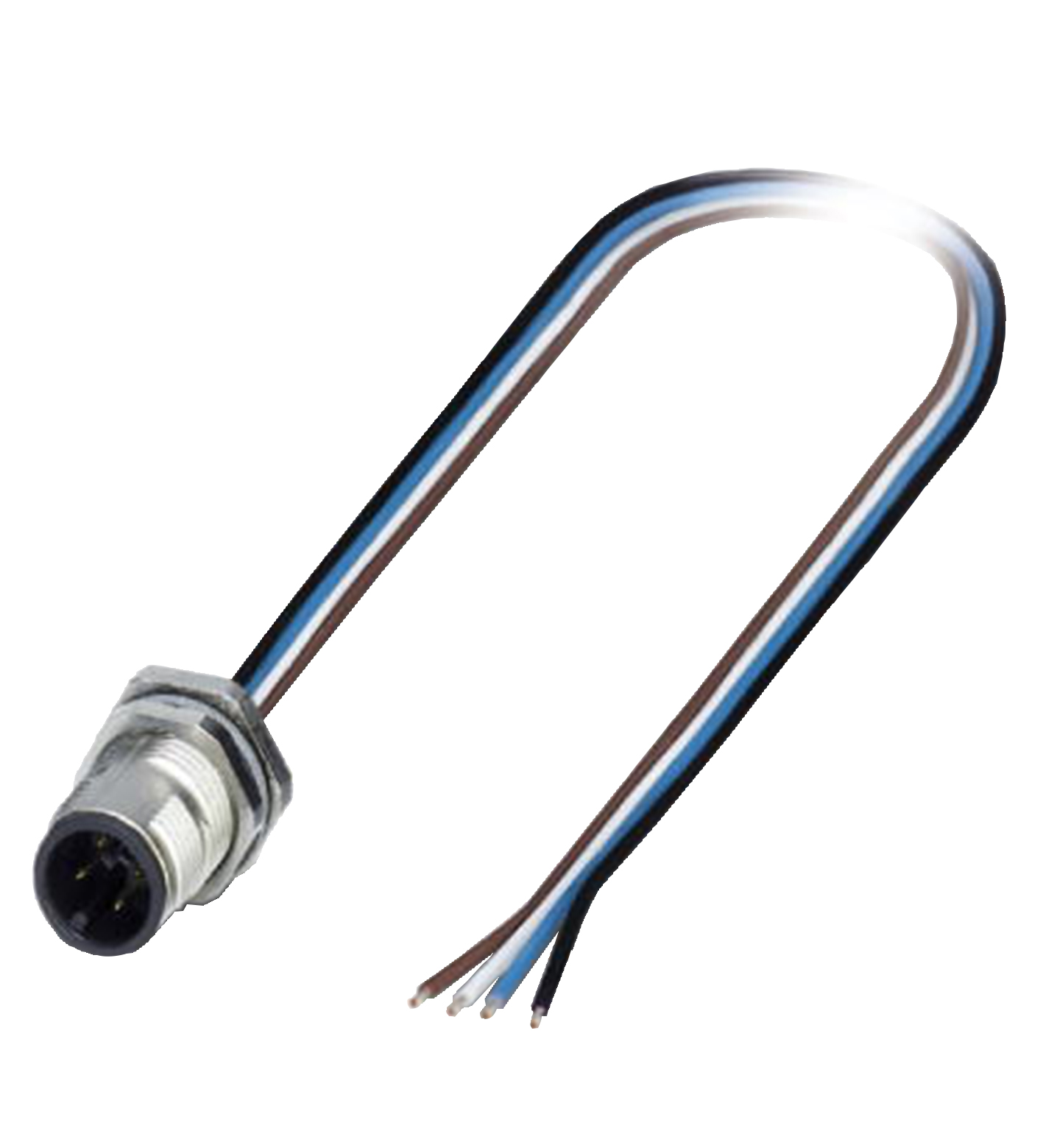

V1S-M12-500

Receptacles. Receptacles, M12/M12, 4-pin. Number of pins: 4. Connection 1: plug. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 60 V DC. Test voltage...

Receptacles. Receptacles, M12/M12, 4-pin. Number of pins: 4. Connection 1: plug. Construction type 1: straight. Threading 1: M12. Connection 2: cable end. Operating voltage: max. 60 V DC. Test voltage: > 2000 V eff AC. Operating current: max. 4 A. Volume resistance: < 3 mΩ. Insulation resistance: min. 100 MΩ. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Pollution degree: 3. Pin diameter: 1 mm. Degree of protection: IP67. Connection: tinned copper single leads, ∅1.2 ±0.07 mm. Material: . ContactsCuZnContact surfaceAuConnectorZinc diecast, nickel-platedSealNBRCore insulationPVC: . Contacts: CuZn. Contact surface: Au. Connector: Zinc diecast, nickel-plated. Seal: NBR. Core insulation: PVC. Cable: TPE. Cores4 x 0.34 mm2Conductor construction7 x 0.25 mm ∅LengthL500 mm: . Cores: 4 x 0.34 mm2. Conductor construction: 7 x 0.25 mm ∅. Length: 500 mm. Mass: 18.02 g

Brand	Pepperl Fuchs
Lifecycle status	active
