Pepperl Fuchs

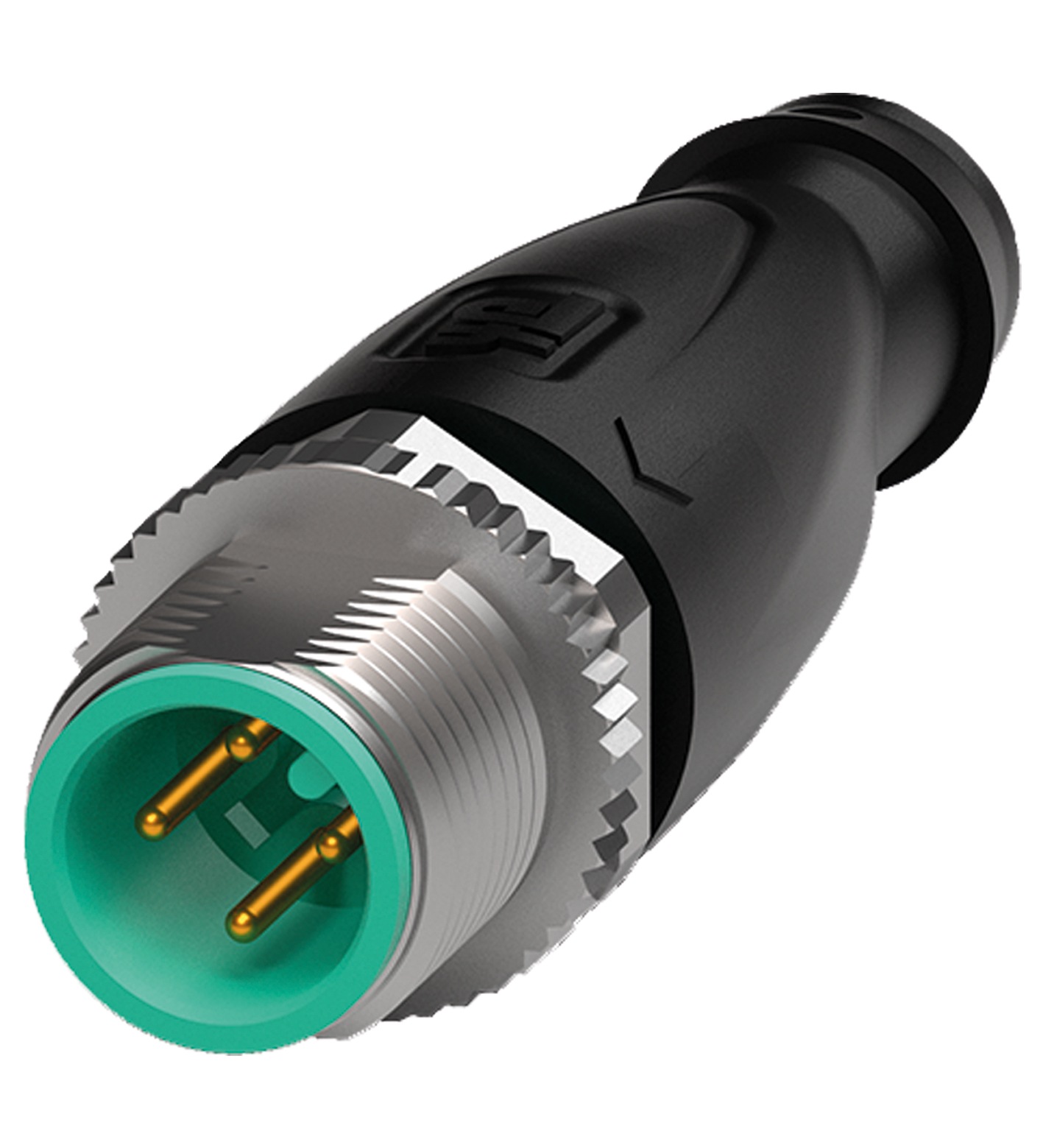

V1S-TR-B24

Terminal resistor. Terminal resistor M12 male straight A-coded 4-pin, for DeviceNet, CANopen. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins4CodingA-codedCustomizationpin 2 and 4 bridged: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Customization: pin 2 and 4 bridged. Operating voltage: max. 30 V DC. Operating current: max. 4 A per contact. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. UL File Number: E231213. Ambient temperature: -40 ... 90 °C (-40 ... 194 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP68 / IP69. Mass: 8 g. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: gold plated (Au). Flammability: V-2

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
