Pepperl Fuchs

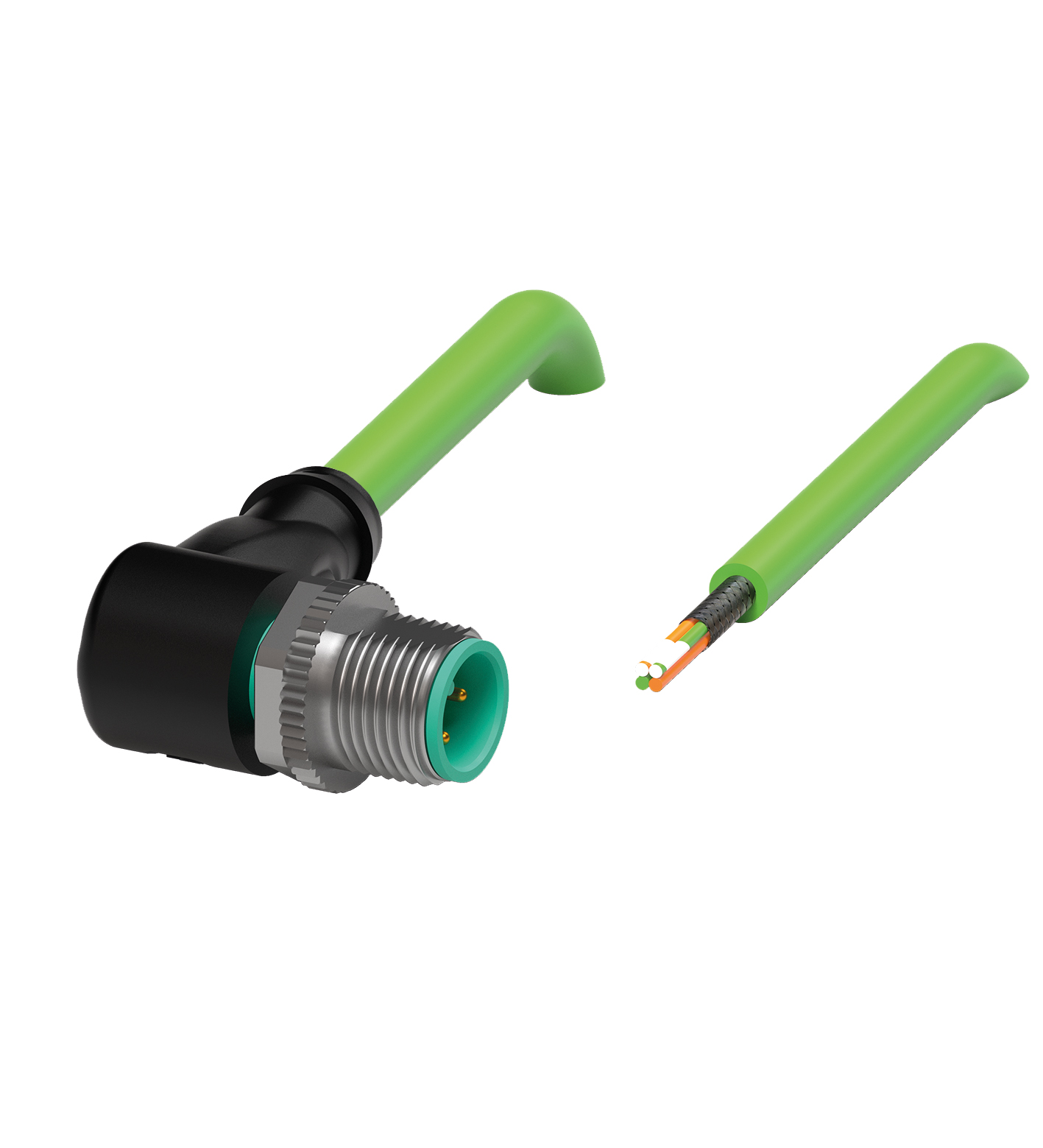

V1SD-W-GN2M-PUR-E2S

Cable connector, Ethernet. Ethernet bus cable male cordset single-ended M12 angled D-coded 4-pin, PUR cable green, Cat5e, shielded, UL approved. Connector 1: . ConnectionplugConstruction typeM12StyleangledLockingscrew connectionNumber of pins4CodingD-coded: . Connection: plug. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 4. Coding: D-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 250 V AC/DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Component category: CAT5 (IEC 11801) , CAT5e (IEC 61156-6). Flammability: IEC 60332-1-2 / UL 1581 / ISO 6722-1 5.22 (UN ECE-R 118.01). Halogen-free: IEC 60754-1. Chemical resistance: DIN EN 60811-2-1. UV resistance: UL 1581 section 1200. Microbial resistance: DIN EN 50525-2-21 / DIN VDE 0282-10. Oil resistance: DIN EN 60811-2-1. UL approval: AWM STYLE 21161 AWM I/II A/B 80°C 300V FT1 (cable). UL File Number: E231213. Ambient temperature: . Plug connector-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-30 ... 70 °C (-22 ... 158 °F): . Plug connector: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -30 ... 70 °C (-22 ... 158 °F). Plug connector: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to screw connection: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP66 / IP68 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.9 mmBending radius> 12 x cable diameter, movable installation > 6 x cable diameter, fixed installationSheath stripping forcemax. 50 N / 100 mmSheath colorgreen (similar to RAL 6018)Number of cores4Core cross section0.15 mm2 / 26 AWGCores colorCore 1: white/orange Core 2: white/green Core 3: orange Core 4: greenCore construction19 x 0.1 mm ∅ twisted quadShieldaluminum-lined polyester foilTinned copper braiding, 85 % coverageLengthL2 mCable codeLi 9Y 11YM 4 x 0,15: . Sheath diameter: 4.9 mm. Bending radius: > 12 x cable diameter, movable installation > 6 x cable diameter, fixed installation. Sheath stripping force: max. 50 N / 100 mm. Sheath color: green (similar to RAL 6018). Number of cores: 4. Core cross section: 0.15 mm2 / 26 AWG. Cores color: Core 1: white/orange Core 2: white/green Core 3: orange Core 4: green. Core construction: 19 x 0.1 mm ∅ twisted quad. Shield: aluminum-lined polyester foilTinned copper braiding, 85 % coverage. Length: 2 m. Cable code: Li 9Y 11YM 4 x 0,15. Drag chain suitability: . Drag chain cyclesmax. 1000000Motion velocitymax. 3 m/sTraverse distancemax. 4.5 mAccelerationmax. 3 m/s2: . Drag chain cycles: max. 1000000. Motion velocity: max. 3 m/s. Traverse distance: max. 4.5 m. Acceleration: max. 3 m/s2. Mass: 78 g. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPUV resistanceyesOil resistanceyesMicrobial resistanceyesFlammabilityFT1 complies with UN ECE-R 118.01: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. UV resistance: yes. Oil resistance: yes. Microbial resistance: yes. Flammability: FT1 complies with UN ECE-R 118.01. Cable marking sleeve: 1x PUR transparent , fixed to cable

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
