V23-G-T-0,3M-PUR-TP-V19/V19-G

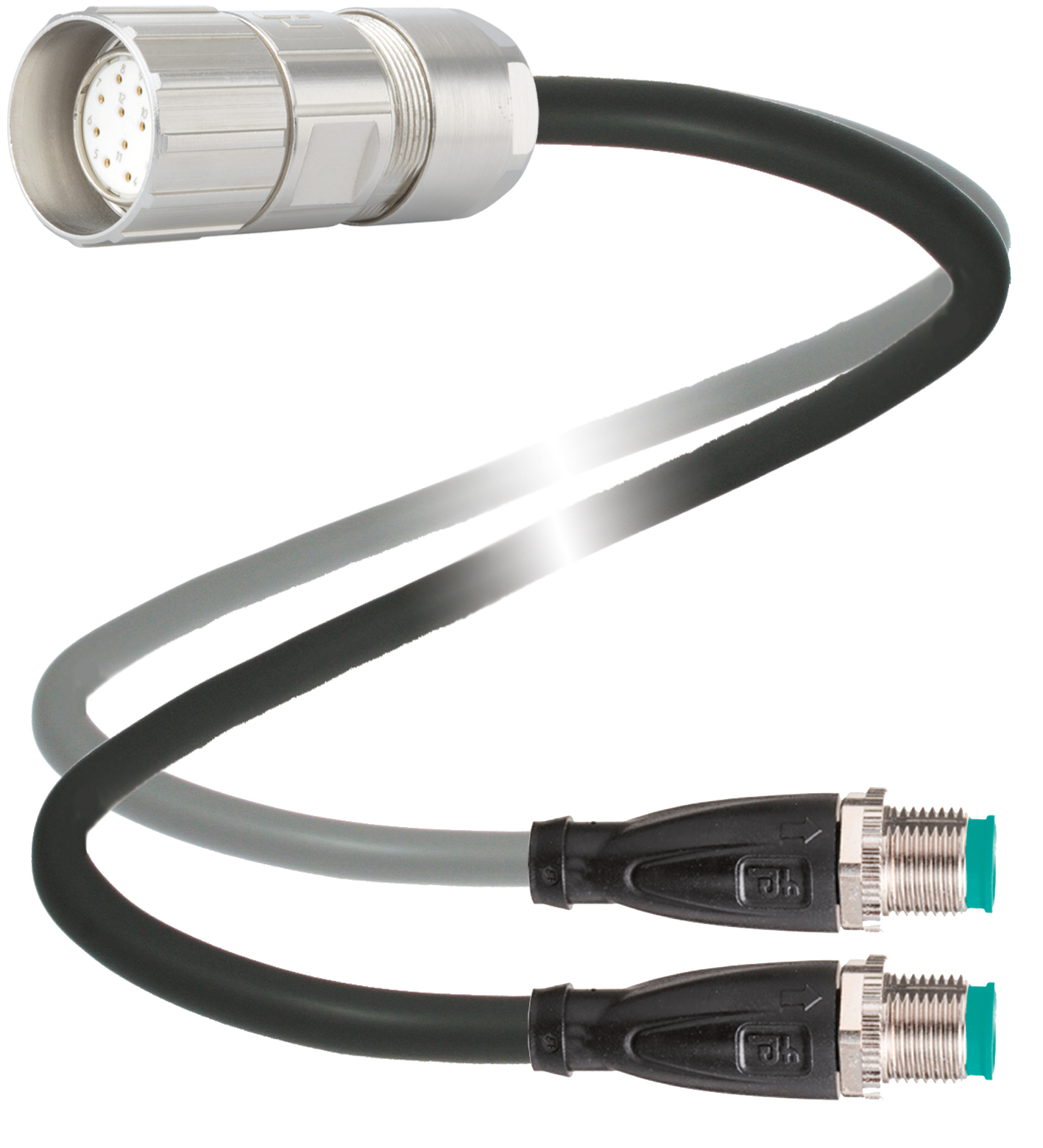

Y connection cable. Y connection cable M23 socket straight 12-pin to 2x M12 plug straight A-coded 8-pin, 1x PVC cable grey, twisted pairs, overall shield / 1x PUR cable black, shielded. Connector 1: ....

Y connection cable. Y connection cable M23 socket straight 12-pin to 2x M12 plug straight A-coded 8-pin, 1x PVC cable grey, twisted pairs, overall shield / 1x PUR cable black, shielded. Connector 1: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: A-coded. Connector 3: . ConnectionsocketConstruction typeM23StylestraightLockingscrew connectionNumber of pins12: . Connection: socket. Construction type: M23. Style: straight. Locking: screw connection. Number of pins: 12. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 8 A / max. 2 A per pin. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 1581; DIN EN 60332-2-2 ; IEC 60332-1-2. Ambient temperature: . Connector 1-40 ... 90 °C (-40 ... 194 °F)Connector 2-40 ... 90 °C (-40 ... 194 °F)Connector 3-40 ... 125 °C (-40 ... 257 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-5 ... 70 °C (23 ... 158 °F): . Connector 1: -40 ... 90 °C (-40 ... 194 °F). Connector 2: -40 ... 90 °C (-40 ... 194 °F). Connector 3: -40 ... 125 °C (-40 ... 257 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -5 ... 70 °C (23 ... 158 °F). Pollution degree: 3. Connector 1: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to screw connectionDegree of protectionIP68 / IP69: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP68 / IP69. Connector 2: . Tightening torque0.6 NmLoosening protectionavailableTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100Shieldingshield connected to screw connectionDegree of protectionIP68 / IP69: . Tightening torque: 0.6 Nm. Loosening protection: available. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP68 / IP69. Connector 3: . Tool installationstraight knurling and hexagon nut SW = 24 mmShieldingshield connected to screw connectionDegree of protectionIP67 / IP69K: . Tool installation: straight knurling and hexagon nut SW = 24 mm. Shielding: shield connected to screw connection. Degree of protection: IP67 / IP69K. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6 mm / 6.2 mmBending radius> 15 x cable diameter, movable installation > 6 x cable diameter, fixed installationSheath colorblack / greyNumber of cores8Core cross section0.25 mm2 / 0.14 mm2Cores colorCore 1-7: SSI BUCore 2-2: SSI BNCore 3-5: SSI GYCore 4-6: SSI PKCore 5-3: SSI GNCore 6-4: SSI YECore 7-2: HTL BNCore 8-6: HTL PKCore 9-7: HTL BUCore 10-4: HTL YECore 11-3: HTL GNCore 12-5: HTL GYCore construction32 x 0.1 mm ∅ / 4 x 2 x 0.14 mm2 twisted pairs , overall shieldShieldtinned copper braidingLengthL0.3 mCable codeLi 9Y C 11Y 8 x 0,25 / Li Y CY 4 x 2 x 0,14: . Sheath diameter: 6 mm / 6.2 mm. Bending radius: > 15 x cable diameter, movable installation > 6 x cable diameter, fixed installation. Sheath color: black / grey. Number of cores: 8. Core cross section: 0.25 mm2 / 0.14 mm2. Cores color: Core 1-7: SSI BUCore 2-2: SSI BNCore 3-5: SSI GYCore 4-6: SSI PKCore 5-3: SSI GNCore 6-4: SSI YECore 7-2: HTL BNCore 8-6: HTL PKCore 9-7: HTL BUCore 10-4: HTL YECore 11-3: HTL GNCore 12-5: HTL GY. Core construction: 32 x 0.1 mm ∅ / 4 x 2 x 0.14 mm2 twisted pairs , overall shield. Shield: tinned copper braiding. Length: 0.3 m. Cable code: Li 9Y C 11Y 8 x 0,25 / Li Y CY 4 x 2 x 0,14. Mass: 149.11 g. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: gold plated (Au). Flammability: V-2. Connector 2: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: gold plated (Au). Flammability: V-2. Connector 3: . Screw connectionZinc diecast, nickel-platedBodyZinc diecast, nickel-platedSealNBRContact surfacegold plated (Au): . Screw connection: Zinc diecast, nickel-plated. Body: Zinc diecast, nickel-plated. Seal: NBR. Contact surface: gold plated (Au). Cable: . SheathingPUR / PVCCore insulationPP / PVCFlammabilityflame retardant: . Sheathing: PUR / PVC. Core insulation: PP / PVC. Flammability: flame retardant

Brand	Pepperl Fuchs
Lifecycle status	active
