Pepperl Fuchs

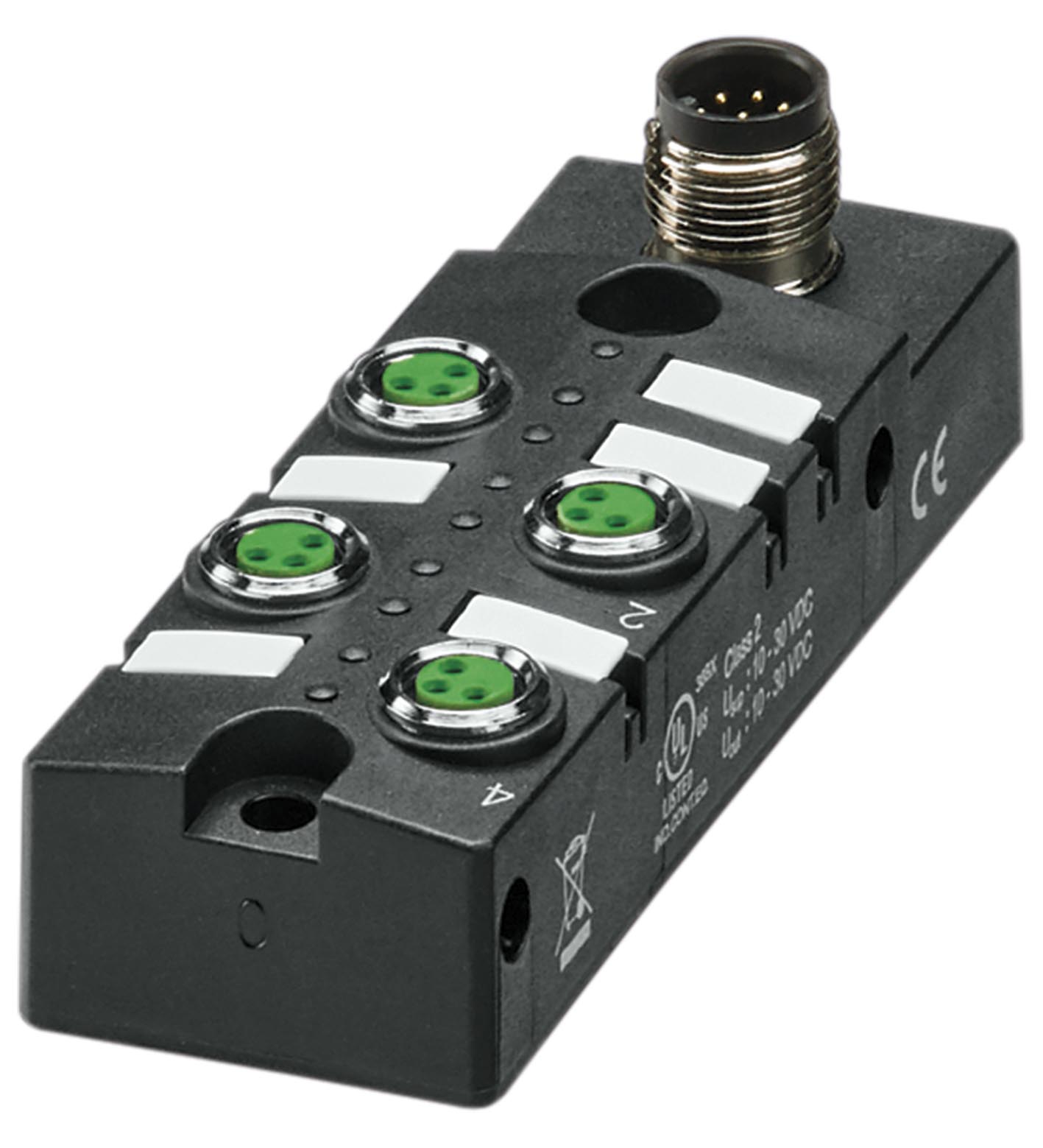

V3-4A-E2-V19

Splitter box M8. Splitter box 4 x M8 single allocation, with 8-pole M12 plug. Connector 1: . ConnectionsocketConstruction type4x M8Lockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Construction type: 4x M8. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeM12Lockingscrew connectionNumber of pins8CodingA-coded: . Connection: plug. Construction type: M12. Locking: screw connection. Number of pins: 8. Coding: A-coded. UL File Number: E223772. LED green: supply voltage each module. LED yellow: I/O status indication. Operating voltage: 24 V DC, max. 30 V DC. Operating current: ≤ 5 mA per channel indication element. Current loading capacity: ≤ 2 A per channel,≤ 2 A per plug-in station,≤ 2 A total current per splitter box. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104 connector M12 x 1 : IEC 61076-2-101. Flammability: UL 94. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Connector 1: . Tightening torque0.2 NmMating cyclesmin. 100: . Tightening torque: 0.2 Nm. Mating cycles: min. 100. Connector 2: . Tightening torque0.4 NmMating cyclesmin. 100: . Tightening torque: 0.4 Nm. Mating cycles: min. 100. Degree of protection: IP67. Mass: 74.87 g. Plug connector: . Screw connectionCu alloy , nickel-platedBodyPBT, blackSealFKMContact surfaceNi/AuFlammabilityV-0: . Screw connection: Cu alloy , nickel-plated. Body: PBT, black. Seal: FKM. Contact surface: Ni/Au. Flammability: V-0. Note: During installation of cables respect the maximum allowed bending radius. Excessive bending forces endanger the degree of protection.Secure the connector from mechanical forces, for example by means of cable ties.Close unused plug-in slots prior to commissioning. Respective sealing elements you will find under "accessories".

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request
