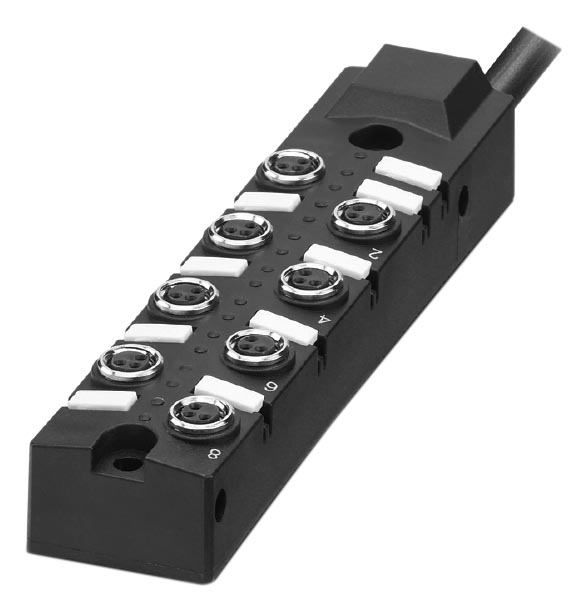

V3-8A-E2-5M-PUR

Splitter box M8. Splitter box 8 x M8 single allocation, with trunk cable. Connector 1: . ConnectionsocketConstruction type8x M8Lockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket...

Splitter box M8. Splitter box 8 x M8 single allocation, with trunk cable. Connector 1: . ConnectionsocketConstruction type8x M8Lockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Construction type: 8x M8. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. UL File Number: E223772. LED green: supply voltage each module. LED yellow: I/O status indication. Operating voltage: 24 V DC, max. 30 V DC. Operating current: ≤ 5 mA per channel indication element. Current loading capacity: ≤ 2 A per channel,≤ 2 A per plug-in station,≤ 6 A total current per splitter box. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. Flammability: UL 94. UL approval: AWM STYLE 20549 (cable). Ambient temperature: . Plug connector-25 ... 80 °C (-13 ... 176 °F)Cable, fixed installation-40 ... 90 °C (-40 ... 194 °F)Cable, flexing-5 ... 80 °C (23 ... 176 °F): . Plug connector: -25 ... 80 °C (-13 ... 176 °F). Cable, fixed installation: -40 ... 90 °C (-40 ... 194 °F). Cable, flexing: -5 ... 80 °C (23 ... 176 °F). Plug connector: . Tightening torque0.2 NmMating cyclesmin. 100: . Tightening torque: 0.2 Nm. Mating cycles: min. 100. Degree of protection: IP67. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter7.9 mmBending radius> 10 x cable diameter, movable installation > 7.5 x cable diameter, fixed installationSheath colorblack (similar to RAL 9005)CoresSignal wires (4): 8 x 0.34 mm2 Supply line (1, 3): 2 x 0.75 mm2Cores colorCore 1/4 (A): white Core 2/4 (A): green Core 3/4 (A): yellow Core 4/4 (A): grey Core 5/4 (A): pink Core 6/4 (A): red Core 7/4 (A): black Core 8/4 (A): violetCore 1 ... 8/1 (+24 V): brownCore 1 ... 8/3 (0 V): blueCore constructionSignal line (4): 19 x 0.15 mm Supply line (1, 3): 42 x 0.15 mmLengthL5 mCable codeLi YY 11Y-HF: . Sheath diameter: 7.9 mm. Bending radius: > 10 x cable diameter, movable installation > 7.5 x cable diameter, fixed installation. Sheath color: black (similar to RAL 9005). Cores: Signal wires (4): 8 x 0.34 mm2 Supply line (1, 3): 2 x 0.75 mm2. Cores color: Core 1/4 (A): white Core 2/4 (A): green Core 3/4 (A): yellow Core 4/4 (A): grey Core 5/4 (A): pink Core 6/4 (A): red Core 7/4 (A): black Core 8/4 (A): violetCore 1 ... 8/1 (+24 V): brownCore 1 ... 8/3 (0 V): blue. Core construction: Signal line (4): 19 x 0.15 mm Supply line (1, 3): 42 x 0.15 mm. Length: 5 m. Cable code: Li YY 11Y-HF. Drag chain suitability: . Drag chain cyclesmin. 1500000Motion velocitymax. 2 m/sTraverse distance2 m: . Drag chain cycles: min. 1500000. Motion velocity: max. 2 m/s. Traverse distance: 2 m. Mass: 627.5 g. PWIS free: yes. Plug connector: . Screw connectionCu alloy , nickel-platedBodyPBT, blackSealFKMContact surfaceNi/AuFlammabilityV-0: . Screw connection: Cu alloy , nickel-plated. Body: PBT, black. Seal: FKM. Contact surface: Ni/Au. Flammability: V-0. Cable: . SheathingPURCore insulationPVCChemical resistancegood: . Sheathing: PUR. Core insulation: PVC. Chemical resistance: good. Note: During installation of cables respect the maximum allowed bending radius. Excessive bending forces endanger the degree of protection.Secure the connector from mechanical forces, for example by means of cable ties.Close unused plug-in slots prior to commissioning. Respective sealing elements you will find under "accessories".

Brand	Pepperl Fuchs
Lifecycle status	active
