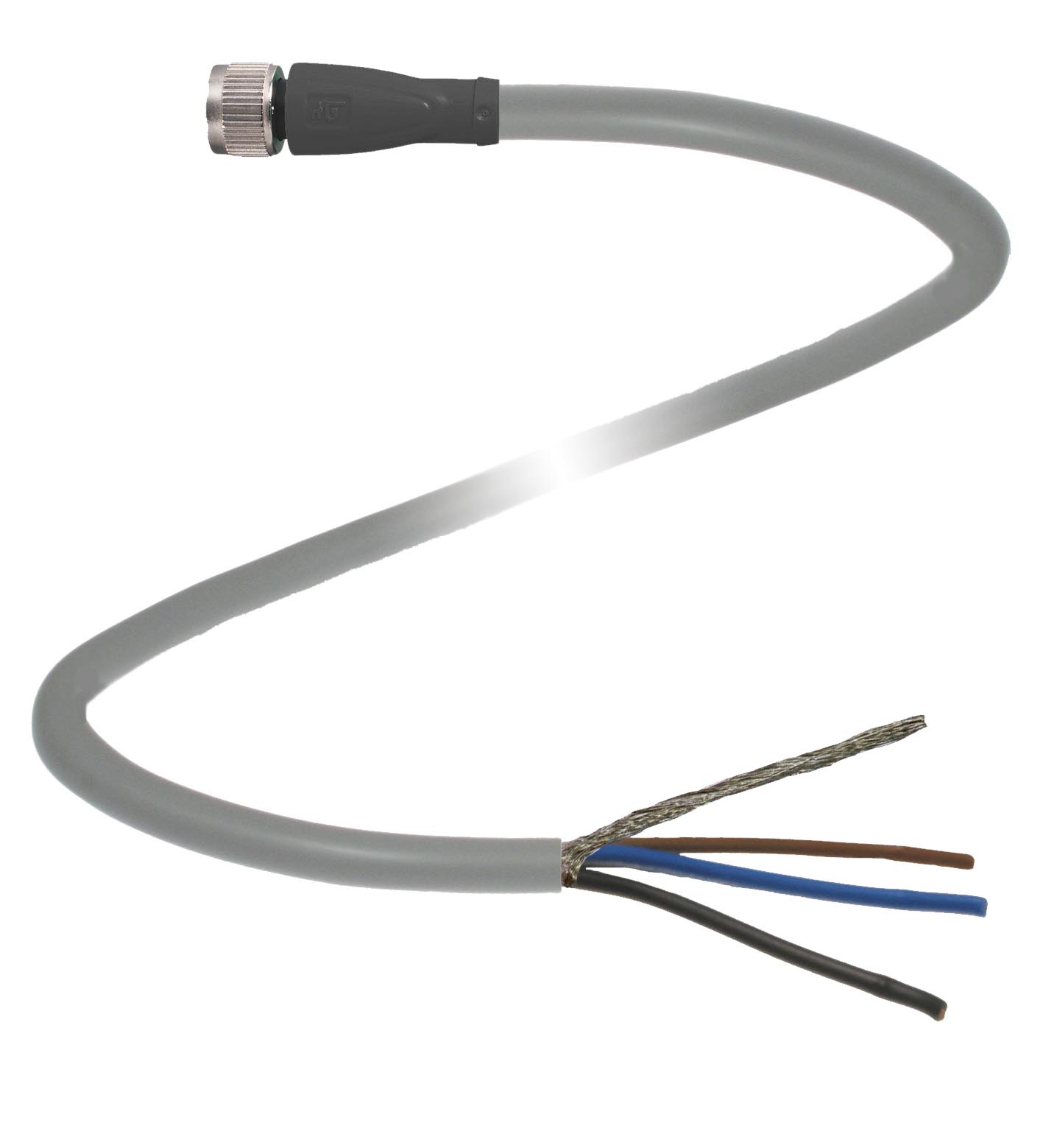

V3-GM-25M-PVC-ABG-Y288959

Cable socket, shielded. Female cordset single-ended, M8, 3-pin, shielded, PVC cable. Number of pins: 3 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M8. Connection 2: cab...

Cable socket, shielded. Female cordset single-ended, M8, 3-pin, shielded, PVC cable. Number of pins: 3 + shield. Connection 1: socket. Construction type 1: straight. Threading 1: M8. Connection 2: cable end. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 3 A. Contact resistance: < 10 mΩ. Standard conformity: . Degree of protectionEN 60529:2000FlammabilityGrip: UL 94Specificationconnector M8 x 1 : IEC 61076-2-104: . Degree of protection: EN 60529:2000. Flammability: Grip: UL 94. Specification: connector M8 x 1 : IEC 61076-2-104. Ambient temperature: Body: -40 ... 90 °C (-40 ... 194 °F) cable, fixed installation: -30 ... 80 °C (-22 ... 176 °F) cable, movable installation: -15 ... 80 °C (5 ... 176 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePVCSlotted nutDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PVC. Slotted nut: Diecast zinc. Core insulation: PP. Cable: fine-strand, flexible. Sheath diameter∅ 4.8 mmBending radius> 10 x cable diameter, movable installation 5 x cable diameter, single bendColorgreyNumber of cores3Core cross section0.34 mm2Conductor construction19 x 0.15 mm ∅Shieldgrid covering 85 %LengthL25 m: . Sheath diameter: ∅ 4.8 mm. Bending radius: > 10 x cable diameter, movable installation 5 x cable diameter, single bend. Color: grey. Number of cores: 3. Core cross section: 0.34 mm2. Conductor construction: 19 x 0.15 mm ∅. Shield: grid covering 85 %. Length: 25 m. Mass: 956.67 g. Flammability: . Contact carrierHBHousingV-2: . Contact carrier: HB. Housing: V-2

Brand	Pepperl Fuchs
Lifecycle status	active
