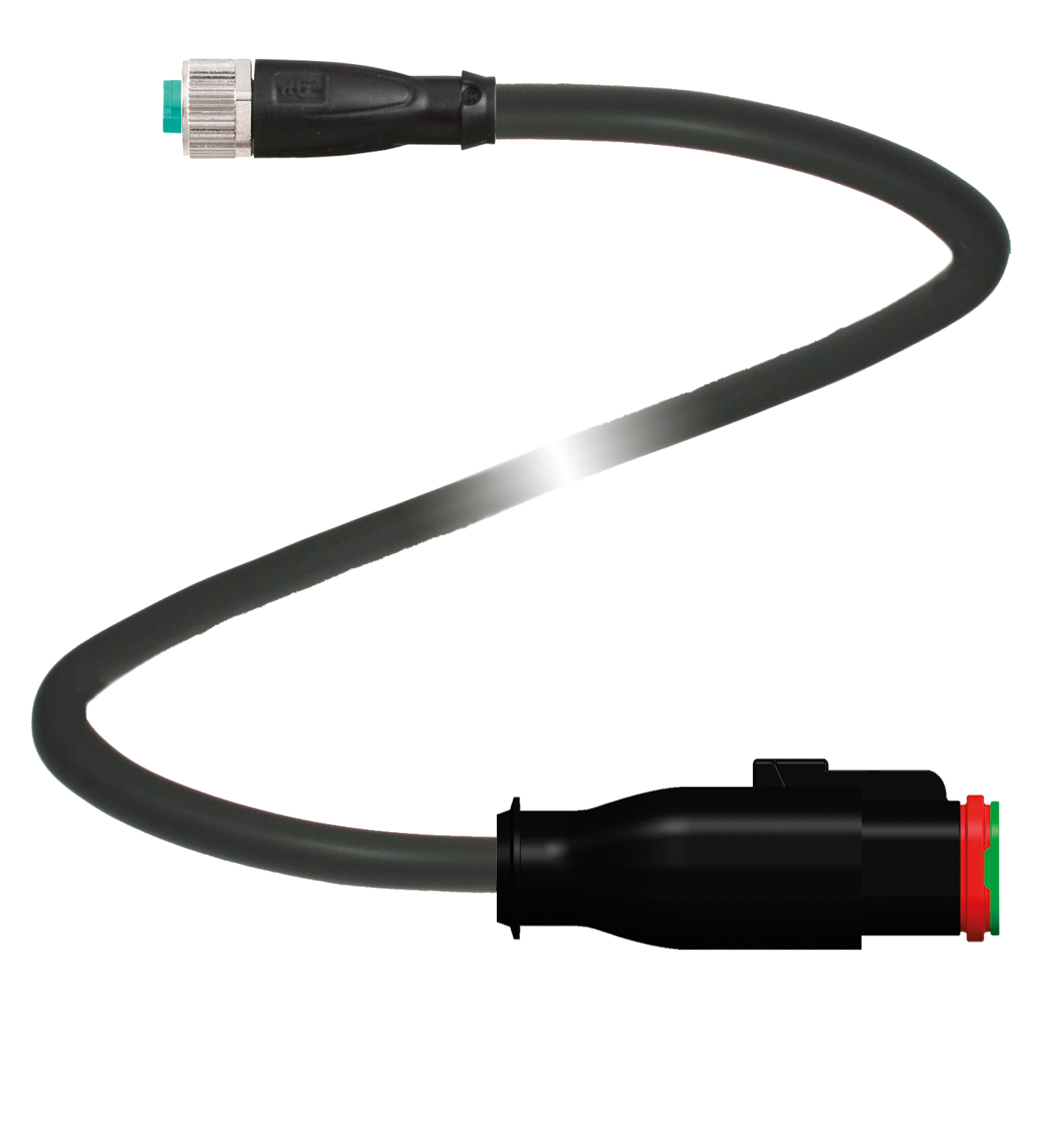

V3-GM-BK1M-PVC-U-DT6S-G-Y80097

Adapter cable. Adapter cable M8 socket straight A-coded 3-pin to Deutsch socket straight 6-pin, PVC cable black. Customization: customer-specific pin assignment. Connector 1: . ConnectionsocketConstru...

Adapter cable. Adapter cable M8 socket straight A-coded 3-pin to Deutsch socket straight 6-pin, PVC cable black. Customization: customer-specific pin assignment. Connector 1: . ConnectionsocketConstruction typeM8StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 2: . ConnectionsocketConstruction typeDeutsch connectorsStylestraightLockingsnap lockingNumber of pins6: . Connection: socket. Construction type: Deutsch connectors. Style: straight. Locking: snap locking. Number of pins: 6. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 3 A. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. Flammability: UL 1581; DIN EN 60332-2-2. Ambient temperature: . Connector 1-40 ... 90 °C (-40 ... 194 °F)Connector 2-40 ... 125 °C (-40 ... 257 °F)Cable, fixed installation-25 ... 80 °C (-13 ... 176 °F)Cable, flexing-5 ... 80 °C (23 ... 176 °F): . Connector 1: -40 ... 90 °C (-40 ... 194 °F). Connector 2: -40 ... 125 °C (-40 ... 257 °F). Cable, fixed installation: -25 ... 80 °C (-13 ... 176 °F). Cable, flexing: -5 ... 80 °C (23 ... 176 °F). Pollution degree: 3. Connector 1: . Tightening torque0.4 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 9 mmMating cyclesmin. 100Degree of protectionIP66 / IP68: . Tightening torque: 0.4 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 9 mm. Mating cycles: min. 100. Degree of protection: IP66 / IP68. Connector 2: . Loosening protectionintegratedDegree of protectionIP68: . Loosening protection: integrated. Degree of protection: IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.3 mmBending radius> 15 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 50 N / 300 mmSheath colorblack (similar to RAL 9005)Number of cores3Core cross section0.34 mm2Cores colorCore 1-1: brown Core 3-3: blue Core 4-5: blackCore construction19 x 0.15 mm ∅LengthL1 mCable codeLi YY 3 x 0,34: . Sheath diameter: 4.3 mm. Bending radius: > 15 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 50 N / 300 mm. Sheath color: black (similar to RAL 9005). Number of cores: 3. Core cross section: 0.34 mm2. Cores color: Core 1-1: brown Core 3-3: blue Core 4-5: black. Core construction: 19 x 0.15 mm ∅. Length: 1 m. Cable code: Li YY 3 x 0,34. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Connector 2: . BodyPA, blackContact surfaceNiFlammabilityV-0: . Body: PA, black. Contact surface: Ni. Flammability: V-0. Cable: . SheathingPVCCoresbare copper (Cu)Core insulationPVCFlammabilityFT1: . Sheathing: PVC. Cores: bare copper (Cu). Core insulation: PVC. Flammability: FT1

Brand	Pepperl Fuchs
Lifecycle status	active
