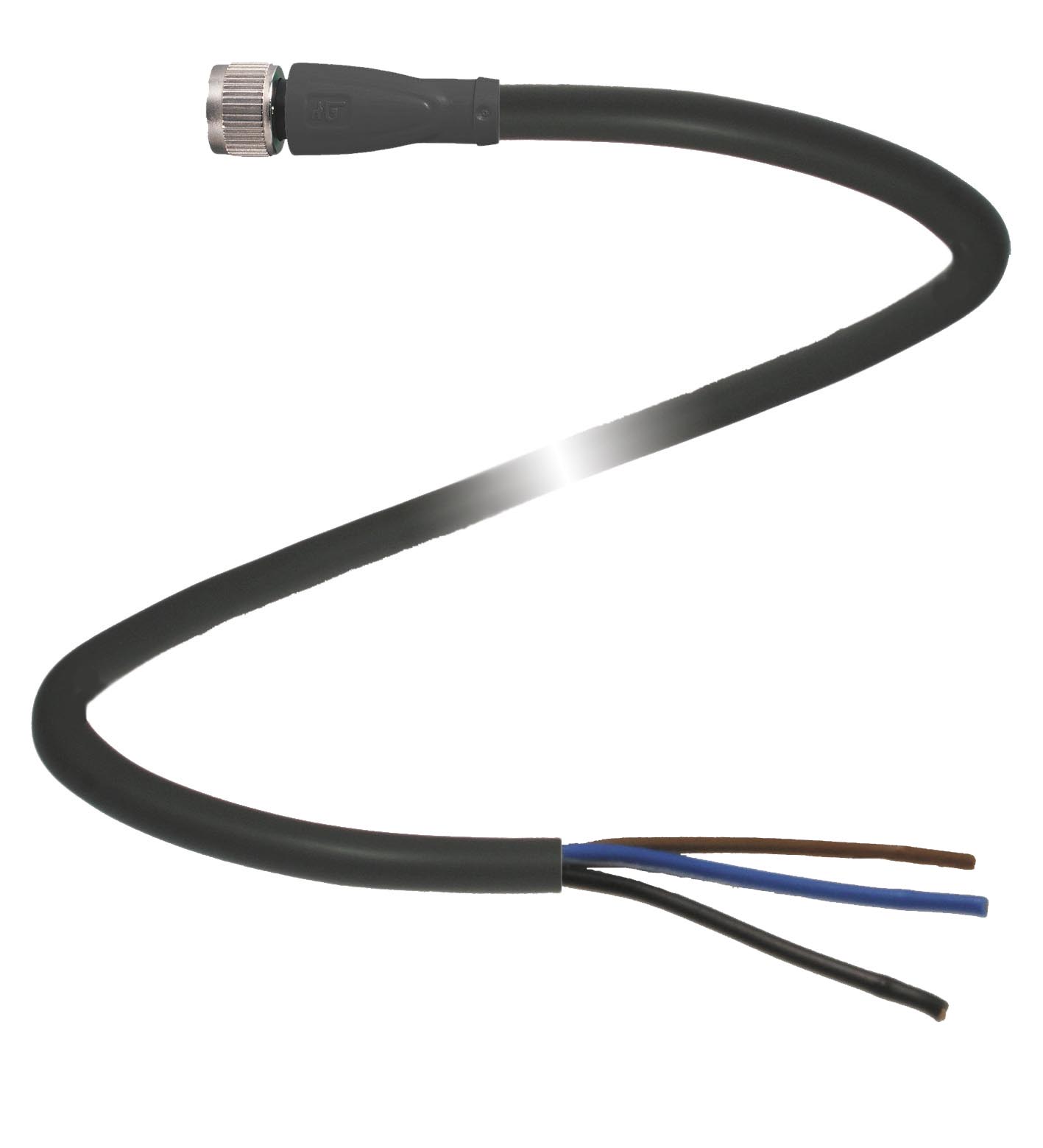

V3-GM-BK5M-PUR-Y70100963

Female connector. Female cordset single-ended, M8, 3-pin, PUR cable. Number of pins: 3. Connection 1: socket. Construction type 1: straight. Threading 1: M8. Connection 2: cable end. Operating voltage...

Female connector. Female cordset single-ended, M8, 3-pin, PUR cable. Number of pins: 3. Connection 1: socket. Construction type 1: straight. Threading 1: M8. Connection 2: cable end. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 3 A. Volume resistance: < 5 mΩ. Standard conformity: . Degree of protectionEN 60529:2000FlammabilityGrip: UL 94Specificationconnector M8 x 1 : IEC 61076-2-104: . Degree of protection: EN 60529:2000. Flammability: Grip: UL 94. Specification: connector M8 x 1 : IEC 61076-2-104. Ambient temperature: Body: -40 ... 90 °C (-40 ... 194 °F) cable, fixed installation: -25 ... 80 °C (-13 ... 176 °F) cable, movable installation: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67. Cable code: Li 9Y 11YM 3 x 0,14. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePURSlotted nutDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PUR. Slotted nut: Diecast zinc. Core insulation: PP. Cable: . Sheath diameter∅ 3.3 mmColorblackNumber of cores3Core cross section0.14 mm2Conductor construction72 x 0.05 mm ∅LengthL5 m: . Sheath diameter: ∅ 3.3 mm. Color: black. Number of cores: 3. Core cross section: 0.14 mm2. Conductor construction: 72 x 0.05 mm ∅. Length: 5 m. Mass: 70.66 g. Flammability: . Contact carrier94 HBHousing94 V-2: . Contact carrier: 94 HB. Housing: 94 V-2

Brand	Pepperl Fuchs
Lifecycle status	active
