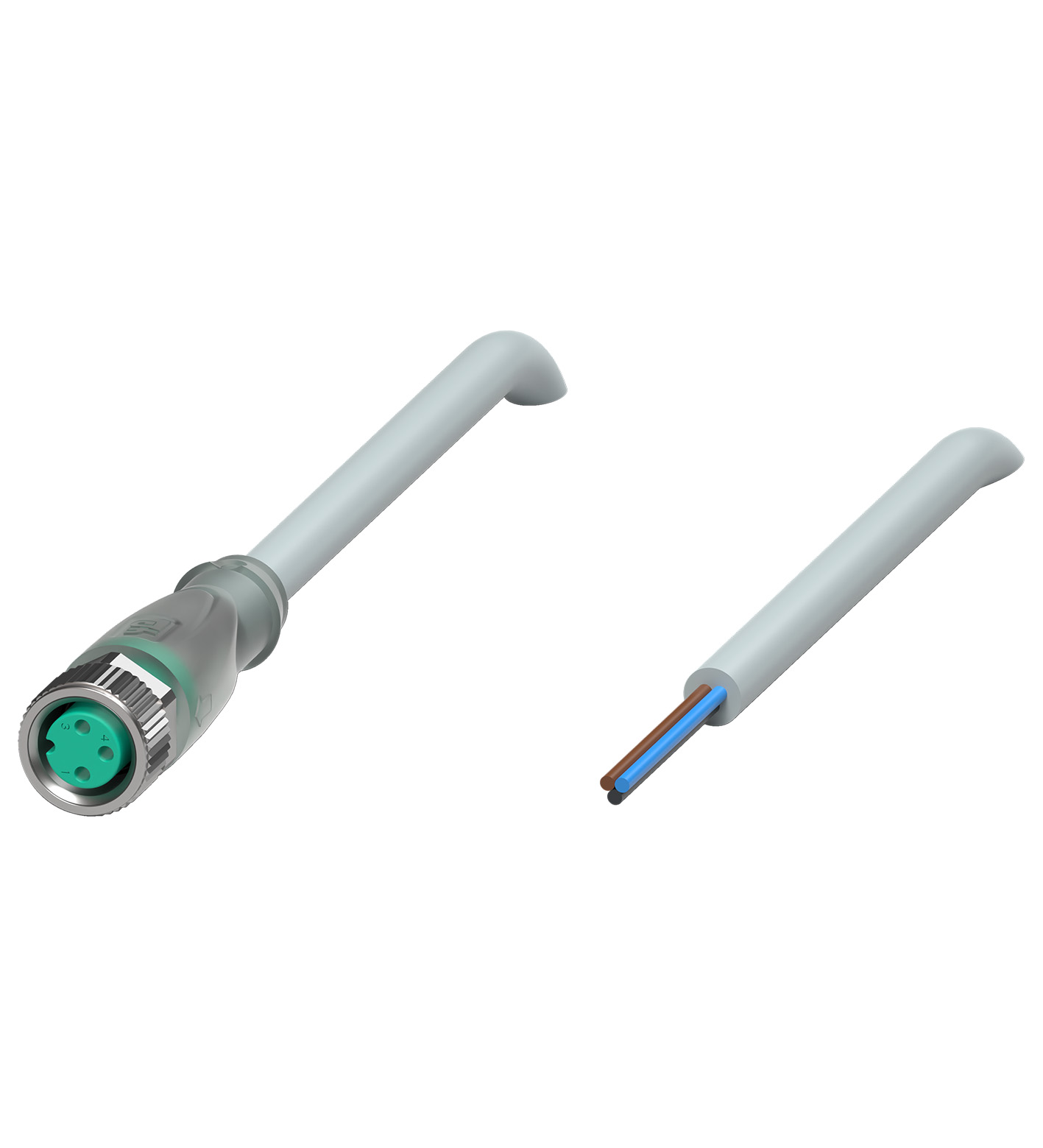

V3-GM-E2-2M-PUR

Female cordset. Female cordset single-ended M8 straight A-coded, LED 3-pin, PUR cable grey. Connector 1: . ConnectionsocketConstruction typeM8StylestraightLockingscrew connectionNumber of pins3CodingA...

Female cordset. Female cordset single-ended M8 straight A-coded, LED 3-pin, PUR cable grey. Connector 1: . ConnectionsocketConstruction typeM8StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. LED green: Operating display. LED yellow: Functional display pin 4. Operating voltage: max. 24 V DC -20 % / +25 %. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. Halogen-free: IEC 60754-1. Ambient temperature: . Plug connector-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-20 ... 80 °C (-4 ... 176 °F): . Plug connector: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -20 ... 80 °C (-4 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 9 mmMating cyclesmin. 100: . Tightening torque: 0.4 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 9 mm. Mating cycles: min. 100. Degree of protection: IP66 / IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.3 mmBending radius> 15 x cable diameter, movable installation > 8 x cable diameter, fixed installationSheath stripping forcemax. 80 N / 500 mmSheath colorgrey (similar to RAL 7001)Number of cores3Core cross section0.25 mm2Cores colorCore 1: brown Core 3: blue Core 4: blackCore construction14 x 0.15 mm ∅LengthL2 mCable codeLi 9Y 11Y 3 x 0,25: . Sheath diameter: 4.3 mm. Bending radius: > 15 x cable diameter, movable installation > 8 x cable diameter, fixed installation. Sheath stripping force: max. 80 N / 500 mm. Sheath color: grey (similar to RAL 7001). Number of cores: 3. Core cross section: 0.25 mm2. Cores color: Core 1: brown Core 3: blue Core 4: black. Core construction: 14 x 0.15 mm ∅. Length: 2 m. Cable code: Li 9Y 11Y 3 x 0,25. Drag chain suitability: . Drag chain cyclesmax. 50 / dayMotion velocitymax. 0.3 m/s: . Drag chain cycles: max. 50 / day. Motion velocity: max. 0.3 m/s. Mass: 45.81 g. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, transparentSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, transparent. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPChemical resistancegoodMicrobial resistanceyesHydrolysis resistanceyes: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Chemical resistance: good. Microbial resistance: yes. Hydrolysis resistance: yes. Cable marking sleeve: 1x PUR transparent , fixed to cable

Brand	Pepperl Fuchs
Lifecycle status	active
