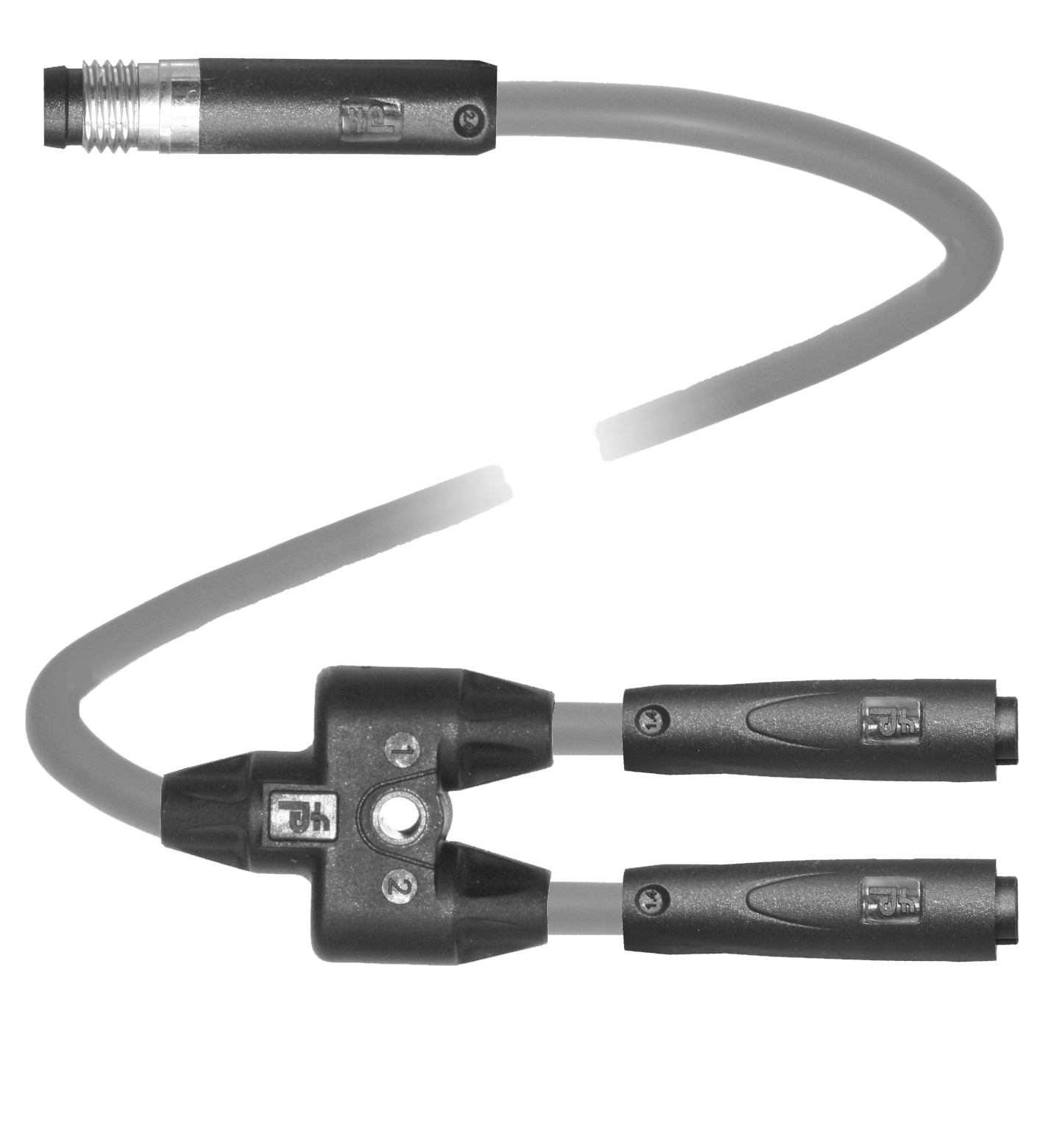

V3-GR-0,3M-PVC-TEE-0,3M-V3S-GR

Y connection cable. Y connection cable M8 plug snap-lock straight A-coded 3-pin to 2x M8 socket snap-lock straight A-coded 3-pin, PVC cable grey. Connector 1: . ConnectionplugConstruction typeM8Styles...

Y connection cable. Y connection cable M8 plug snap-lock straight A-coded 3-pin to 2x M8 socket snap-lock straight A-coded 3-pin, PVC cable grey. Connector 1: . ConnectionplugConstruction typeM8StylestraightLockingsnap lockingNumber of pins3CodingA-coded: . Connection: plug. Construction type: M8. Style: straight. Locking: snap locking. Number of pins: 3. Coding: A-coded. Connector 2: . ConnectionsocketConstruction typeM8StylestraightLockingsnap lockingNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: straight. Locking: snap locking. Number of pins: 3. Coding: A-coded. Connector 3: . ConnectionsocketConstruction typeM8StylestraightLockingsnap lockingNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: straight. Locking: snap locking. Number of pins: 3. Coding: A-coded. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 3 A. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. Ambient temperature: . Plug connector-25 ... 90 °C (-13 ... 194 °F)Cable, fixed installation-40 ... 70 °C (-40 ... 158 °F)Cable, flexing-5 ... 70 °C (23 ... 158 °F): . Plug connector: -25 ... 90 °C (-13 ... 194 °F). Cable, fixed installation: -40 ... 70 °C (-40 ... 158 °F). Cable, flexing: -5 ... 70 °C (23 ... 158 °F). Pollution degree: 3. Plug connector: . Mating cyclesmin. 100: . Mating cycles: min. 100. Degree of protection: IP65. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.3 mmBending radius> 15 x cable diameter, movable installation > 10 x cable diameter, fixed installationSheath stripping forcemax. 80 N / 300 mmSheath colorgrey (similar to RAL 7001)Number of cores3Core cross section0.25 mm2Cores colorCore 1: brown Core 3: blue Core 4: blackCore construction14 x 0.15 mm ∅LengthLL1 = 300 mmL2 = 300 mmL3 = 300 mmCable codeLi YY 3 x 0,25: . Sheath diameter: 4.3 mm. Bending radius: > 15 x cable diameter, movable installation > 10 x cable diameter, fixed installation. Sheath stripping force: max. 80 N / 300 mm. Sheath color: grey (similar to RAL 7001). Number of cores: 3. Core cross section: 0.25 mm2. Cores color: Core 1: brown Core 3: blue Core 4: black. Core construction: 14 x 0.15 mm ∅. Length: L1 = 300 mmL2 = 300 mmL3 = 300 mm. Cable code: Li YY 3 x 0,25. Mass: 40 g. Plug connector: . BodyPUR, blackContact surfaceAuFlammabilityV-2: . Body: PUR, black. Contact surface: Au. Flammability: V-2. Cable: . SheathingPVCCore insulationPVCFlammabilityflame-resistant: . Sheathing: PVC. Core insulation: PVC. Flammability: flame-resistant

Brand	Pepperl Fuchs
Lifecycle status	active
