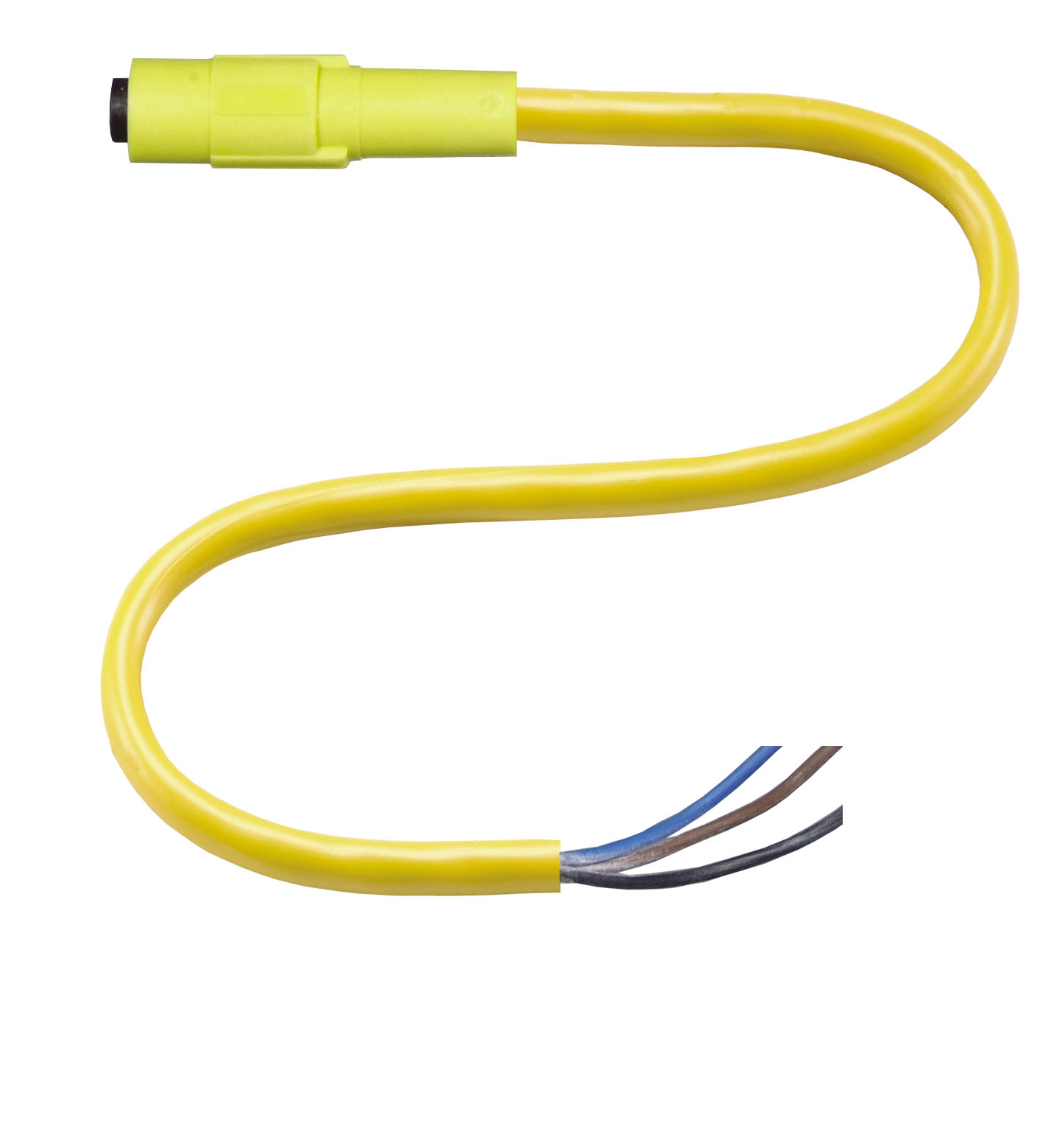

V3-GR-YE2M-PUR

Female connector. Cable socket, M8, 3-pin, PUR cable. Number of pins: 3. Connection 1: socket. Construction type 1: straight. Threading 1: M8 snap locking. Connection 2: cable end. Operating voltage:...

Female connector. Cable socket, M8, 3-pin, PUR cable. Number of pins: 3. Connection 1: socket. Construction type 1: straight. Threading 1: M8 snap locking. Connection 2: cable end. Operating voltage: max. 125 V DC. Test voltage: > 1500 V eff AC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. UL approval: cULus Listed, General Purpose. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Pin diameter: 1 mm. Degree of protection: IP67 / IP68 / IP69k. Material: . ContactsCuSnContact surfaceNi/AuBodyTPU , yellowCablePURCore insulationPVC: . Contacts: CuSn. Contact surface: Ni/Au. Body: TPU , yellow. Cable: PUR. Core insulation: PVC. Cable: fine-strand, flexible. Sheath diameter∅ 4.4 mmBending radius10 x cable diameterColoryellowCores3 x 0.25 mm2LengthL2 m: . Sheath diameter: ∅ 4.4 mm. Bending radius: 10 x cable diameter. Color: yellow. Cores: 3 x 0.25 mm2. Length: 2 m. Mass: 70 g. Flammability: . Contact carrier94 V-2Housing94 V-2CableVW-1 flame rating from UL: . Contact carrier: 94 V-2. Housing: 94 V-2. Cable: VW-1 flame rating from UL. Note: M8 without thread

Brand	Pepperl Fuchs
Lifecycle status	active
