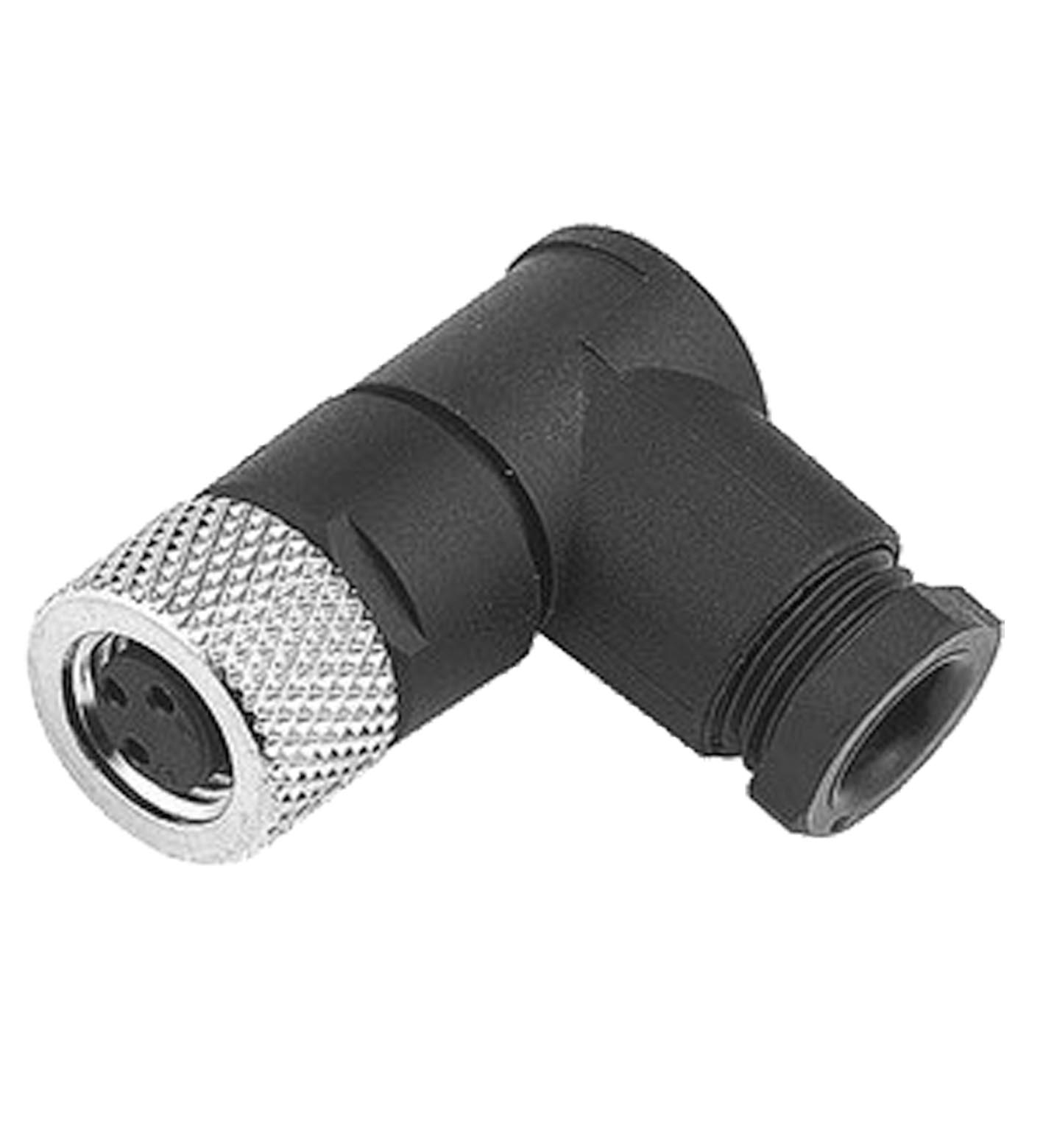

V3-WM

Female connector, field-attachable. Female connector M8 angled A-coded 3-pin, for cable diameter 3,5 - 5 mm, field-attachable, solder connection. Connector 1: . ConnectionsocketConstruction typeM8Styl...

Female connector, field-attachable. Female connector M8 angled A-coded 3-pin, for cable diameter 3,5 - 5 mm, field-attachable, solder connection. Connector 1: . ConnectionsocketConstruction typeM8StyleangledLockingscrew connectionNumber of pins3CodingA-codedCustomizationCoding rotateable in steps of 90°: . Connection: socket. Construction type: M8. Style: angled. Locking: screw connection. Number of pins: 3. Coding: A-coded. Customization: Coding rotateable in steps of 90°. Operating voltage: max. 30 V AC/DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. UL File Number: E363587. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 3. Plug connector: . Tightening torque0.5 NmTool installationcross-hatched knurlingMating cyclesmin. 100: . Tightening torque: 0.5 Nm. Tool installation: cross-hatched knurling. Mating cycles: min. 100. Degree of protection: IP67. Connection: Solder connection for max. 0.25 mm2 / AWG 24. Cable: . Sheath diameter3.5 ... 5 mmCore cross section0.25 mm2 / 24 AWG max.: . Sheath diameter: 3.5 ... 5 mm. Core cross section: 0.25 mm2 / 24 AWG max.. Installation: pressure nut 0.2 ... 0.3 Nm. Mass: 9.45 g. Plug connector: . Screw connectionCuZn, nickel-platedBodyPA, blackContact surfacegold plated (Au): . Screw connection: CuZn, nickel-plated. Body: PA, black. Contact surface: gold plated (Au)

Brand	Pepperl Fuchs
Lifecycle status	active
