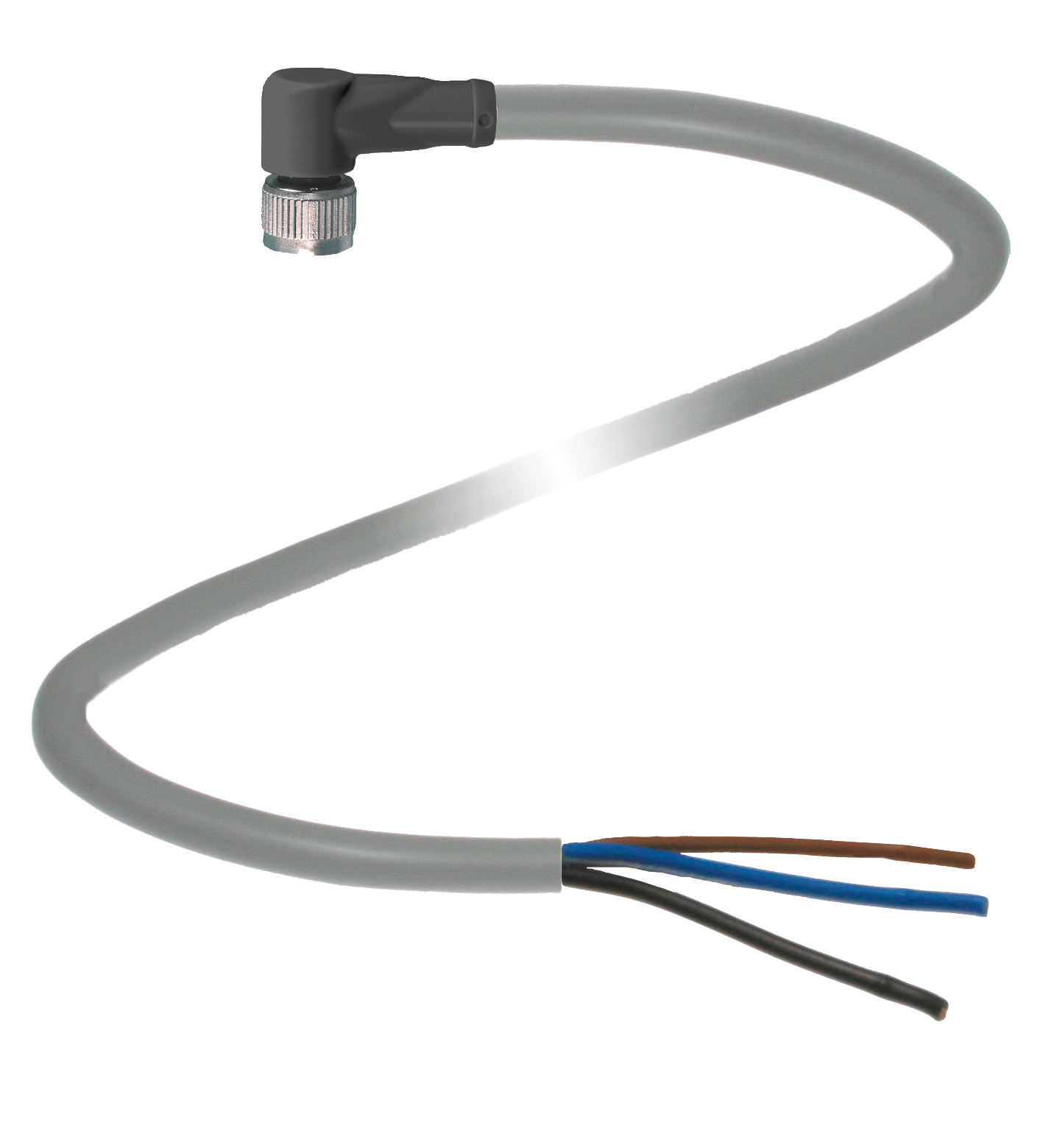

V3-WM-5M-PVC-Y255262

Female connector. Female cordset single-ended, M8, 3-pin, PVC cable. Number of pins: 3. Connection 1: socket. Construction type 1: angled. Threading 1: M8. Connection 2: cable end. Operating voltage:...

Female connector. Female cordset single-ended, M8, 3-pin, PVC cable. Number of pins: 3. Connection 1: socket. Construction type 1: angled. Threading 1: M8. Connection 2: cable end. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 3 A. Volume resistance: < 5 mΩ. Standard conformity: . Degree of protectionEN 60529:2000FlammabilityGrip: UL 94Specificationconnector M8 x 1 : IEC 61076-2-104: . Degree of protection: EN 60529:2000. Flammability: Grip: UL 94. Specification: connector M8 x 1 : IEC 61076-2-104. Ambient temperature: Body: -40 ... 90 °C (-40 ... 194 °F) cable, fixed installation: -25 ... 70 °C (-13 ... 158 °F) cable, movable installation: -5 ... 70 °C (23 ... 158 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePVCSlotted nutDiecast zincCore insulationPVC: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PVC. Slotted nut: Diecast zinc. Core insulation: PVC. Cable: fine-strand, flexible. Sheath diameter∅ 4.3 mmBending radius> 15 x cable diameter, movable installation > 10 x cable diameter, fixed installationColorgreyNumber of cores3Core cross section0.25 mm2Conductor construction14 x 0.15 mm ∅LengthL5 m: . Sheath diameter: ∅ 4.3 mm. Bending radius: > 15 x cable diameter, movable installation > 10 x cable diameter, fixed installation. Color: grey. Number of cores: 3. Core cross section: 0.25 mm2. Conductor construction: 14 x 0.15 mm ∅. Length: 5 m. Mass: 164.5 g. Flammability: . Contact carrierHBHousingV-2: . Contact carrier: HB. Housing: V-2

Brand	Pepperl Fuchs
Lifecycle status	active
