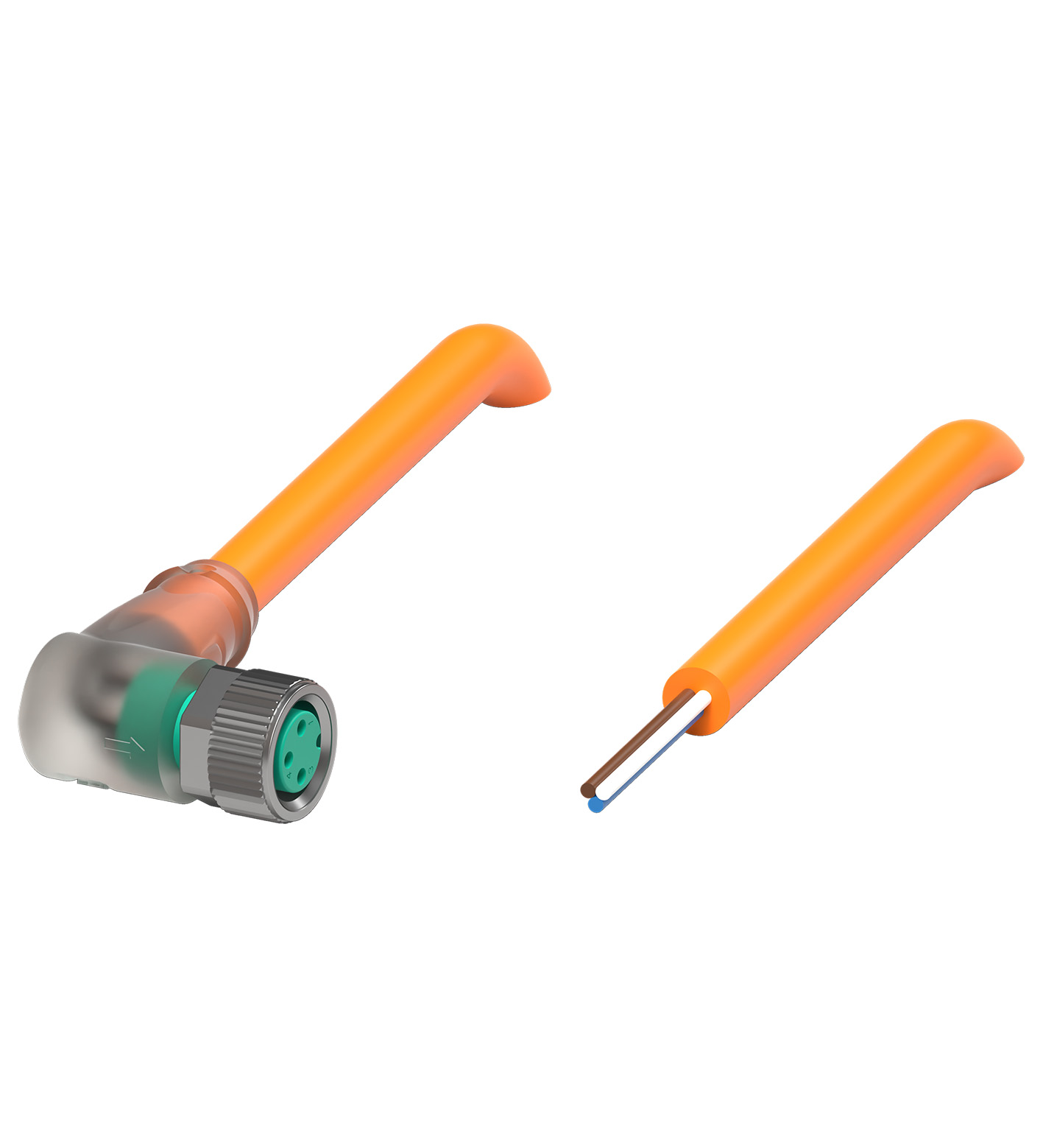

V3-WM-E2-OR0,3M-PUR-A1

Female cordset. Female cordset single-ended M8 angled A-coded, LED 3-pin, PUR cable welding-bead resistant orange, UL approved, drag chain suitable, torsion resistant. Connector 1: . ConnectionsocketConstruction typeM8StyleangledLockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: angled. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. LED green: Operating display. LED yellow: Functional display pin 4. Operating voltage: max. 24 V DC -20 % / +25 %. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. Flammability: UL 1581; DIN EN 60332-2-2. PWIS conformity: VW-PV 3.10.7. Halogen-free: DIN VDE 0472-815. Oil resistance: DIN EN 60811-2-1. UL approval: AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable). Maximum permissible operating currentmax. 3 A: . Maximum permissible operating current: max. 3 A. UL File Number: E231213. Ambient temperature: . Plug connector-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F): . Plug connector: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.4 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 9 mmMating cyclesmin. 100: . Tightening torque: 0.4 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 9 mm. Mating cycles: min. 100. Degree of protection: IP66 / IP68. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter4.9 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 80 N / 300 mmSheath colororange (similar to RAL 2003)Number of cores3Core cross section0.34 mm2Cores colorCore 1: brown Core 2: not used Core 3: blue Core 4: blackCore construction42 x 0.1 mm ∅LengthL0.3 mCable codeLi F 9Y 11Y 4 x 0,34: . Sheath diameter: 4.9 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 80 N / 300 mm. Sheath color: orange (similar to RAL 2003). Number of cores: 3. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: not used Core 3: blue Core 4: black. Core construction: 42 x 0.1 mm ∅. Length: 0.3 m. Cable code: Li F 9Y 11Y 4 x 0,34. Drag chain suitability: . Drag chain cyclesmin. 5000000Motion velocitymax. 3 m/sTraverse distancemax. 5 mAccelerationmax. 5 m/s2Torsion cyclesmin. 1000000Torsional stress± 180 °/m: . Drag chain cycles: min. 5000000. Motion velocity: max. 3 m/s. Traverse distance: max. 5 m. Acceleration: max. 5 m/s2. Torsion cycles: min. 1000000. Torsional stress: ± 180 °/m. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, transparentSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, transparent. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPWelding-bead resistanceyesWeld spatter resistanceyesChemical resistancegoodOil resistanceyesCooling lubricant resistanceyesMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Welding-bead resistance: yes. Weld spatter resistance: yes. Chemical resistance: good. Oil resistance: yes. Cooling lubricant resistance: yes. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2. Cable marking sleeve: 1x PUR transparent , fixed to cable

Brand	Pepperl Fuchs
Lifecycle status	active
