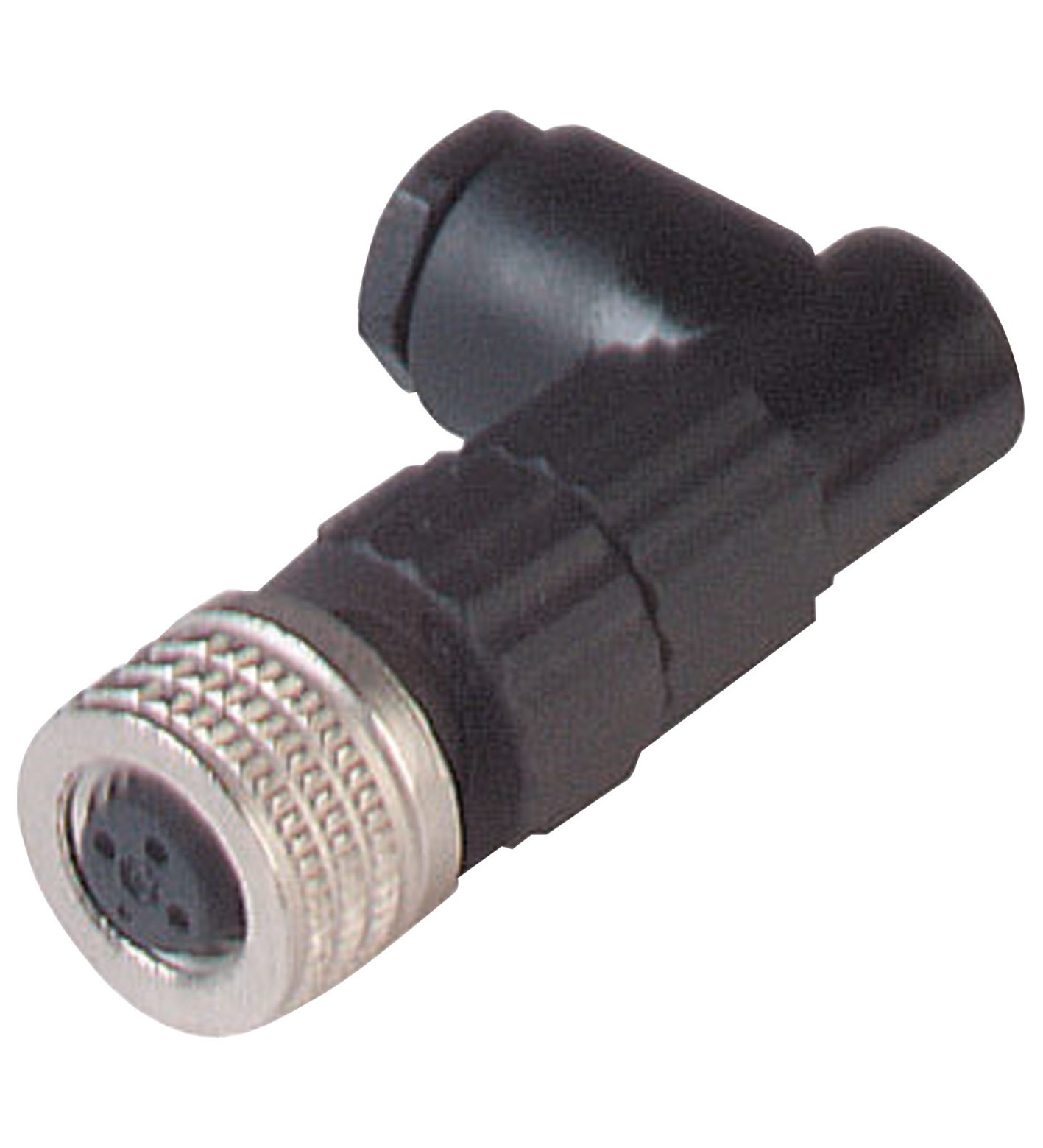

V3-WM-MQ

Female connector, field-attachable. Female connector M8 angled A-coded 3-pin, for cable diameter 4 - 5 mm, field-attachable, insulation displacement connection. Connector 1: . ConnectionsocketConstruc...

Female connector, field-attachable. Female connector M8 angled A-coded 3-pin, for cable diameter 4 - 5 mm, field-attachable, insulation displacement connection. Connector 1: . ConnectionsocketConstruction typeM8StyleangledLockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: angled. Locking: screw connection. Number of pins: 3. Coding: A-coded. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 3 A (2 A at 0.14 mm2). Volume resistance: < 5 mΩ. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Pollution degree: 3. Degree of protection: IP67. Connection: Insulation displacement connection for 0.25 ... 0.5 mm2 / AWG 24 ... AWG 20. Cable: . Sheath diameter4 ... 5 mmCoresCross-section: 0.14 ... 0.34 mm2: . Sheath diameter: 4 ... 5 mm. Cores: Cross-section: 0.14 ... 0.34 mm2. Mass: 16.95 g. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyPA, blackSealNBRContact surfaceAuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: PA, black. Seal: NBR. Contact surface: Au. Flammability: V-2

Brand	Pepperl Fuchs
Lifecycle status	active
