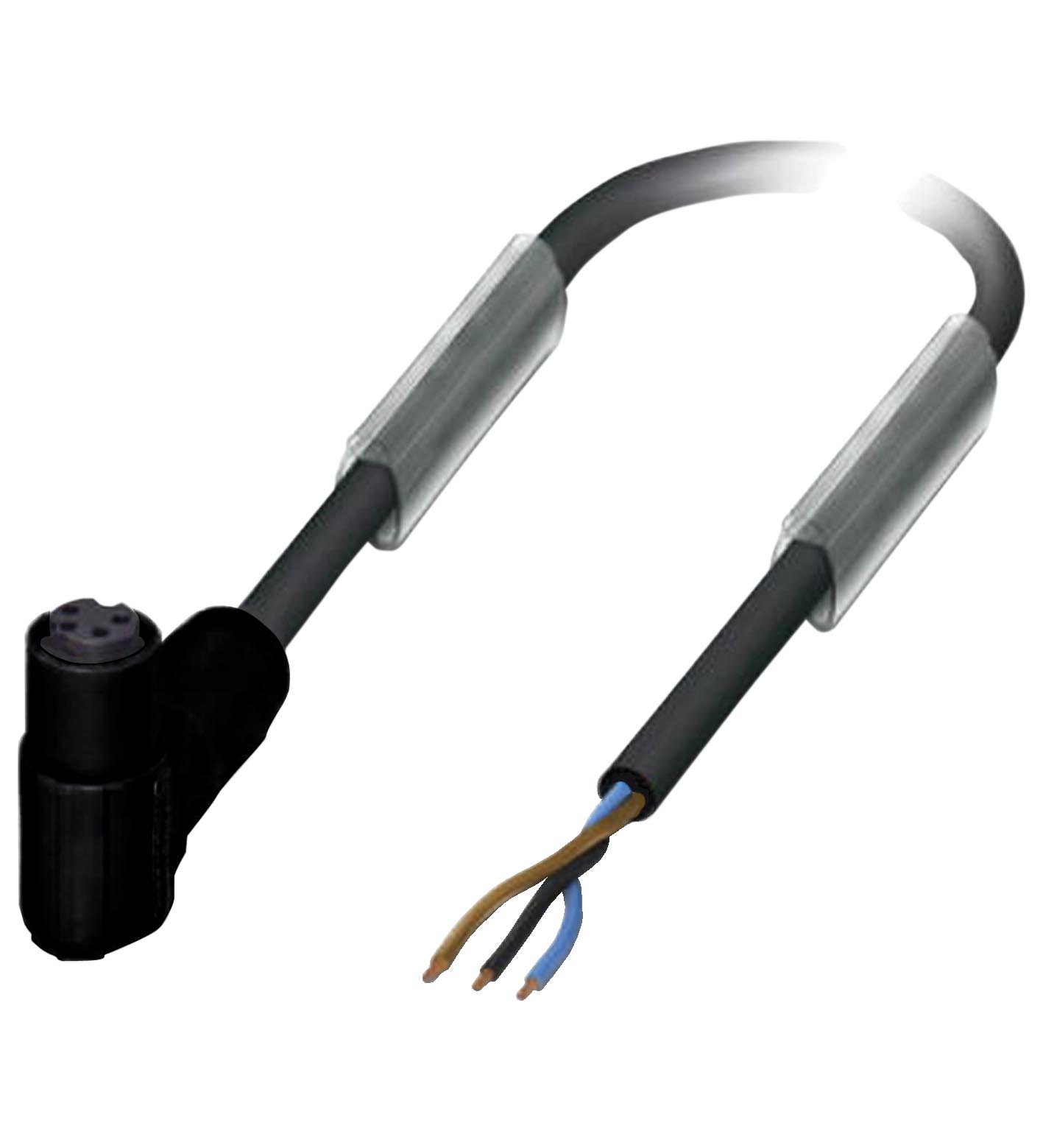

V3-WR-10M-PUR

Female cordset. Female cordset single-ended M8 snap-lock angled A-coded, 3-pin, PUR cable grey. Connector 1: . ConnectionsocketConstruction typeM8StyleangledLockingsnap lockingNumber of pins3CodingA-c...

Female cordset. Female cordset single-ended M8 snap-lock angled A-coded, 3-pin, PUR cable grey. Connector 1: . ConnectionsocketConstruction typeM8StyleangledLockingsnap lockingNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: angled. Locking: snap locking. Number of pins: 3. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. Halogen-free: IEC 60754-1. Ambient temperature: . Plug connector-25 ... 90 °C (-13 ... 194 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-25 ... 80 °C (-13 ... 176 °F): . Plug connector: -25 ... 90 °C (-13 ... 194 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Plug connector: . Mating cyclesmin. 100: . Mating cycles: min. 100. Degree of protection: IP65 / IP67. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 6. Sheath diameter4.3 mmBending radius36 mm movable installation18 mm fixed installationSheath colorblack (similar to RAL 7021)Number of cores3Core cross section0.25 mm2Cores colorCore 1: brown Core 3: blue Core 4: blackCore construction32 x 0.1 mm ∅LengthL10 mCable codeLi 9Y 11Y 3 x 0,25: . Sheath diameter: 4.3 mm. Bending radius: 36 mm movable installation18 mm fixed installation. Sheath color: black (similar to RAL 7021). Number of cores: 3. Core cross section: 0.25 mm2. Cores color: Core 1: brown Core 3: blue Core 4: black. Core construction: 32 x 0.1 mm ∅. Length: 10 m. Cable code: Li 9Y 11Y 3 x 0,25. Mass: 187.5 g. Halogen-free: yes. Plug connector: . BodyTPU, blackSealNBRContact surfaceNi/AuFlammabilityV-2: . Body: TPU, black. Seal: NBR. Contact surface: Ni/Au. Flammability: V-2. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPChemical resistancegoodMicrobial resistanceyesHydrolysis resistanceyes: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. Chemical resistance: good. Microbial resistance: yes. Hydrolysis resistance: yes

Brand	Pepperl Fuchs
Lifecycle status	active
