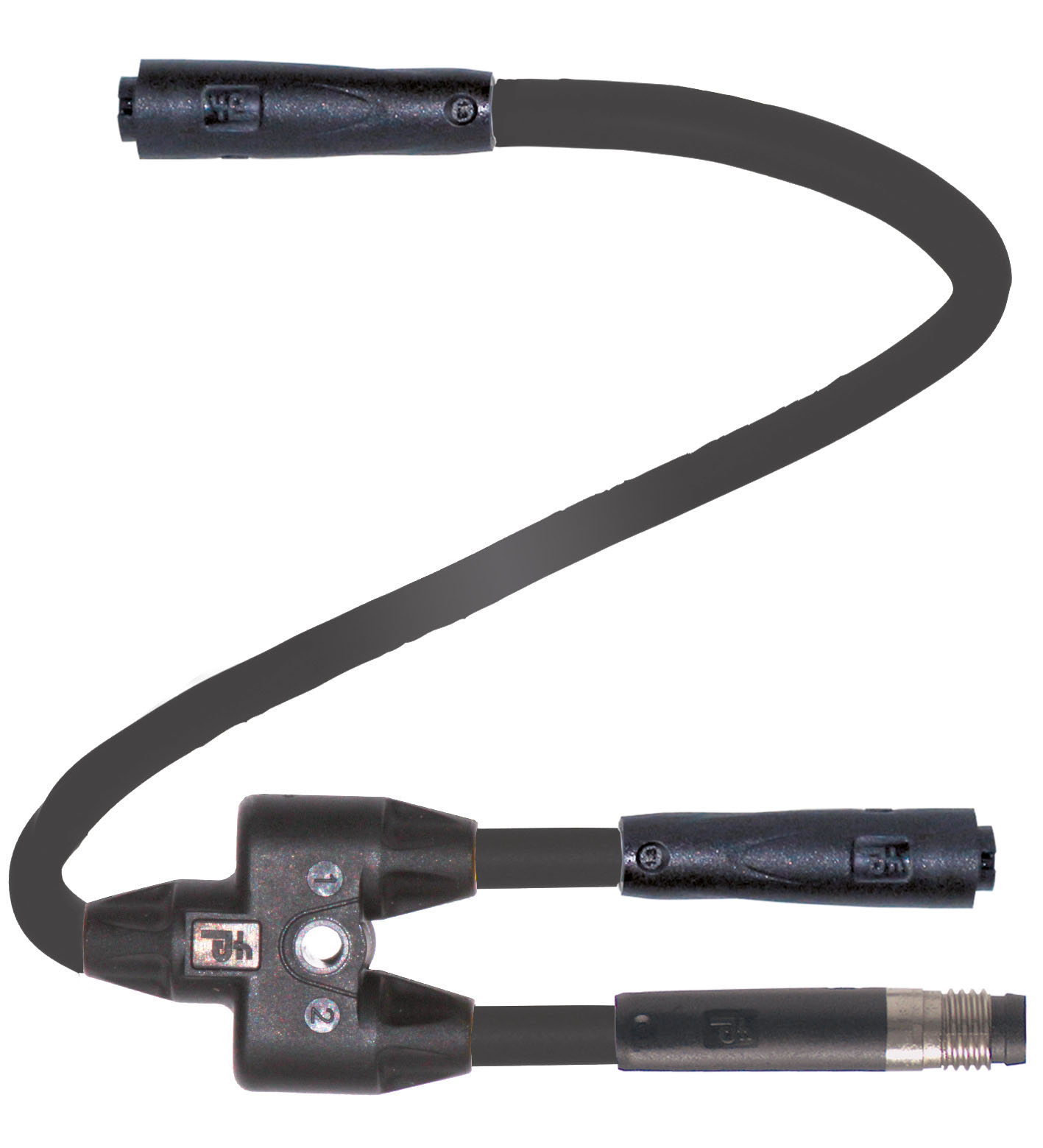

V31-0,3MPVC/V31S-0,1-TEE-V31-G

Y connection cable. Y connection cable M8 socket snap-lock straight A-coded 4-pin to 1x M8 socket / 1x M8 plug snap-lock straight A-coded 4-pin, PVC cable black. Connector 1: . ConnectionsocketConstru...

Y connection cable. Y connection cable M8 socket snap-lock straight A-coded 4-pin to 1x M8 socket / 1x M8 plug snap-lock straight A-coded 4-pin, PVC cable black. Connector 1: . ConnectionsocketConstruction typeM8StylestraightLockingsnap lockingNumber of pins4CodingA-coded: . Connection: socket. Construction type: M8. Style: straight. Locking: snap locking. Number of pins: 4. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeM8StylestraightLockingsnap lockingNumber of pins4CodingA-coded: . Connection: plug. Construction type: M8. Style: straight. Locking: snap locking. Number of pins: 4. Coding: A-coded. Connector 3: . ConnectionsocketConstruction typeM8StylestraightLockingsnap lockingNumber of pins4CodingA-coded: . Connection: socket. Construction type: M8. Style: straight. Locking: snap locking. Number of pins: 4. Coding: A-coded. Operating voltage: 30 V AC/DC. Operating current: max. 3 A. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. Flammability: UL 1581 , IEC 60332-1-2. Ambient temperature: . Plug connector-25 ... 90 °C (-13 ... 194 °F)Cable, fixed installation-25 ... 80 °C (-13 ... 176 °F)Cable, flexing-5 ... 80 °C (23 ... 176 °F): . Plug connector: -25 ... 90 °C (-13 ... 194 °F). Cable, fixed installation: -25 ... 80 °C (-13 ... 176 °F). Cable, flexing: -5 ... 80 °C (23 ... 176 °F). Pollution degree: 3. Plug connector: . Mating cyclesmin. 100: . Mating cycles: min. 100. Degree of protection: IP65. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.3 mmBending radius> 15 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 50 N / 300 mmSheath colorblack (similar to RAL 9005)Number of cores4Core cross section0.34 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: blackCore construction19 x 0.15 mm ∅LengthLL1 = 300 mmL2 = 100 mmL3 = 100 mmCable codeLi YY 4 x 0,34: . Sheath diameter: 4.3 mm. Bending radius: > 15 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 50 N / 300 mm. Sheath color: black (similar to RAL 9005). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black. Core construction: 19 x 0.15 mm ∅. Length: L1 = 300 mmL2 = 100 mmL3 = 100 mm. Cable code: Li YY 4 x 0,34. Mass: 30 g. Plug connector: . BodyPUR, blackContact surfaceAuFlammabilityV-2: . Body: PUR, black. Contact surface: Au. Flammability: V-2. Cable: . SheathingPVCCore insulationPVCFlammabilityFT1: . Sheathing: PVC. Core insulation: PVC. Flammability: FT1

Brand	Pepperl Fuchs
Lifecycle status	active
