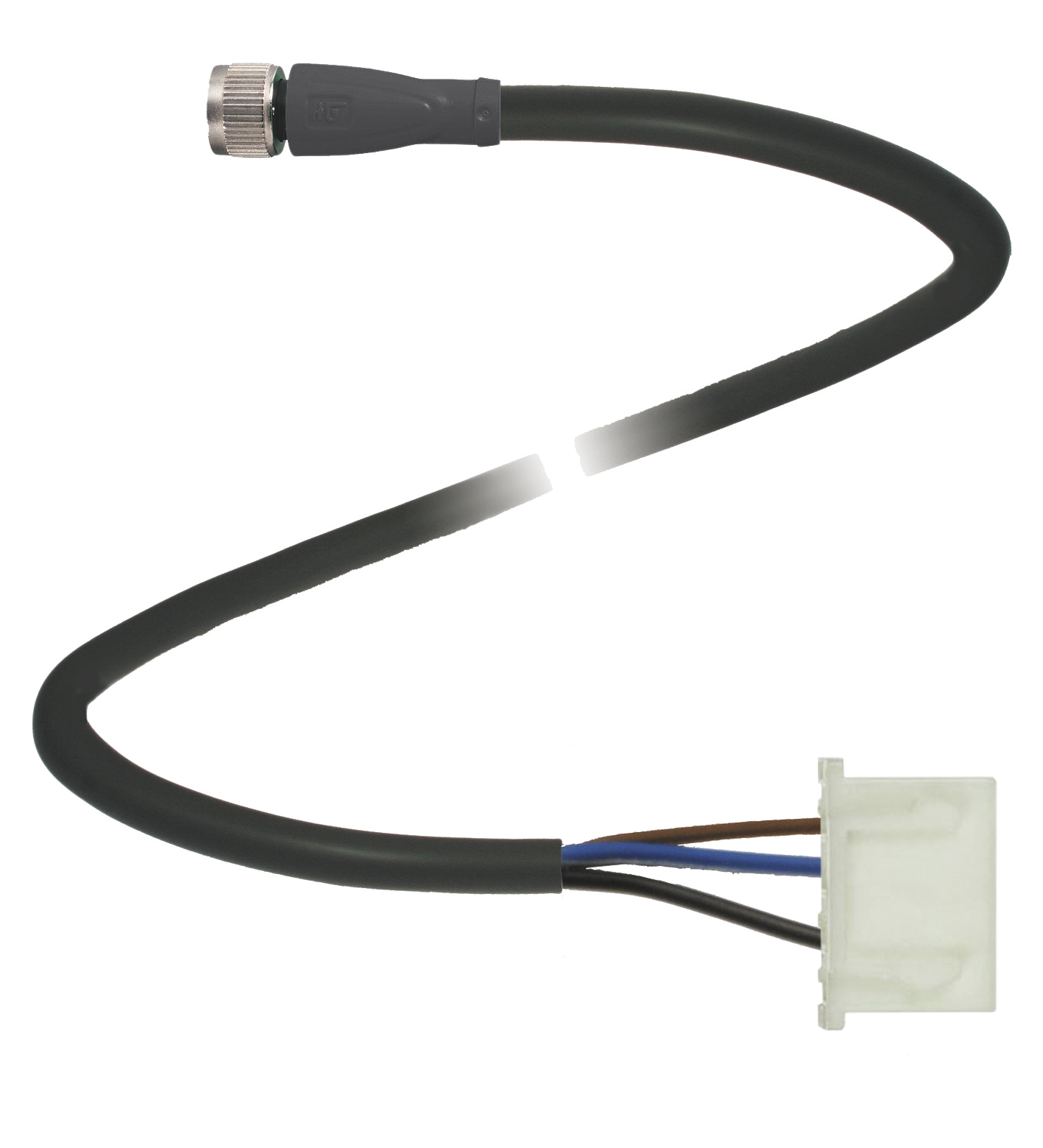

V31-GM-0,27M-PUR-YJSTXHP4

Adapter cable. Single-ended female cordset, M8 to XHP-4, 3-pin, PUR cable. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M8. Connection 2: socket. Construction t...

Adapter cable. Single-ended female cordset, M8 to XHP-4, 3-pin, PUR cable. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M8. Connection 2: socket. Construction type 2: straight. Operating voltage: max. 30 V DC. Operating current: max. 3 A. Standard conformity: . Degree of protectionEN 60529:2000StandardsIEC 61076-2-104:2008: . Degree of protection: EN 60529:2000. Standards: IEC 61076-2-104:2008. Ambient temperature: Body: -40 ... 90 °C (-40 ... 194 °F) cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F) cable, movable installation: -20 ... 80 °C (-4 ... 176 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67 On the M8 socket. Cable code: Li 9Y 11Y 3 x 0,25. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePURSlotted nutDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PUR. Slotted nut: Diecast zinc. Core insulation: PP. Cable: fine-strand, flexible. Sheath diameter∅ 4.3 mmBending radius> 15 x cable diameter, movable installation > 8 x cable diameter, fixed installationColorgreyNumber of cores3Core cross section0.25 mm2Conductor construction14 x 0.15 mm ∅LengthL0.27 m: . Sheath diameter: ∅ 4.3 mm. Bending radius: > 15 x cable diameter, movable installation > 8 x cable diameter, fixed installation. Color: grey. Number of cores: 3. Core cross section: 0.25 mm2. Conductor construction: 14 x 0.15 mm ∅. Length: 0.27 m. Mass: 9 g

Brand	Pepperl Fuchs
Lifecycle status	active
