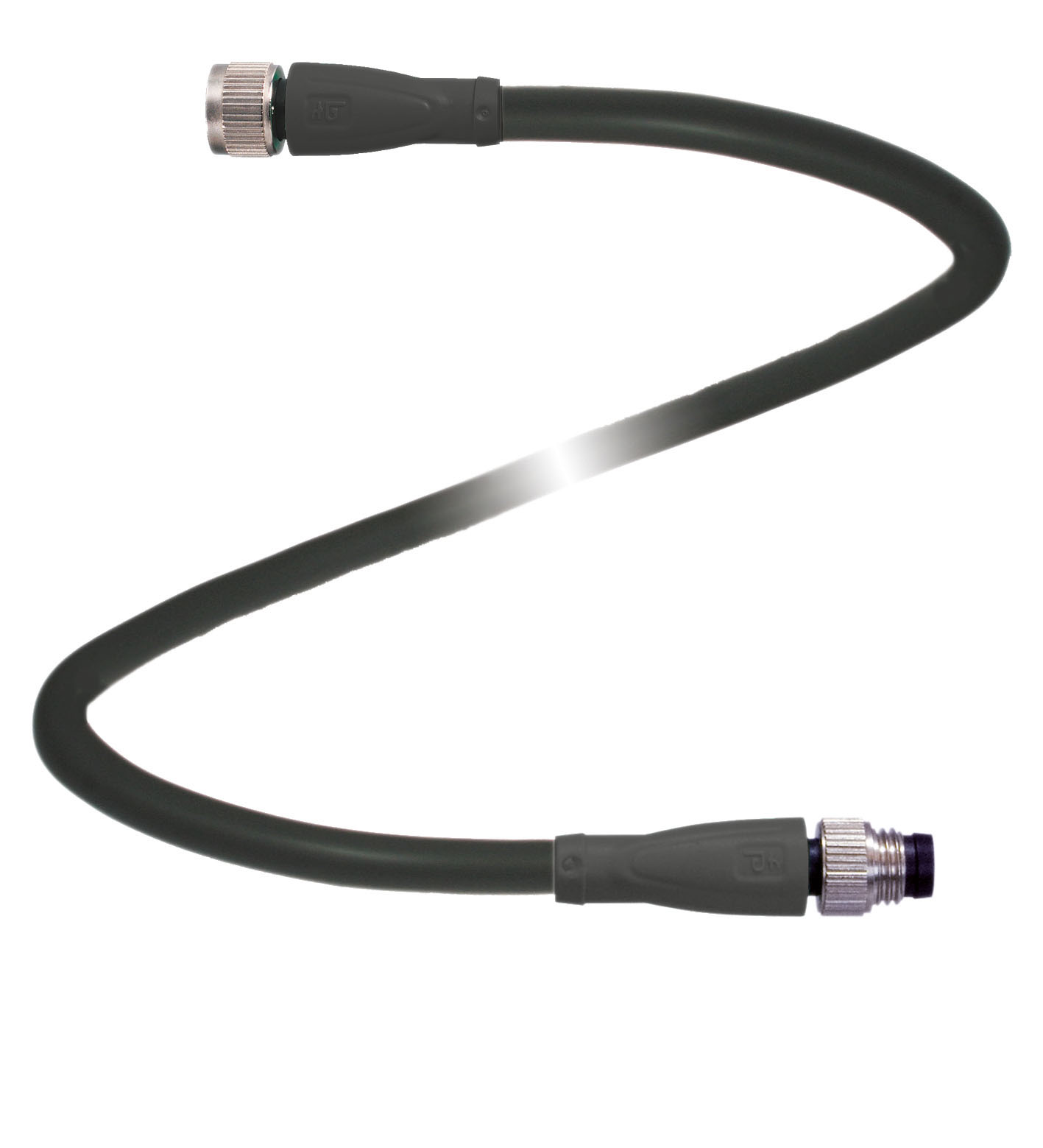

V31-GM-BK0,6M-PUR-U-V31-GM-Y32

Connection cable. Connecting cable, M8 to M8, PUR cable 4-pin. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M8. Connection 2: plug. Construction type 2: straigh...

Connection cable. Connecting cable, M8 to M8, PUR cable 4-pin. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M8. Connection 2: plug. Construction type 2: straight. Threading 2: M8. UL File Number: E231213. Operating voltage: max. 30 V AC/DC. Test voltage: > 1500 V eff AC. Operating current: max. 3 A. Volume resistance: < 5 mΩ. UL approval: AWM STYLE 20549 I/II A/B 80°C 300V FT2 (cable). Ambient temperature: -40 ... 90 °C (-40 ... 194 °F) cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F) cable, movable installation: -20 ... 80 °C (-4 ... 176 °F). Pollution degree: 3. Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67. Material: . ContactsCuSn / AuContact surfaceAuBodyTPU, blackCablePURSlotted nutDiecast zincSleeve connectorDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: TPU, black. Cable: PUR. Slotted nut: Diecast zinc. Sleeve connector: Diecast zinc. Core insulation: PP. Cable: fine-strand, flexible. Sheath diameter∅ 4.3 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationColorblackNumber of cores4Core cross section0.34 mm2Conductor construction42 x 0.1 mm ∅LengthL0.6 m: . Sheath diameter: ∅ 4.3 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Color: black. Number of cores: 4. Core cross section: 0.34 mm2. Conductor construction: 42 x 0.1 mm ∅. Length: 0.6 m. Mass: 23.95 g. Flammability: . Contact carrier94 HBHousing94 V-2: . Contact carrier: 94 HB. Housing: 94 V-2

Brand	Pepperl Fuchs
Lifecycle status	active
