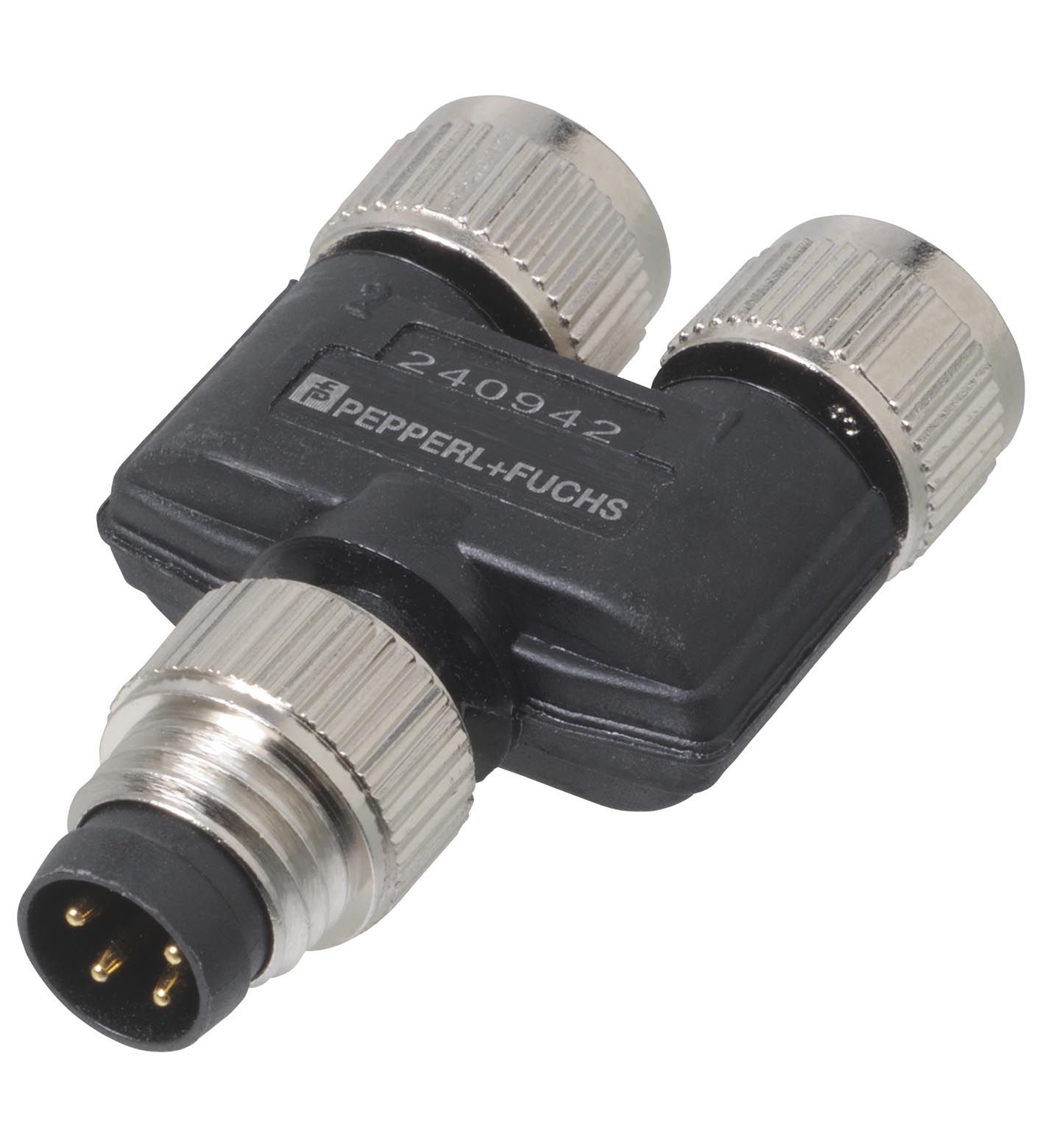

V31S-T-V3

Y-Splitter. Y-Splitter M8 plug 4-pin to 2x M8 socket 3-pin. Connector 1: . ConnectionsocketConstruction typeM8StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Co...

Y-Splitter. Y-Splitter M8 plug 4-pin to 2x M8 socket 3-pin. Connector 1: . ConnectionsocketConstruction typeM8StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 2: . ConnectionsocketConstruction typeM8StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 3: . ConnectionplugConstruction typeM8StylestraightLockingscrew connectionNumber of pins4CodingA-coded: . Connection: plug. Construction type: M8. Style: straight. Locking: screw connection. Number of pins: 4. Coding: A-coded. Operating voltage: max. 30 V AC/DC. Operating current: max. 4 A. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. Ambient temperature: -25 ... 90 °C (-13 ... 194 °F). Pollution degree: 3. Plug connector: . Tightening torque0.2 NmLoosening protectionavailableTool installationstraight knurlingMating cyclesmin. 100: . Tightening torque: 0.2 Nm. Loosening protection: available. Tool installation: straight knurling. Mating cycles: min. 100. Degree of protection: IP65 / IP67. Mass: 12 g. Plug connector: . BodyTPU, blackSealNBRContact surfaceNi/AuFlammabilityHB: . Body: TPU, black. Seal: NBR. Contact surface: Ni/Au. Flammability: HB

Brand	Pepperl Fuchs
Lifecycle status	active
