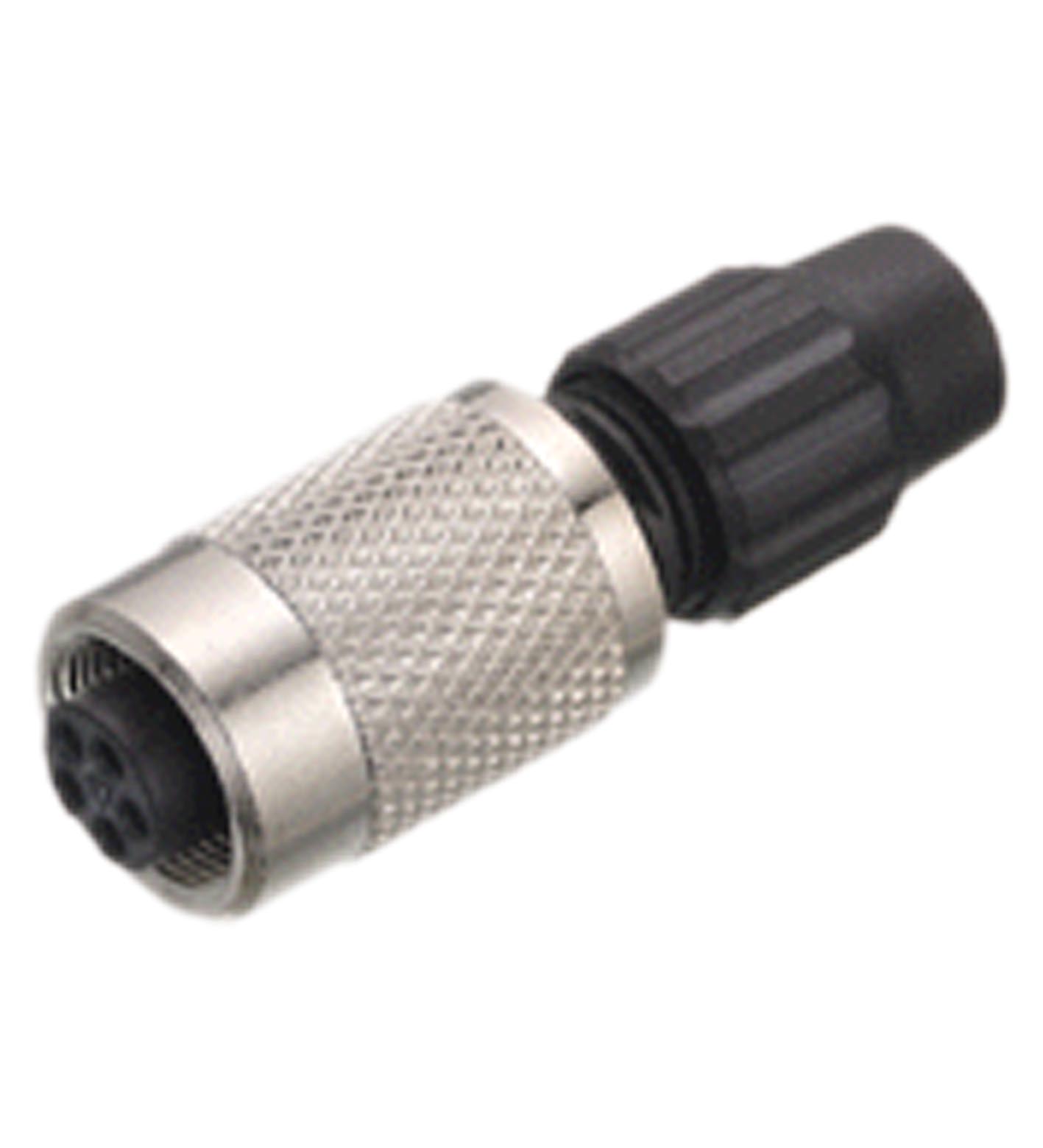

V34-G

Female cordset, field attachable. Female connector, M9, 4-pin, field attachable. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M9. Operating voltage: max. 125 V...

Female cordset, field attachable. Female connector, M9, 4-pin, field attachable. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: M9. Operating voltage: max. 125 V DC. Test voltage: > 1500 V eff AC. Operating current: max. 3 A. Volume resistance: < 3 mΩ. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 1. Contact elements: spring-loaded contact socket. Degree of protection: IP40. Connection: Cable cross-section: 0.25 mm2 soldering pins. Material: . ContactsCuSnContact surfaceAuBodyPA 66 , blackSlotted nutCuZn, nickel-plated: . Contacts: CuSn. Contact surface: Au. Body: PA 66 , black. Slotted nut: CuZn, nickel-plated. Cable: . Sheath diameter4 ... 5 mm: . Sheath diameter: 4 ... 5 mm. Mass: approx. 18 g

Brand	Pepperl Fuchs
Lifecycle status	active
