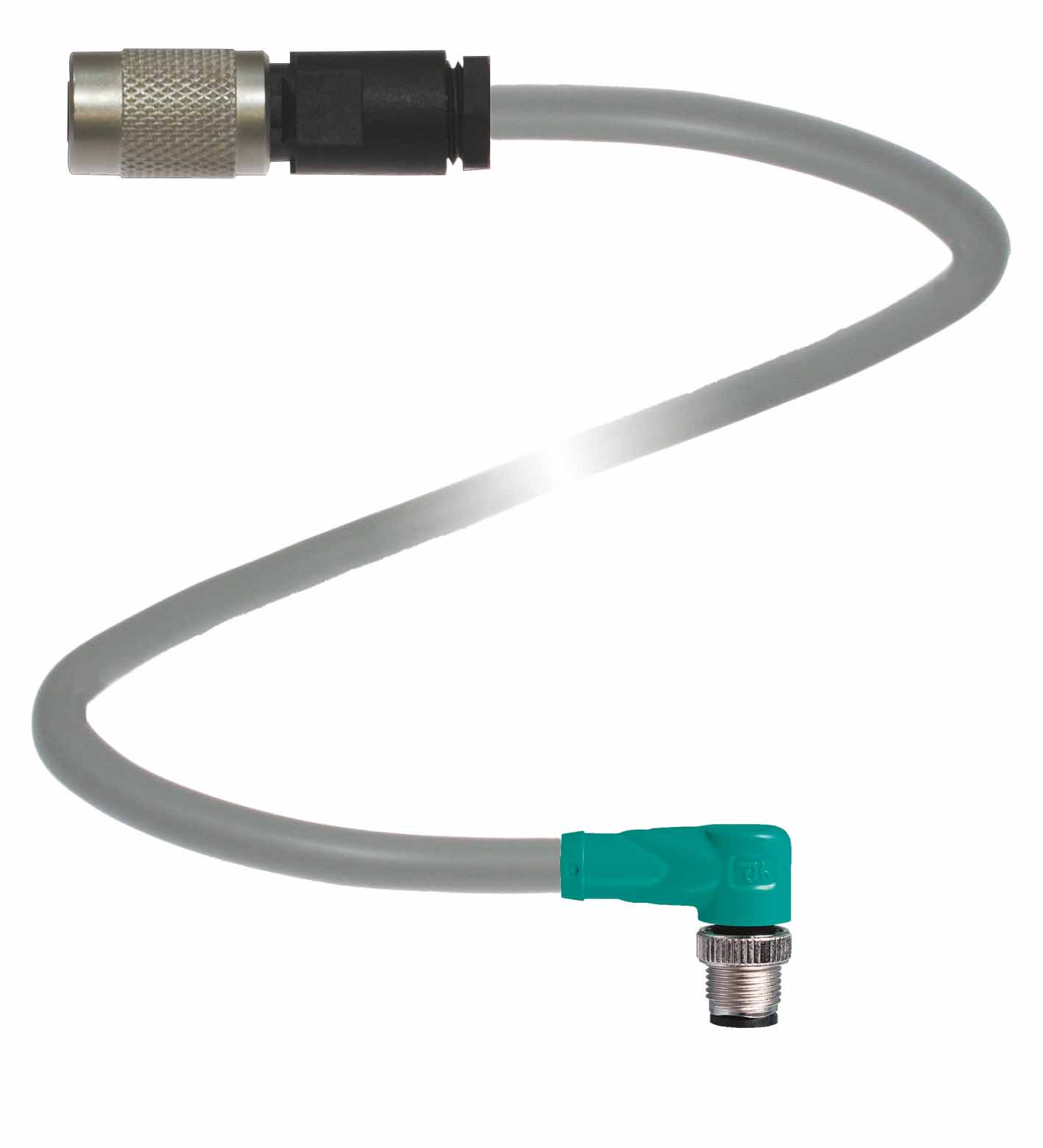

V35-G-2M-PUR-V31-WM

Connection cable. Connecting cable, M9 to M8, PUR cable, 3-pin. Number of pins: 3. Connection 1: socket. Construction type 1: straight. Threading 1: M9. Connection 2: plug. Construction type 2: angled...

Connection cable. Connecting cable, M9 to M8, PUR cable, 3-pin. Number of pins: 3. Connection 1: socket. Construction type 1: straight. Threading 1: M9. Connection 2: plug. Construction type 2: angled. Threading 2: M8. Operating voltage: max. 30 V DC. Test voltage: > 1500 V eff AC. Operating current: max. 3 A. Volume resistance: < 5 mΩ. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Contact elements: spring-loaded contact socket. Pin diameter: 1 mm. Degree of protection: IP67. Material: . ContactsCuSn / AuContact surfaceAuBodyPA 66, black TPU, greenCablePURSlotted nutCuZn, nickel-platedSleeve connectorDiecast zincCore insulationPP: . Contacts: CuSn / Au. Contact surface: Au. Body: PA 66, black TPU, green. Cable: PUR. Slotted nut: CuZn, nickel-plated. Sleeve connector: Diecast zinc. Core insulation: PP. Cable: fine-strand, flexible. Sheath diameter∅4.8 mmBending radius> 10 x cable diameter, movable installationColorgreyCores3 x 0.34 mm2Conductor construction19 x 0.15 mm ∅LengthL2 m: . Sheath diameter: ∅4.8 mm. Bending radius: > 10 x cable diameter, movable installation. Color: grey. Cores: 3 x 0.34 mm2. Conductor construction: 19 x 0.15 mm ∅. Length: 2 m. Mass: 69.49 g

Brand	Pepperl Fuchs
Lifecycle status	active
