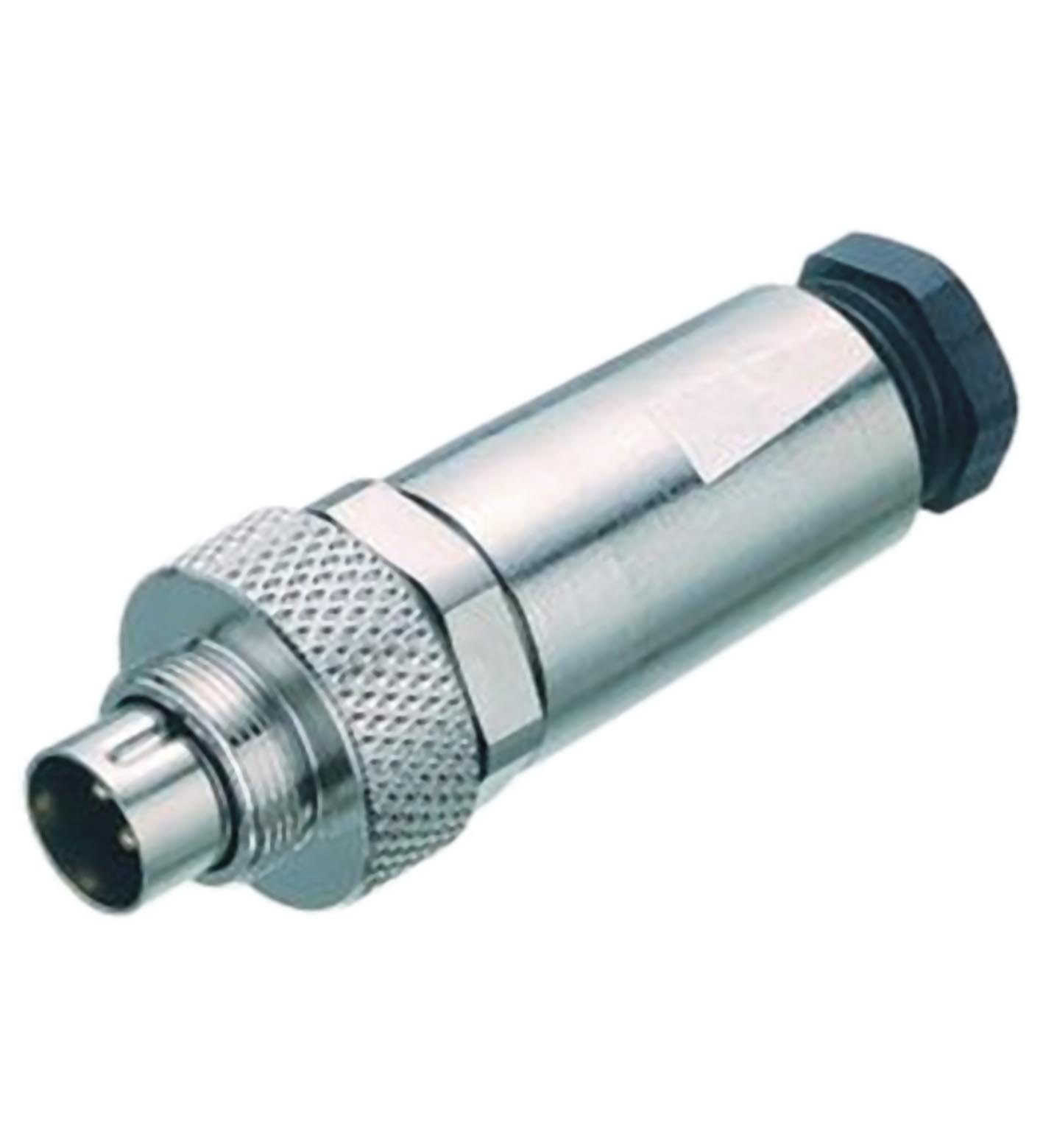

V35S-G-ABG

Field-attachable male connector. Cable connector, M9, 5-pin, shielded, field-attachable. Number of pins: 5. Connection 1: plug. Construction type 1: straight. Threading 1: M9. Operating voltage: max....

Field-attachable male connector. Cable connector, M9, 5-pin, shielded, field-attachable. Number of pins: 5. Connection 1: plug. Construction type 1: straight. Threading 1: M9. Operating voltage: max. 125 V DC. Test voltage: > 1500 V eff AC. Operating current: max. 3 A. Volume resistance: < 3 mΩ. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Pollution degree: 1. Contact elements: spring-loaded contact socket. Degree of protection: IP67. Connection: Cable cross-section: 0.25 mm2 soldering pins. Material: . ContactsCuZnContact surfaceAuBodybrass, nickel-plated: . Contacts: CuZn. Contact surface: Au. Body: brass, nickel-plated. Cable: . Sheath diameter3.5 ... 5 mm: . Sheath diameter: 3.5 ... 5 mm. Mass: 21 g

Brand	Pepperl Fuchs
Lifecycle status	active
