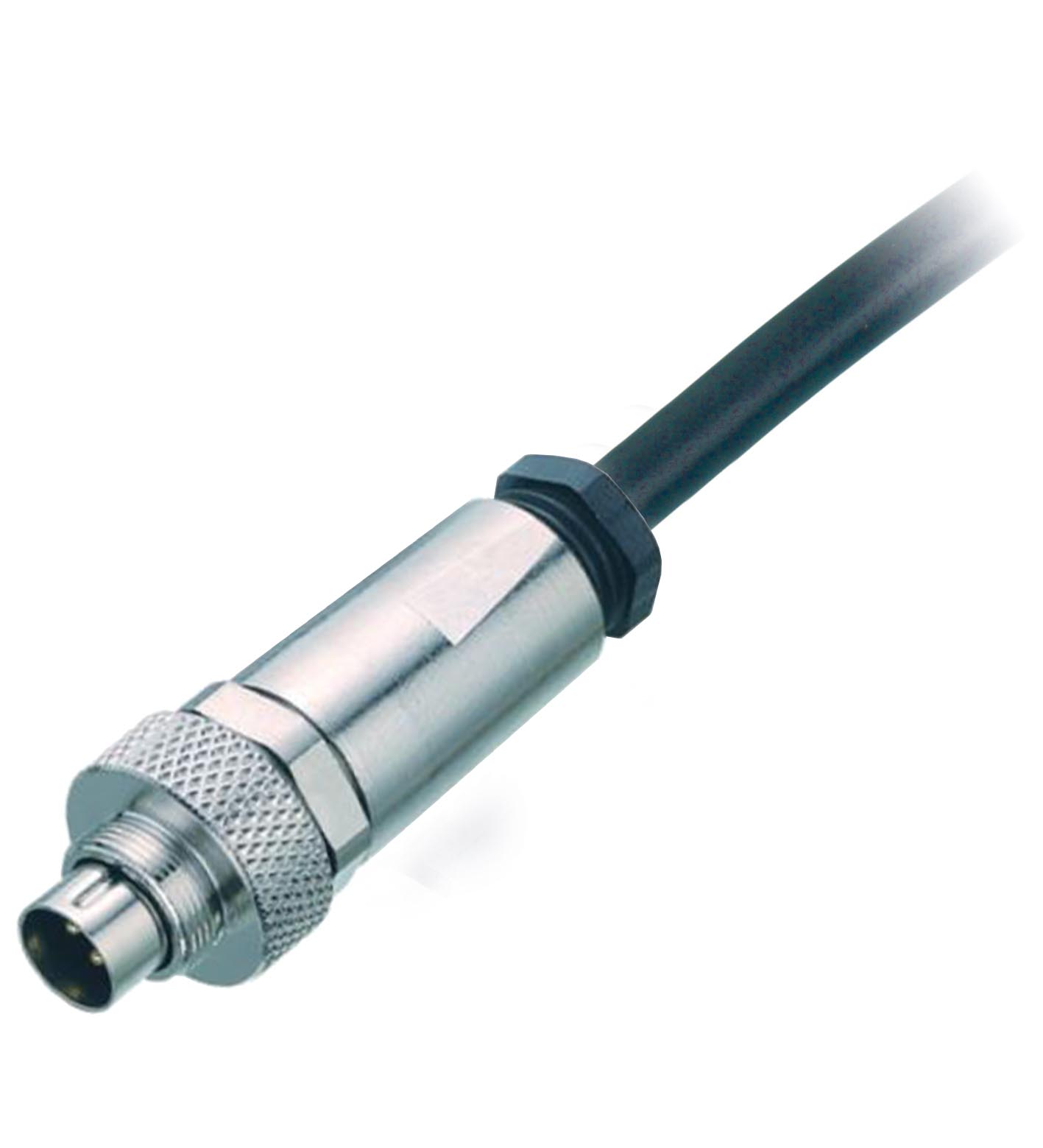

V38S-G-10M-PUR-ABG

Cable connector, shielded. Single-ended male cordset, M9, 8-pin, shielded, PUR cable. Number of pins: 8 + shield. Connection 1: plug. Construction type 1: straight. Threading 1: M9. Connection 2: cabl...

Cable connector, shielded. Single-ended male cordset, M9, 8-pin, shielded, PUR cable. Number of pins: 8 + shield. Connection 1: plug. Construction type 1: straight. Threading 1: M9. Connection 2: cable end. Operating voltage: max. 125 V DC. Test voltage: > 1750 V eff AC. Operating current: max. 1 A. Volume resistance: < 3 mΩ. Ambient temperature: cable, movable installation: -5 ... 70 °C (23 ... 158 °F),cable, fixed installation: -20 ... 70 °C (-4 ... 158 °F). Pollution degree: 1. Degree of protection: IP67. Material: . ContactsCuZnContact surfaceAuBodyPBT , blackCablePURCore insulationPVC: . Contacts: CuZn. Contact surface: Au. Body: PBT , black. Cable: PUR. Core insulation: PVC. Cable: . Sheath diameter∅ 5.3 mmBending radiuscable, movable installation: ≥ 80 mm, cable, fixed installation: > 10 x cable diameterColorblackNumber of cores8Core cross section0.14 mm2Conductor construction18 x 0.1 mm ∅ShieldgridLengthL10 m: . Sheath diameter: ∅ 5.3 mm. Bending radius: cable, movable installation: ≥ 80 mm, cable, fixed installation: > 10 x cable diameter. Color: black. Number of cores: 8. Core cross section: 0.14 mm2. Conductor construction: 18 x 0.1 mm ∅. Shield: grid. Length: 10 m. Mass: 446 g

Brand	Pepperl Fuchs
Lifecycle status	active
