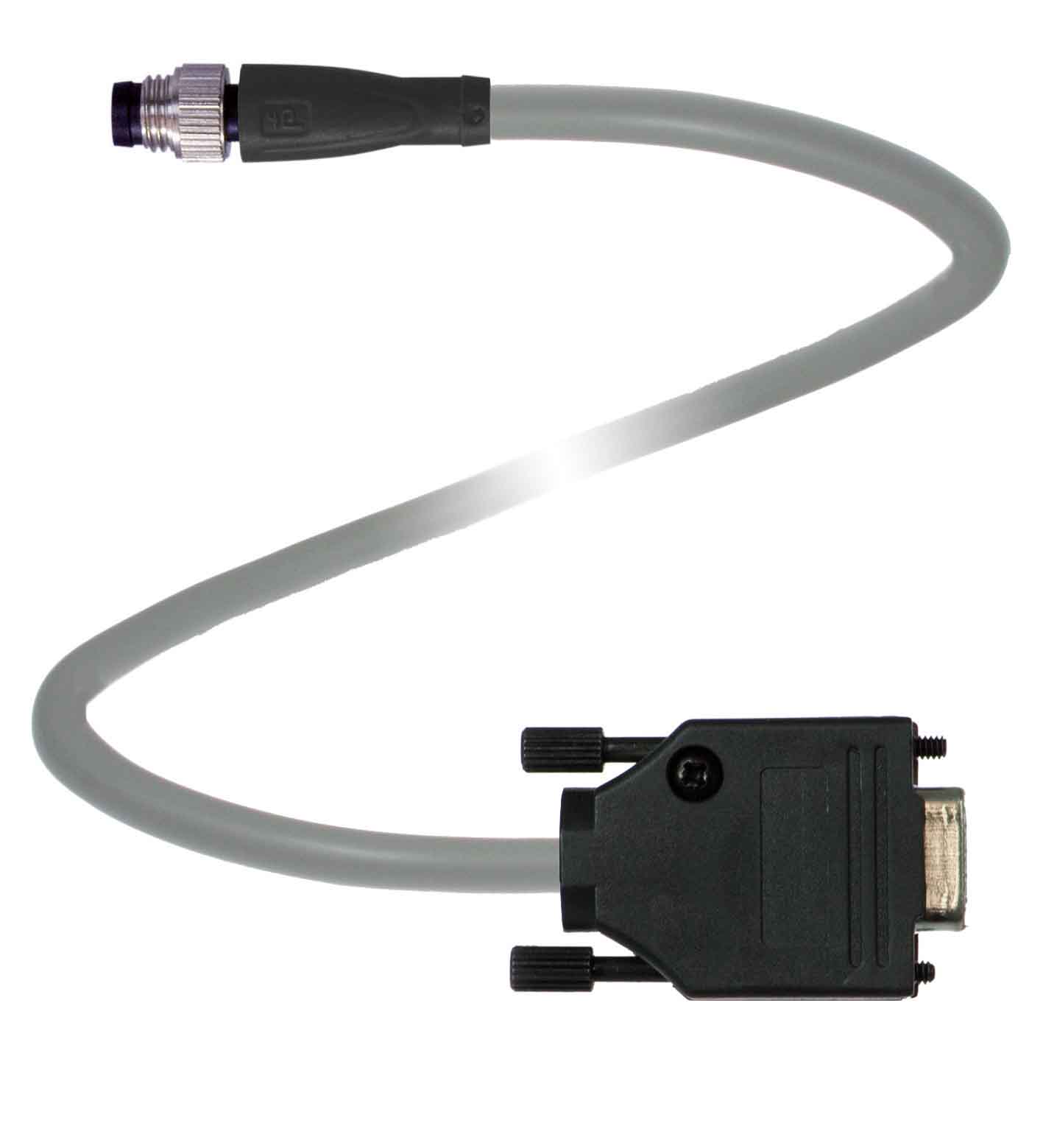

V3S-GM-0,15M-PUR-ABG-SUBD

Adapter cable. Adapter cable M8 plug straight A-coded 3-pin to Sub-D-plug straight 9-pin, PUR cable grey, shielded, for PC connection with null modem cable. Connector 1: . ConnectionplugConstruction t...

Adapter cable. Adapter cable M8 plug straight A-coded 3-pin to Sub-D-plug straight 9-pin, PUR cable grey, shielded, for PC connection with null modem cable. Connector 1: . ConnectionplugConstruction typeM8StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: plug. Construction type: M8. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Connector 2: . ConnectionplugConstruction typeSub-DStylestraightLockingscrew connectionNumber of pins9: . Connection: plug. Construction type: Sub-D. Style: straight. Locking: screw connection. Number of pins: 9. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 1.5 A. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104 Connector Sub-D : IEC 807-2. Halogen-free: DIN VDE 0472-815 DIN EN 50267-2-1. Ambient temperature: . Connector 1-40 ... 90 °C (-40 ... 194 °F)Connector 2-55 ... 105 °C (-67 ... 221 °F)Cable, fixed installation-50 ... 105 °C (-58 ... 221 °F)Cable, flexing-30 ... 105 °C (-22 ... 221 °F): . Connector 1: -40 ... 90 °C (-40 ... 194 °F). Connector 2: -55 ... 105 °C (-67 ... 221 °F). Cable, fixed installation: -50 ... 105 °C (-58 ... 221 °F). Cable, flexing: -30 ... 105 °C (-22 ... 221 °F). Pollution degree: 3. Connector 1: . Tightening torque0.4 NmLoosening protectionavailableTool installationstraight knurlingMating cyclesmin. 100Shieldingshield connected to screw connectionDegree of protectionIP67: . Tightening torque: 0.4 Nm. Loosening protection: available. Tool installation: straight knurling. Mating cycles: min. 100. Shielding: shield connected to screw connection. Degree of protection: IP67. Connector 2: . Loosening protectionscrews UNC 4-40Mating cyclesmin. 100Shieldingshield connected to connectorDegree of protectionIP20: . Loosening protection: screws UNC 4-40. Mating cycles: min. 100. Shielding: shield connected to connector. Degree of protection: IP20. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.8 mmBending radius> 10 x cable diameter, movable installation > 5 x cable diameter, fixed installationSheath stripping forcemax. 100 N / 300 mmSheath colorgrey (similar to RAL 7001)Number of cores4Core cross section0.34 mm2Cores colorCore 1-3: white Core 2: not used Core 3-2: black Core 4-5: blueCore construction19 x 0.15 mm ∅Shieldtinned copper braiding, 85 % coverageLengthL0.15 mCable codeLi 9Y 11YM 4 x 0.34: . Sheath diameter: 4.8 mm. Bending radius: > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation. Sheath stripping force: max. 100 N / 300 mm. Sheath color: grey (similar to RAL 7001). Number of cores: 4. Core cross section: 0.34 mm2. Cores color: Core 1-3: white Core 2: not used Core 3-2: black Core 4-5: blue. Core construction: 19 x 0.15 mm ∅. Shield: tinned copper braiding, 85 % coverage. Length: 0.15 m. Cable code: Li 9Y 11YM 4 x 0.34. Mass: 67 g. Halogen-free: yes. Connector 1: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackContact surfaceAuFlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Contact surface: Au. Flammability: V-2. Connector 2: . BodyZinc diecast, nickel-platedContact surfaceAuFlammabilityV-0: . Body: Zinc diecast, nickel-plated. Contact surface: Au. Flammability: V-0. Cable: . SheathingPUR based on polyetherCore insulationPPChemical resistancegood: . Sheathing: PUR based on polyether. Core insulation: PP. Chemical resistance: good

Brand	Pepperl Fuchs
Lifecycle status	active
