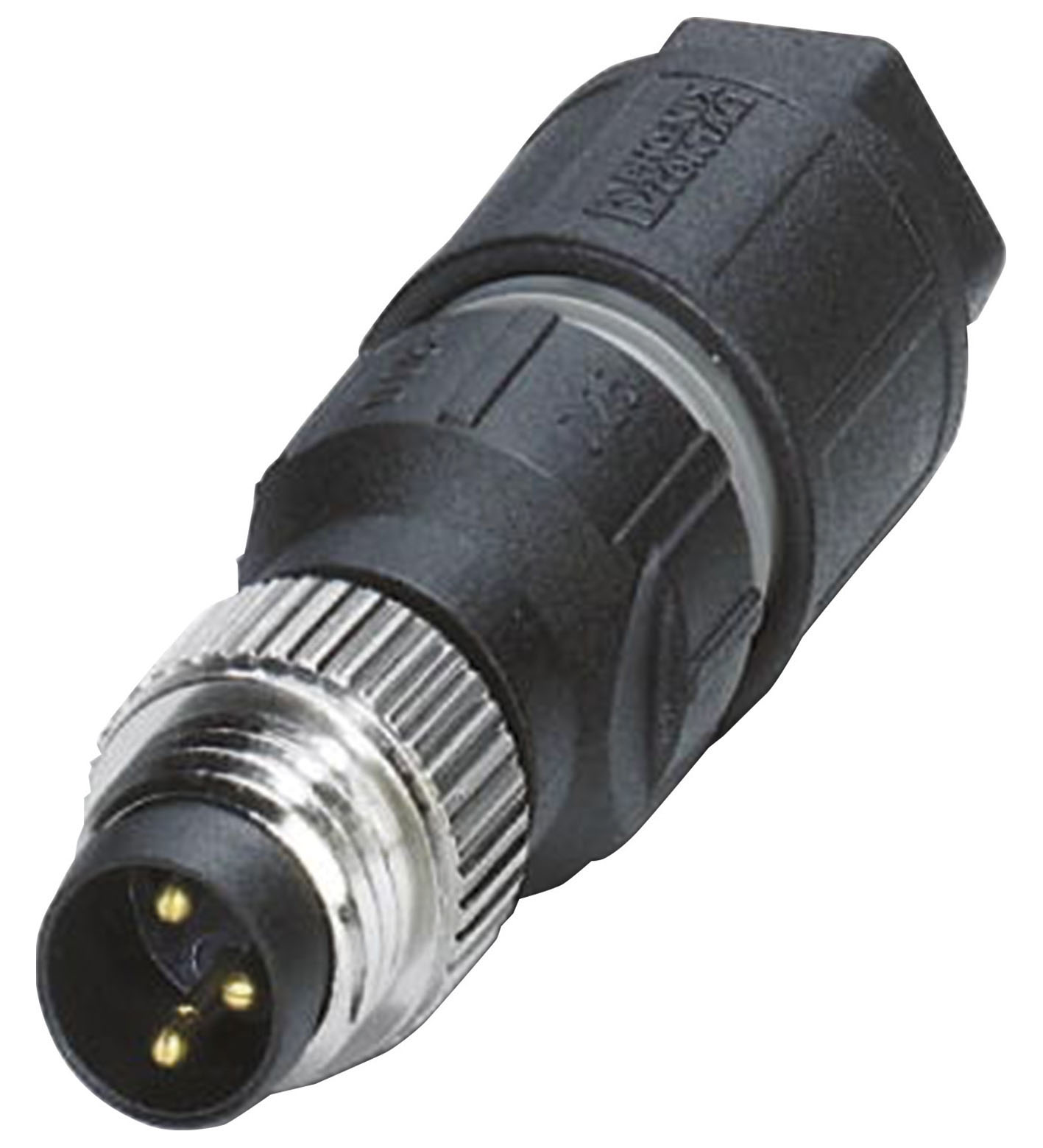

V3S-GM-Q4

Male connector, field-attachable. Male connector M8 straight A-coded 3-pin, for cable diameter 2,5 - 5 mm, field-attachable, insulation displacement connection. Connector 1: . ConnectionplugConstructi...

Male connector, field-attachable. Male connector M8 straight A-coded 3-pin, for cable diameter 2,5 - 5 mm, field-attachable, insulation displacement connection. Connector 1: . ConnectionplugConstruction typeM8StylestraightLockingscrew connectionNumber of pins3CodingA-coded: . Connection: plug. Construction type: M8. Style: straight. Locking: screw connection. Number of pins: 3. Coding: A-coded. Operating voltage: max. 48 V AC / 60 V DC. Operating current: max. 4 A. Volume resistance: < 5 mΩ. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. UL approval: E191152. Maximum permissible operating voltagemax. 29 V: . Maximum permissible operating voltage: max. 29 V. Ambient temperature: -25 ... 80 °C (-13 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.2 NmTool installationstraight knurlingMating cyclesmin. 100: . Tightening torque: 0.2 Nm. Tool installation: straight knurling. Mating cycles: min. 100. Degree of protection: IP65 / IP67. Connection: Insulation displacement connection for 0.25 ... 0.5 mm2 / AWG 24 ... AWG 20. Cable: . Sheath diameter2.5 ... 5 mmCoresCross-section: 0.25 ... 0.5 mm2: . Sheath diameter: 2.5 ... 5 mm. Cores: Cross-section: 0.25 ... 0.5 mm2. Mass: 8.2 g. Mounting: max. tightening torque on the coupling nut: ≤ 0.6 Nm. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyPA 66, blackSealNBRContact surfaceNi/AuFlammabilityHB: . Screw connection: Zinc diecast, nickel-plated. Body: PA 66, black. Seal: NBR. Contact surface: Ni/Au. Flammability: HB. Cable: . Core insulationPVC/PE/PP: . Core insulation: PVC/PE/PP

Brand	Pepperl Fuchs
Lifecycle status	active
