Pepperl Fuchs

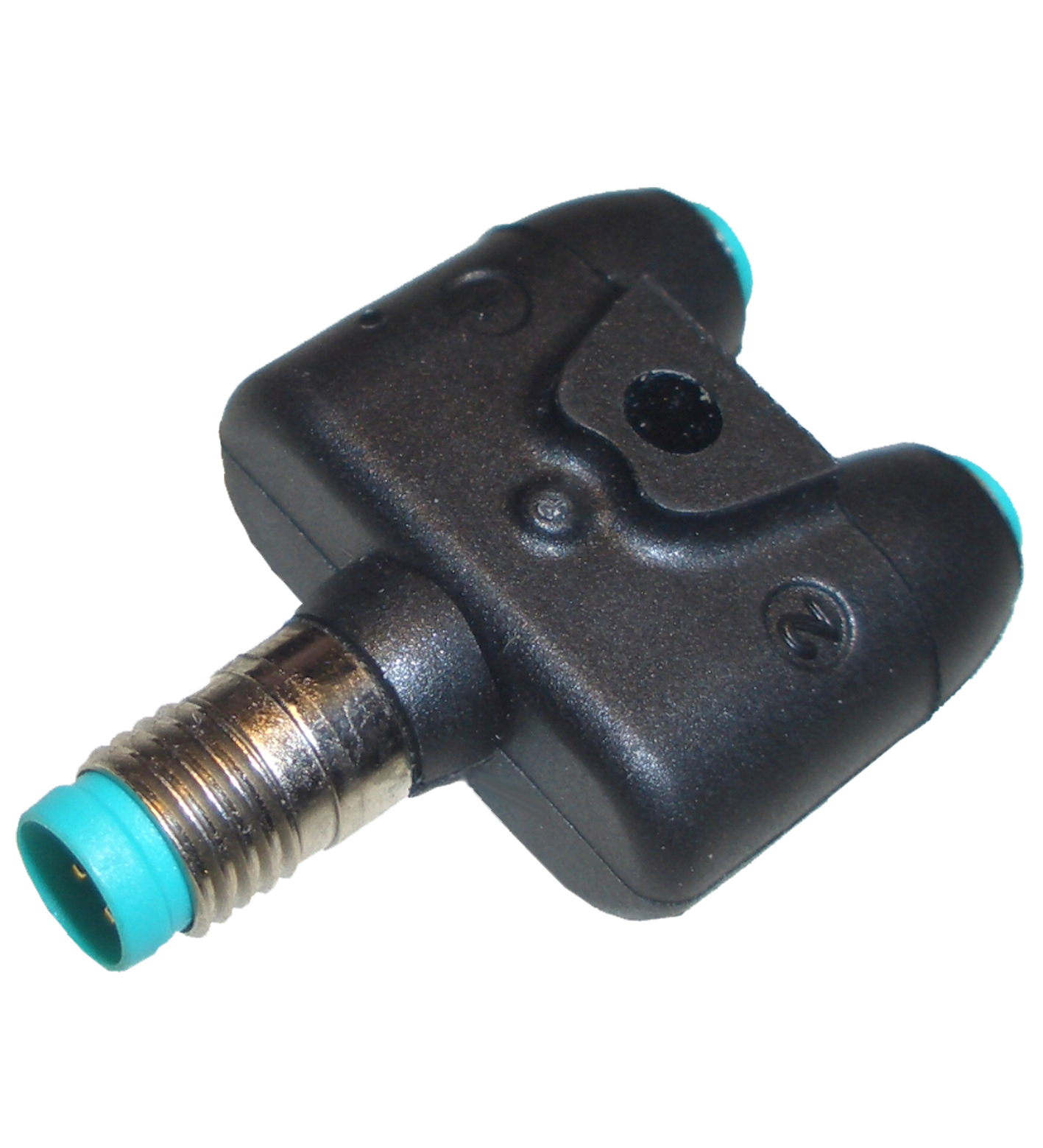

V3S-GR-YEE-V3/V3-GR

Y-Splitter. Y-Splitter M8 plug snap-lock 3-pin to 2x M8 socket snap-lock 3-pin, UL approved. Connector 1: . ConnectionsocketConstruction typeM8StylestraightLockingsnap lockingNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: straight. Locking: snap locking. Number of pins: 3. Coding: A-coded. Connector 2: . ConnectionsocketConstruction typeM8StylestraightLockingsnap lockingNumber of pins3CodingA-coded: . Connection: socket. Construction type: M8. Style: straight. Locking: snap locking. Number of pins: 3. Coding: A-coded. Connector 3: . ConnectionplugConstruction typeM8StylestraightLockingsnap lockingNumber of pins3CodingA-coded: . Connection: plug. Construction type: M8. Style: straight. Locking: snap locking. Number of pins: 3. Coding: A-coded. Operating voltage: max. 30 V AC/DC. Operating current: max. 3 A. Degree of protection: EN 60529. Plug connection: connector M8 x 1 : IEC 61076-2-104. Flammability: IEC 60332-1-2. UL File Number: E231213. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F). Pollution degree: 3. Plug connector: . Mating cyclesmin. 100: . Mating cycles: min. 100. Degree of protection: IP65. Mass: 10.67 g. Plug connector: . BodyTPU, blackContact surfaceAuFlammabilityV-0: . Body: TPU, black. Contact surface: Au. Flammability: V-0

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
