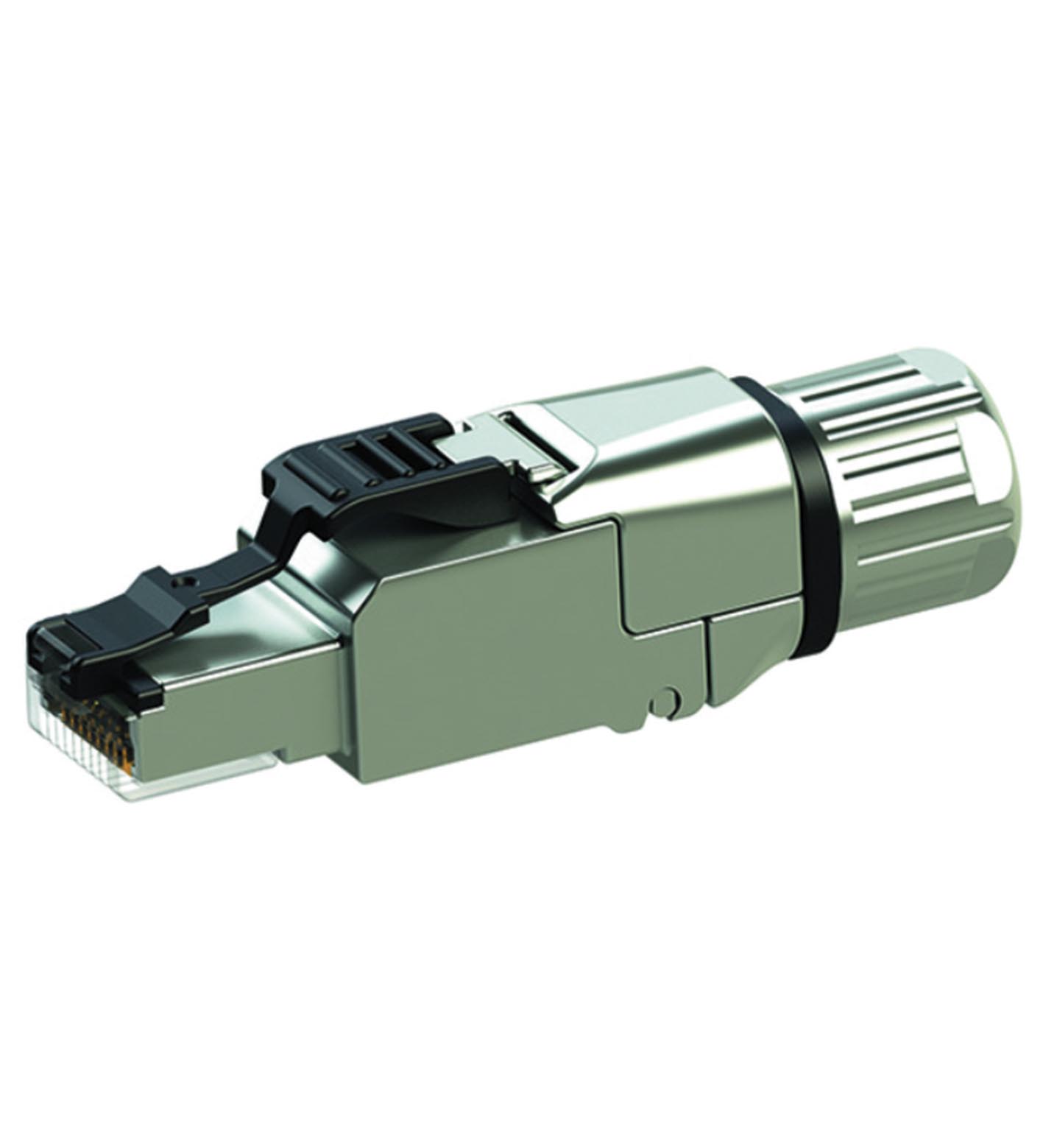

V45-G-ABG

Male connector, field-attachable. Male connector RJ45 straight 8-pin, Cat6A, shielded, field-attachable, insulation displacement connection. Connector 1: . ConnectionplugConstruction typeRJ45Stylestra...

Male connector, field-attachable. Male connector RJ45 straight 8-pin, Cat6A, shielded, field-attachable, insulation displacement connection. Connector 1: . ConnectionplugConstruction typeRJ45StylestraightLockingsnap lockingNumber of pins8: . Connection: plug. Construction type: RJ45. Style: straight. Locking: snap locking. Number of pins: 8. Operating voltage: max. 50 V AC / 60 V DC. Operating current: max. 1 A. Contact resistance: max. 20 mΩ. Insulation resistance: min. 500 MΩ. Degree of protection: EN 60529. Fieldbus standard: IEEE 802.3an 10GBASE-T. Transmission technology: suitable for PoE+ Power over Ethernet IEEE 802.3at. Plug connection: connector RJ45 : IEC 60603-7-51. Component category: CAT6A (IEC 11801, EN 50173). Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Plug connector: . Loosening protectionavailableMating cyclesmin. 750Shieldingvia Body: . Loosening protection: available. Mating cycles: min. 750. Shielding: via Body. Degree of protection: IP20. Connection: Wire manager included with delivery. Cable: . Sheath diameter5.5 ... 10 mmCore cross sectionsolid: 0.25 ... 0.34 mm2 (24 ... 22/1 AWG)stranded: 0.10 ... 0.34 mm2 (27 ... 22/7 AWG): . Sheath diameter: 5.5 ... 10 mm. Core cross section: solid: 0.25 ... 0.34 mm2 (24 ... 22/1 AWG)stranded: 0.10 ... 0.34 mm2 (27 ... 22/7 AWG). Mass: 35.59 g. Plug connector: . BodyZinc diecast, nickel-platedContact surfaceAu / Ni: . Body: Zinc diecast, nickel-plated. Contact surface: Au / Ni

Brand	Pepperl Fuchs
Lifecycle status	active
