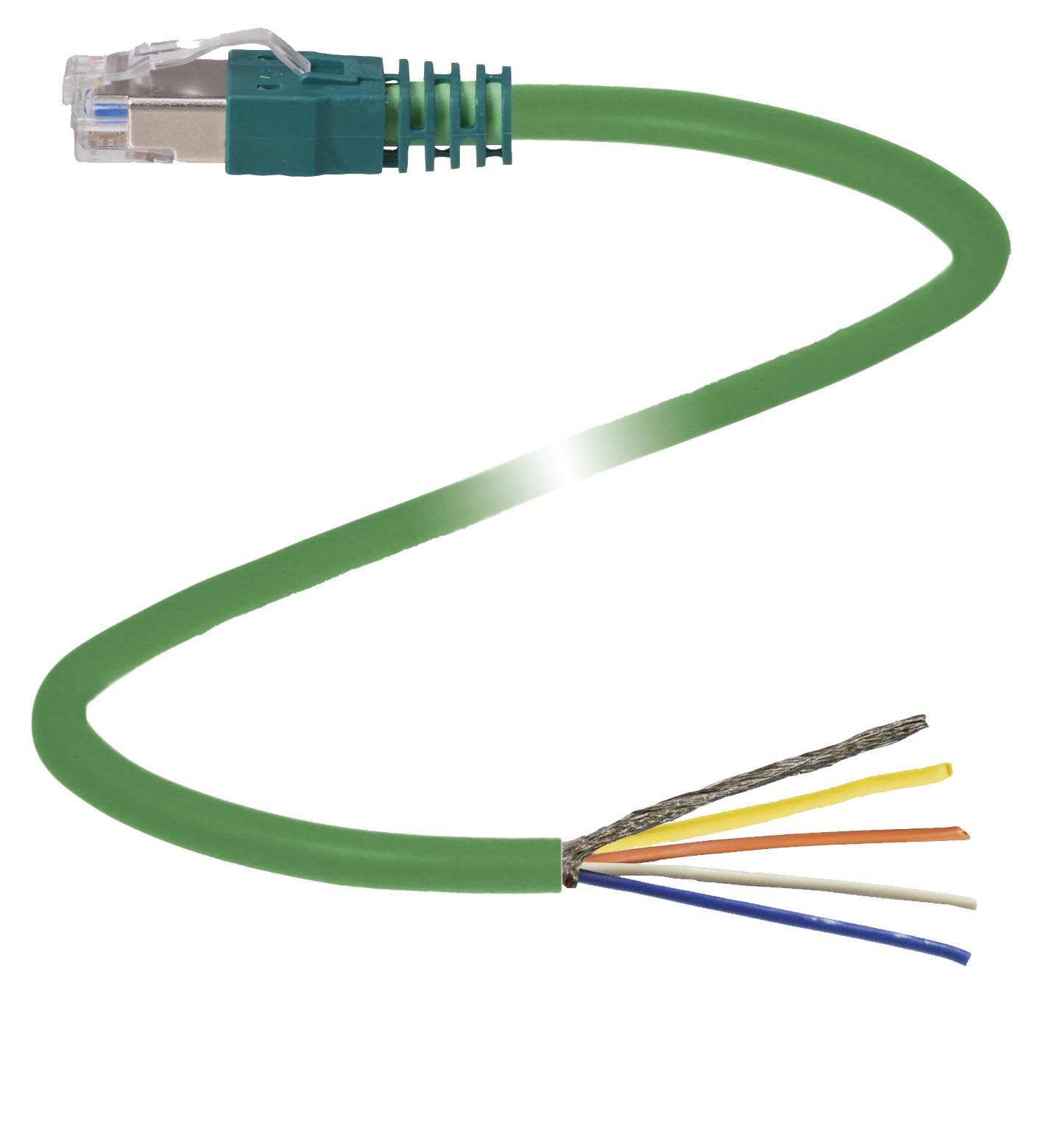

V45-G-C5-GN5M-PUR-E1S

Cable connector, Ethernet. Ethernet bus cable male cordset single-ended RJ45, 4-pin, PUR cable green, Cat5e, shielded, drag chain suitable. Connector 1: . ConnectionplugConstruction typeRJ45Stylestrai...

Cable connector, Ethernet. Ethernet bus cable male cordset single-ended RJ45, 4-pin, PUR cable green, Cat5e, shielded, drag chain suitable. Connector 1: . ConnectionplugConstruction typeRJ45StylestraightLockingsnap lockingNumber of pins8CodingPROFINET: . Connection: plug. Construction type: RJ45. Style: straight. Locking: snap locking. Number of pins: 8. Coding: PROFINET. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 48 V AC / 60 V DC. Insulation resistance: min. 100 MΩ. Degree of protection: EN 60529. Plug connection: connector RJ45 : IEC 60603-7. Component category: CAT5 (IEC 11801) , CAT5e (IEC 61156-6). Flammability: IEC 60332-1-2 / UL 2556 / ISO 6722-1 5.22 (UN ECE-R 118.01). Ambient temperature: . Cable, fixed installation-30 ... 70 °C (-22 ... 158 °F) , UL: -20 ... 70 °C (-4 ... 158 °F)Cable, flexing-20 ... 70 °C (-4 ... 158 °F): . Cable, fixed installation: -30 ... 70 °C (-22 ... 158 °F) , UL: -20 ... 70 °C (-4 ... 158 °F). Cable, flexing: -20 ... 70 °C (-4 ... 158 °F). Plug connector: . Loosening protectionavailableMating cyclesmin. 100Shieldingshield connected to connector: . Loosening protection: available. Mating cycles: min. 100. Shielding: shield connected to connector. Degree of protection: IP20. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter6 mmBending radius> 10 x cable diameter, movable installation > 8 x cable diameter, fixed installationSheath stripping forcemax. 60 N / 100 mmSheath colorgreen (similar to RAL 6018)Number of cores4Core cross section0.34 mm2 / 22 AWGCores colorCore 1: yellow Core 2: orange Core 3: white Core 6: blueCore construction7 x 0.254 mm ∅ twisted quadShieldaluminum-lined polyester foilTinned copper braidingLengthL5 m: . Sheath diameter: 6 mm. Bending radius: > 10 x cable diameter, movable installation > 8 x cable diameter, fixed installation. Sheath stripping force: max. 60 N / 100 mm. Sheath color: green (similar to RAL 6018). Number of cores: 4. Core cross section: 0.34 mm2 / 22 AWG. Cores color: Core 1: yellow Core 2: orange Core 3: white Core 6: blue. Core construction: 7 x 0.254 mm ∅ twisted quad. Shield: aluminum-lined polyester foilTinned copper braiding. Length: 5 m. Drag chain suitability: . Drag chain cyclesmax. 1000000Motion velocitymax. 3 m/sTraverse distancemax. 5 mAccelerationmax. 2 m/s2: . Drag chain cycles: max. 1000000. Motion velocity: max. 3 m/s. Traverse distance: max. 5 m. Acceleration: max. 2 m/s2. Mass: 275 g. PWIS free: yes. Halogen-free: yes. Plug connector: . BodyPA, greenFlammabilityV-0: . Body: PA, green. Flammability: V-0. Cable: . SheathingPUR based on polyetherCore insulationPPFlammabilityFT2 complies with UN ECE-R 118.01: . Sheathing: PUR based on polyether. Core insulation: PP. Flammability: FT2 complies with UN ECE-R 118.01

Brand	Pepperl Fuchs
Lifecycle status	active
