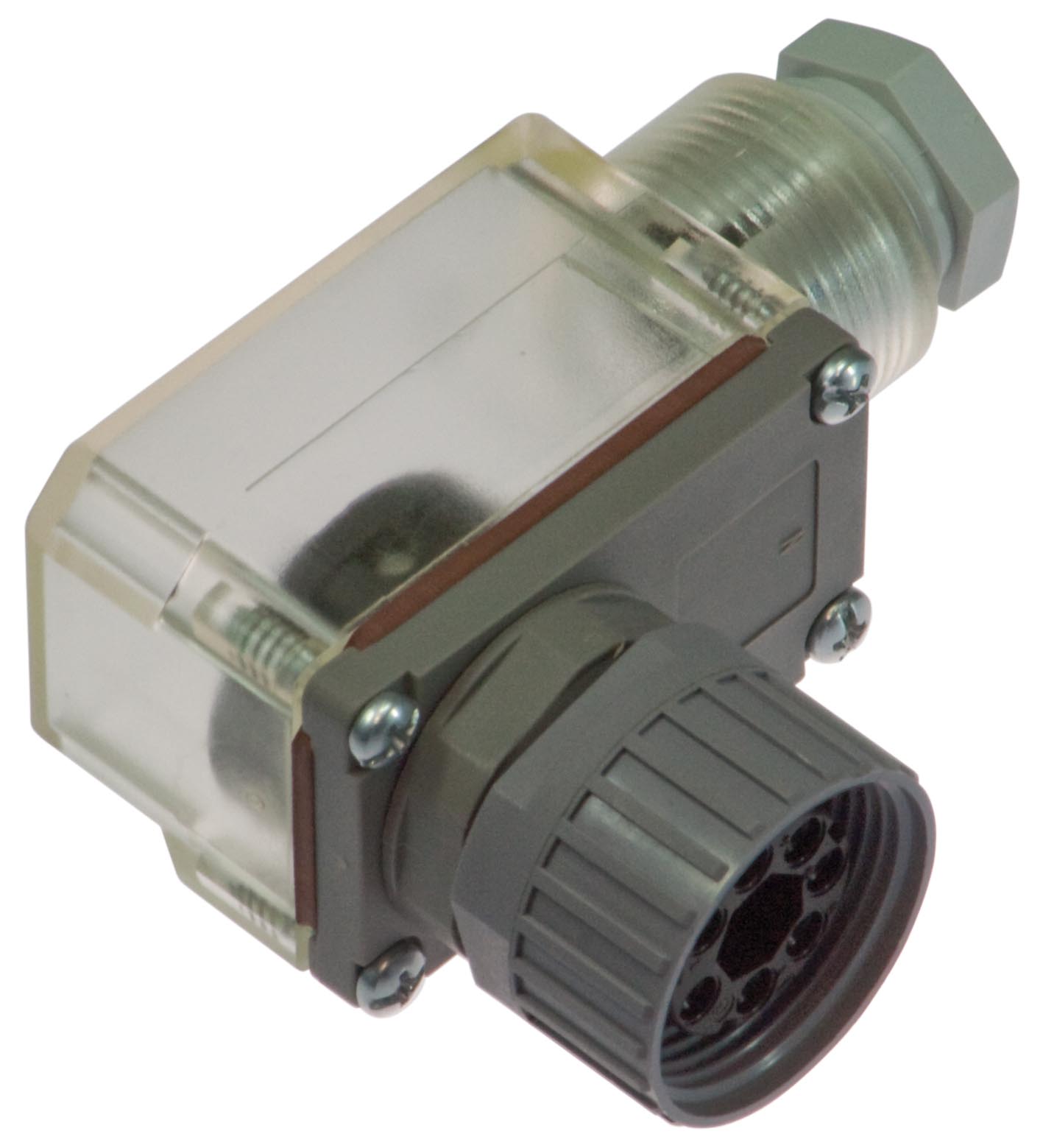

V7-W

Female cordset, field attachable. Female connector, 6-pin+PE, field attachable. Number of pins: 6 + PE. Connection 1: socket. Construction type 1: angled. Color: grey. Operating voltage: max. 253 V AC...

Female cordset, field attachable. Female connector, 6-pin+PE, field attachable. Number of pins: 6 + PE. Connection 1: socket. Construction type 1: angled. Color: grey. Operating voltage: max. 253 V AC/DC. Operating current: max. 10 A. Volume resistance: < 5 mΩ. Standard conformity: . Insulation coordinationDIN EN 60664-1Degree of protectionIEC 60529StandardsDesign standard DIN EN 175201-804: . Insulation coordination: DIN EN 60664-1. Degree of protection: IEC 60529. Standards: Design standard DIN EN 175201-804. Ambient temperature: -40 ... 90 °C (-40 ... 194 °F) note derating. Contact elements: spring-loaded contact socket. Degree of protection: IP65. Connection: screw terminals 0,5 ... 1.5 mm2 PG11 cable gland. Material: . ContactsCuZnContact surfaceAgHousingPA 6 GF30 cover PA TBodyPETSlotted nutPA 66SealNBRMounting screwPA 6 GF: . Contacts: CuZn. Contact surface: Ag. Housing: PA 6 GF30 cover PA T. Body: PET. Slotted nut: PA 66. Seal: NBR. Mounting screw: PA 6 GF. Cable: . Sheath diameter7 mm ... 9 mm: . Sheath diameter: 7 mm ... 9 mm. Mass: 72 g. Flammability: Enclosure: UL 94 HBcontact carrier: UL 94 V-0cover: UL 94 HBpressure screw: UL 94 HBcoupling nut UL 94 V-2

Brand	Pepperl Fuchs
Lifecycle status	active
