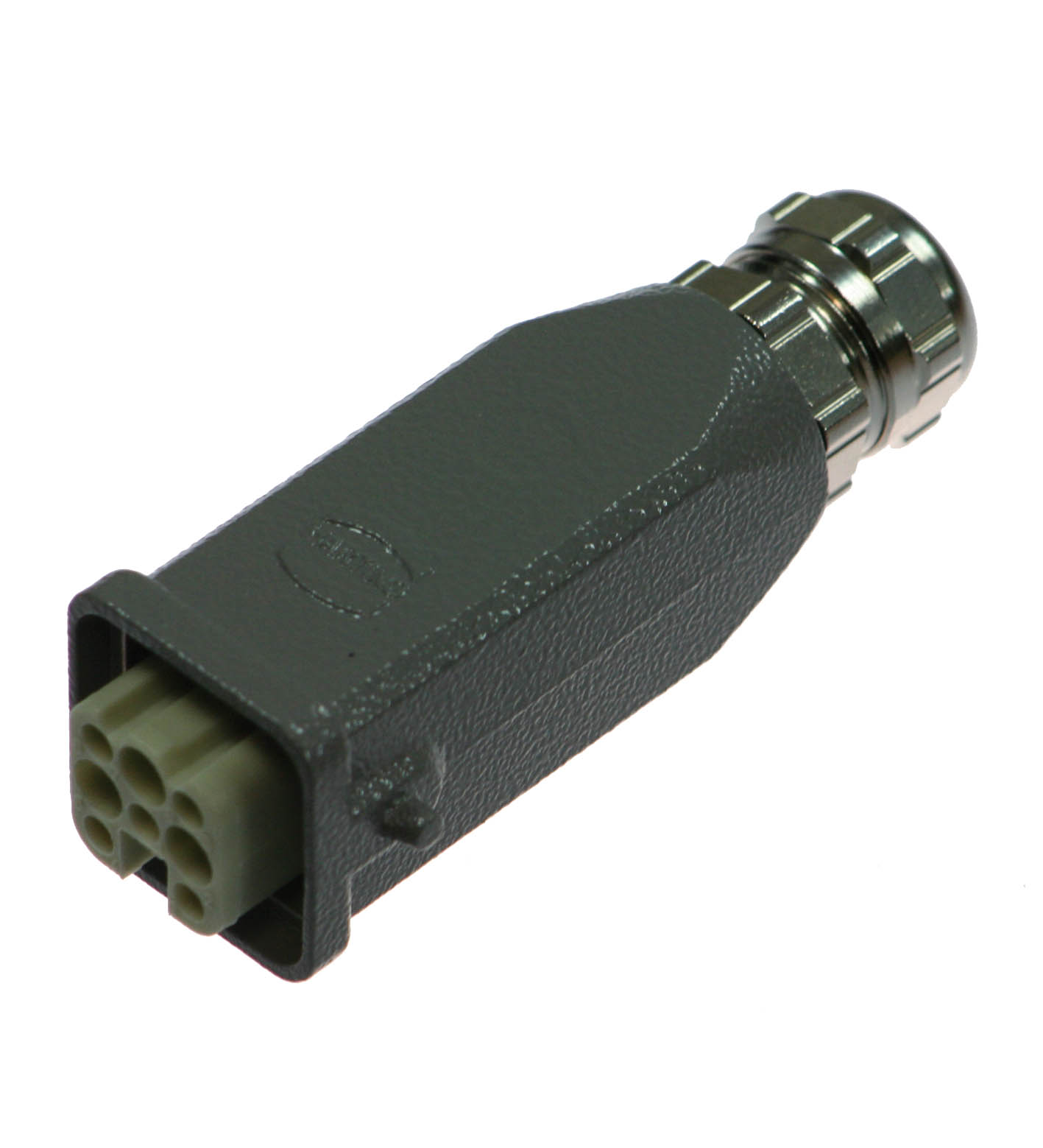

V8HAN-G

Female cordset, field attachable. Female connector, Harting, 8-pin, field attachable. Number of pins: 8. Construction type: Socket, straightHarting Han 8D, size 3 A. Connection 1: socket. Construction...

Female cordset, field attachable. Female connector, Harting, 8-pin, field attachable. Number of pins: 8. Construction type: Socket, straightHarting Han 8D, size 3 A. Connection 1: socket. Construction type 1: straight. Rated operating voltage: 230/400 V. Operating voltage: 50 V. Operating current: 10 A. Volume resistance: < 3 mΩ. Standard conformity: . Degree of protectionEN 60529: . Degree of protection: EN 60529. Ambient temperature: -40 ... 125 °C (-40 ... 257 °F). Pollution degree: 3. Pin diameter: 1 mm. Degree of protection: IP65. Connection: 8 jacks, Harting 8 D Crimp connection for max. ∅1.1 mm, 8 mm stripped insulation PG11 cable gland. Material: . ContactsCu alloyContact surfaceAuBodyaluminum and polycarbonate: . Contacts: Cu alloy. Contact surface: Au. Body: aluminum and polycarbonate. Mass: 119 g. Flammability: . Housing94 V-0: . Housing: 94 V-0

Brand	Pepperl Fuchs
Lifecycle status	active
