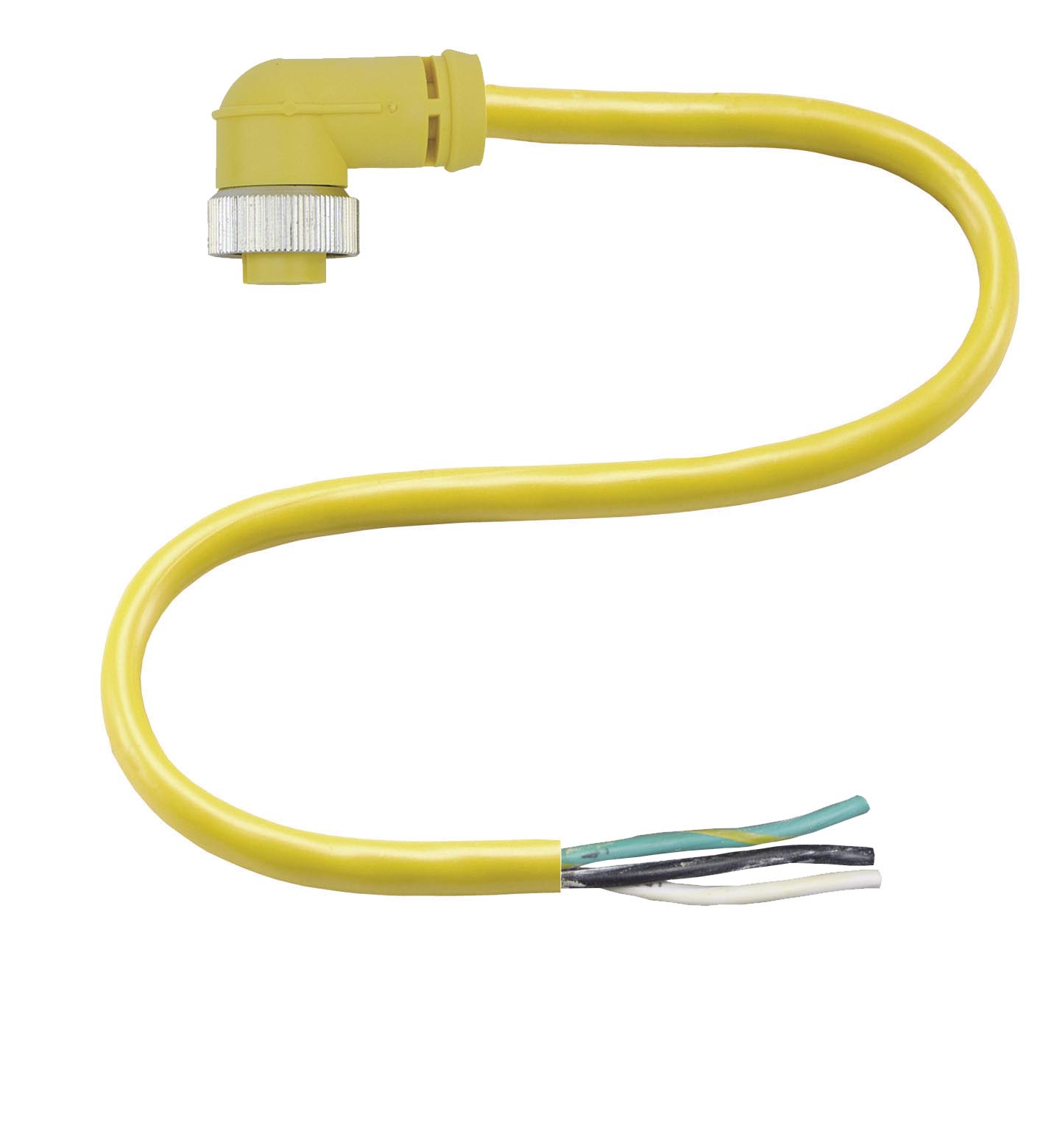

V93-W-YE10M-STOOW

Female connector. Female cordset, 7/8", 3-pin, STOOW cable. Number of pins: 3. Connection 1: socket. Construction type 1: angled. Threading 1: 7/8 inch. Connection 2: cable end. Operating voltage: max...

Female connector. Female cordset, 7/8", 3-pin, STOOW cable. Number of pins: 3. Connection 1: socket. Construction type 1: angled. Threading 1: 7/8 inch. Connection 2: cable end. Operating voltage: max. 600 V. Test voltage: 1500 V. Operating current: 13 A. Volume resistance: < 5 mΩ. UL approval: cULus Listed, General Purpose. Ambient temperature: -40 ... 105 °C (-40 ... 221 °F). Degree of protection: IP67. Material: . ContactsCu alloy gold platedBodyPVC, yellowCablePVCSlotted nutnickel-plated brassCore insulationPVC: . Contacts: Cu alloy gold plated. Body: PVC, yellow. Cable: PVC. Slotted nut: nickel-plated brass. Core insulation: PVC. Cable: fine-strand, flexible. Sheath diameter∅ 9.9 mmBending radius10 x cable diameterColoryellowCores3 x 1.5 mm2 (16 AWG)LengthL10 m: . Sheath diameter: ∅ 9.9 mm. Bending radius: 10 x cable diameter. Color: yellow. Cores: 3 x 1.5 mm2 (16 AWG). Length: 10 m. Mass: 1355 g. Note: STOOW UL Standard

Brand	Pepperl Fuchs
Lifecycle status	active
